Section 2: Installation

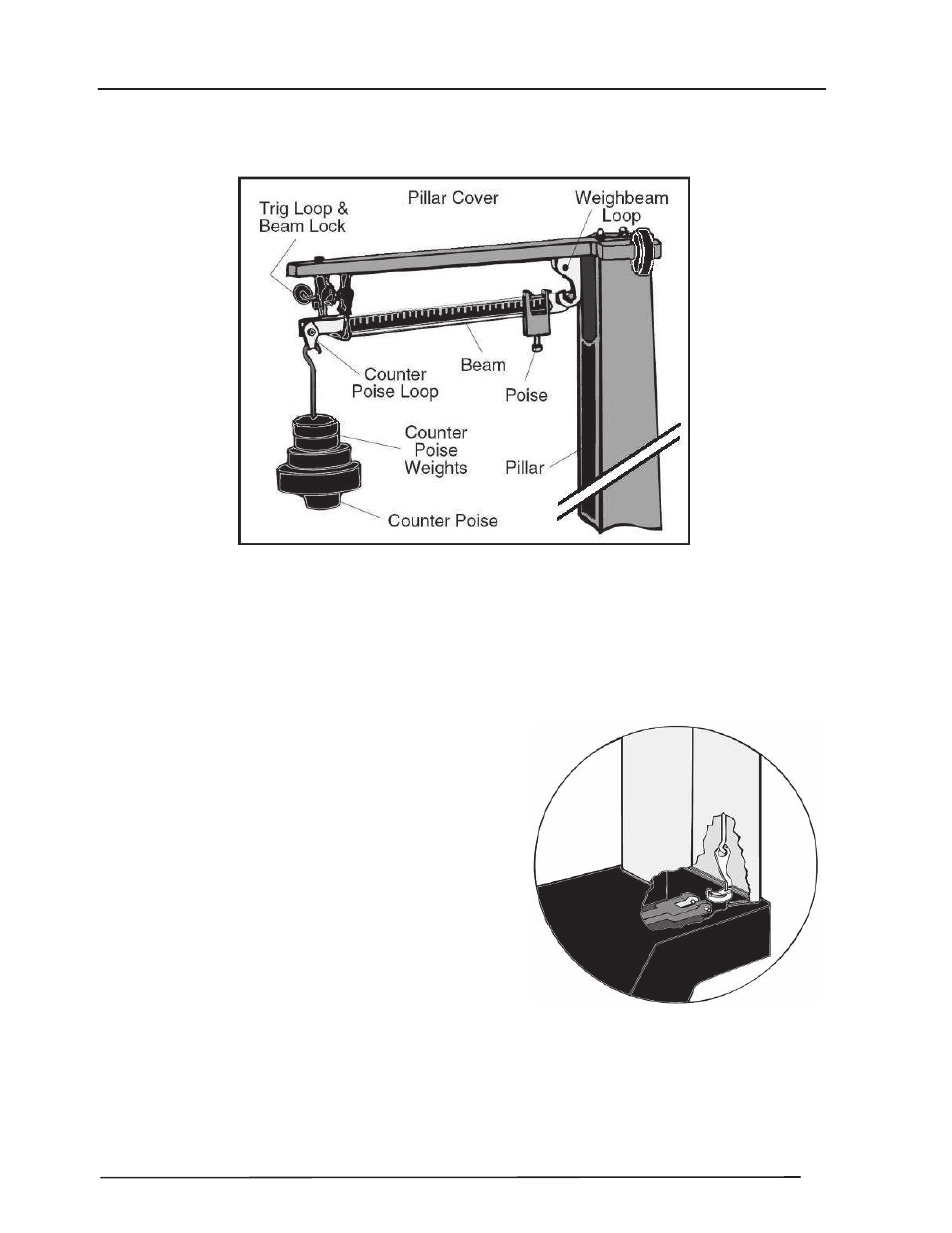

Pillar and Beam Assembly
1. Thread the two (2) Pillar Support Rods (
#1
) into the tapped holes provided in the base.
• The end with the longer thread should fit into the platform (about 1⁄2 inch).
2. Place the Pillar (
#2
) down over the support
rods with the pillar cut-outs facing the right and
left of the platform.
3. Insert the Steelyard Rod (
#35
) down through
the pillar.
• The bent hook on top; the loose Swivel
Hook on the bottom.
• The hook opening should be toward the
platform when properly placed.
•
DO NOT
remove the washers from the
Steelyard Rod.
4. Hook the Steelyard Rod (
#35
) to the Long
Lever Tip Pivot (
#34
).
• Temporarily, hook the upper end of the
Steelyard Rod on the pillar cut-out.
Hook the Steelyard Rod to the
Long Lever Tip Pivot.
