Page 12
Section 2: Installation
Base Assembly
NOTE:
The following descriptions refer to “
Key#
” (#4, etc.) to describe parts. Use the
parts list and Key# in the list to identify all such parts.

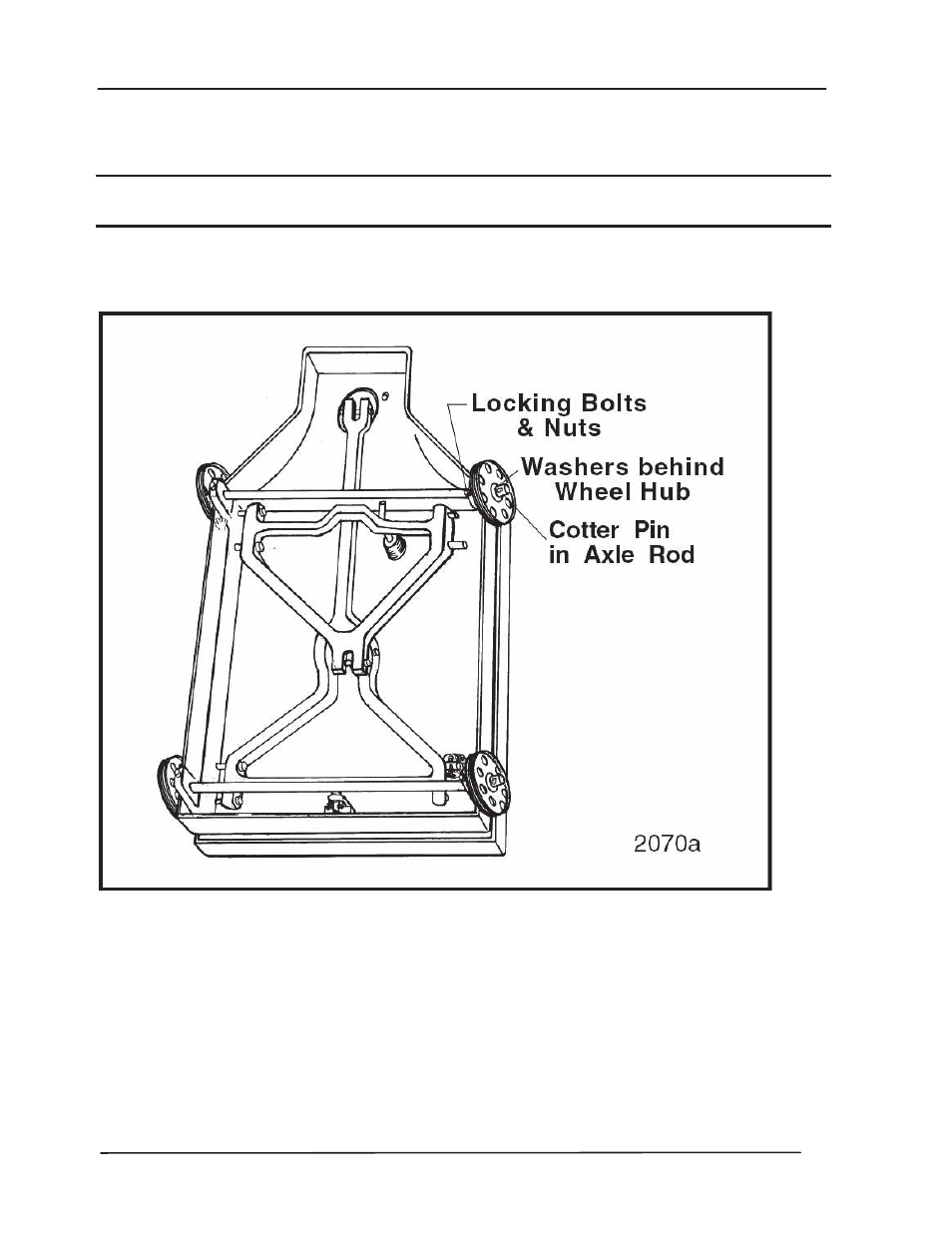

1. Place the
Platform Sub Assembly
on the floor upside-down, preferably on 2x4
blocks to raise it up off the floor, if possible.
2. Remove the cotter pins and washers from one side of the Axle Rod (
#19
).
• Axle assembly includes an affixed cotter pin (
#17
), a 5” wheel (
#16
), and then
a flat washer (
#18
).
3. Insert the Axle Rod Assembly through the two axle rod holes, side-to-side.
4. Place one flat washer (
#18
), then a wheel (
#16
) over the other end.
03/13 12
50699
Rev.
4
