2-38 Chapter 2: Hardware information
9. USB connector (10-1 pin USB34)
This connector is for USB 2.0 ports. Connect the USB module cable to
this connector, then install the module to a slot opening at the back of the
system chassis. This USB connector complies with USB 2.0 specification that
supports up to 480 Mbps connection speed.
The USB port module is purchased separately.
®

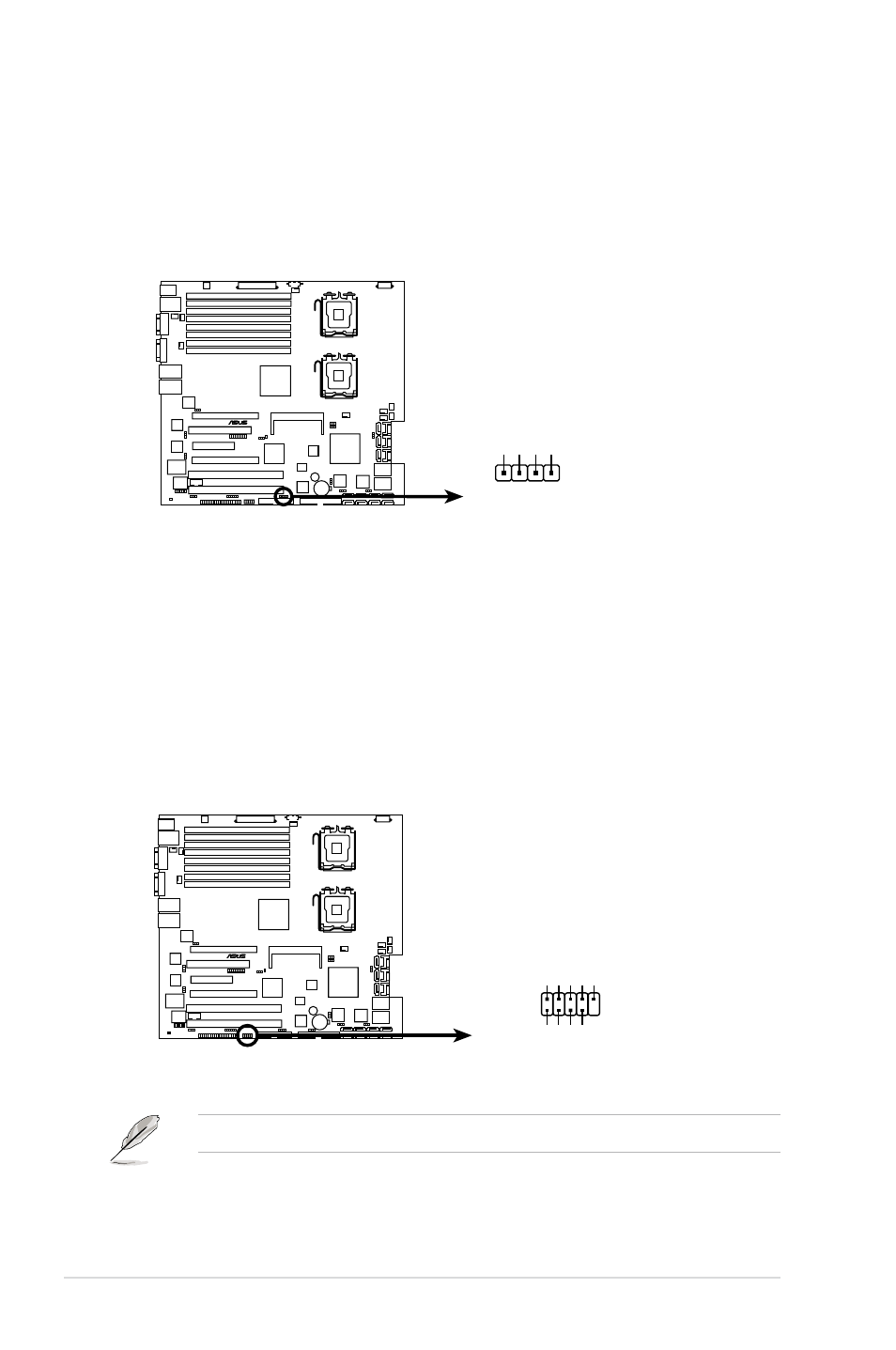

DSEB-DG Series USB connector
USB34
PIN1
Power
USB PortA(-) USB PortA(+
)
GND
Power USB PortB(-) USB PortB(+
)
GND NC
8. Hard disk activity LED connector (4-pin HDLED1)
This connector is used to connect to a hard disk drive active LED connector
on the SCSI or RAID card.
®
DSEB-DG Series storage card activity LED connector
HDLED1
PIN1
ADD_IN_CARD- NC NC ADD_IN_CARD-
