10

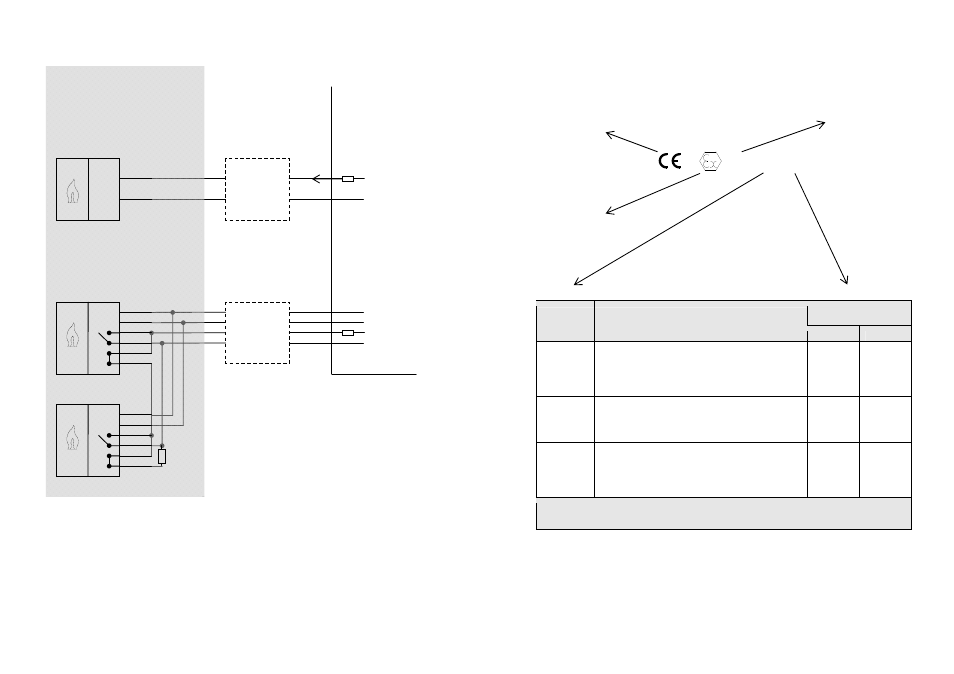

Exd System Drawing






i

Refer to note 4

-

+

NOTE 3
The installation must comply with national installation
requirements (for example to EN 60079-14)

Hazardous Area

2

1

-

+

Flame Detector

Safe Area

Safe Area Apparatus


Unspecified except that it
must not be supplied from
nor contain under normal or
abnormal conditions a source
of potential exceeding 250V
RMS or 250V DC with
respect to earth.

24V DC Normal

(Break supply to reset

if detector set to latch)

i

= See detector data

sheet for details

Fault
Relay

Fire
Relay

2

1

-

+

Flame Detector

6

5

7
8

Fault
Relay

Fire
Relay

2

1

-

+

Flame Detector

6

5

7
8

EO

L

24V DC Normal

(Break supply to reset

if detector set to latch)

Zone

No

Barriers

Required

+

-

-

+

NOTE 1
WARNING – Ensure ALL power is OFF before/during
installation/maintenance.

NOTE 2
Ensure the details on the enclosure label comply with
the hazardous area specified.

No

Barrier

Required

+

-

NOTE 4
If required a loading resistor or end of line device (EOL)
can be connected between the detector terminals of any
circuit. The total power dissipation and temperature
classes within the enclosure must not be exceeded,
30W – T4.

NOTE 5
The 24Vdc supply line to the detectors should be fused
at 1A.

+

-

-

+

3


Equipment Markings


ATEX

(EU Directive 94/9/EC)




II 2 G D












Equipment

Category


Definition – ATEX Equipment Group II

Zone

G -

gas

D

- dust

1

- very high level of protection

in which explosive atmosphere mixtures of air gases,
vapours or mist are present continuously, for long
periods

0 20

2

- high level of protection

in which explosive atmosphere mixture of air and gases,
vapours or mist are likely to occur

1 21

3

- normal level of protection

in which explosive atmosphere mixtures of air and
gases, vapours or mist are unlikely to occur and if it
occurs it will exist only for a short period

2 22

These Flame Detectors are suitable for equipment categories 2 and 3, G or D.

Note: The detectors are not certified for category 1 areas, see ‘IS’ products.


Table 1 Equipment Categories and Type of Explosive Atmosphere (Group II)



CE Marking
&
Notified Body
Number

EU Explosive
Atmosphere
Symbol

Group II

1180
