4.1 Controller
4.1.1 Size and Dimensions.
(10.6") 270 mm Depth
(11.2") 285 mm Height
(3.7") 93 mm Width
4.2 kg Weight
Bottom 2 places Slot
Top 2 places Slotted hole Mounting

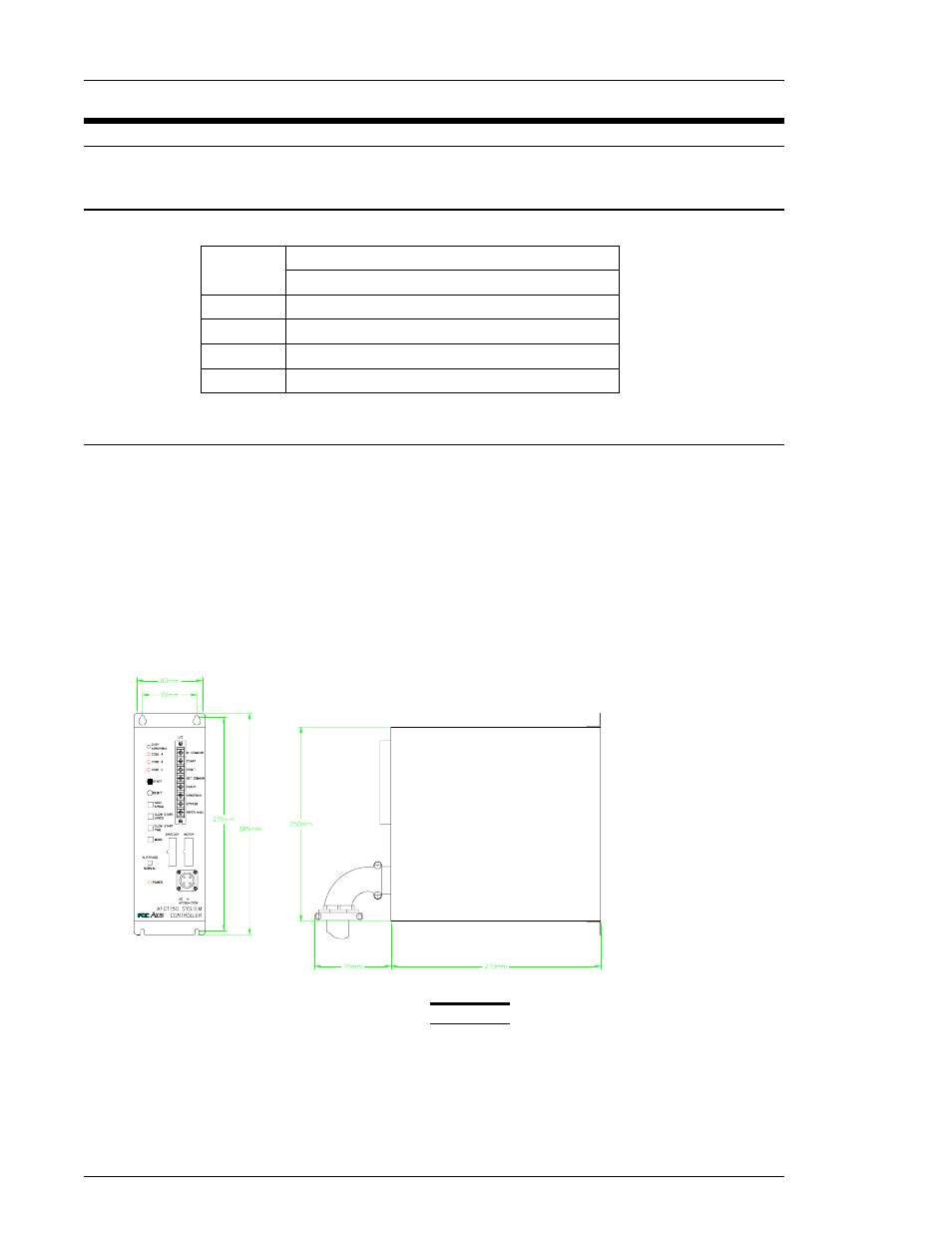

4.1.2 Mounting Requirements - Layout
w Use the following guidelines and diagrams to layout the controller mounting area:
P Clearance of at least 25 mm (1.0") on each side of the controller for radiating heat.
P Clearance of least 100 mm (4.0") below the controller for wiring.
P A clear window on the enclosure door is recommended for viewing the LED's.
P Controller depth is 270 mm (10.6"), and another 75 mm (3.0") of clearance is
required for connectors. An enclosure depth of at least 450 mm (18.0") is
recommended.
Fig. 4.1.2-A
NOTE: The controller width of 93 mm (3.7") does not include the screw projections. There is
approximately 4 mm (.016") of projection from the right side.
CHAPTER 4: INSTALLATION AND WIRING
Page 4 - 2
