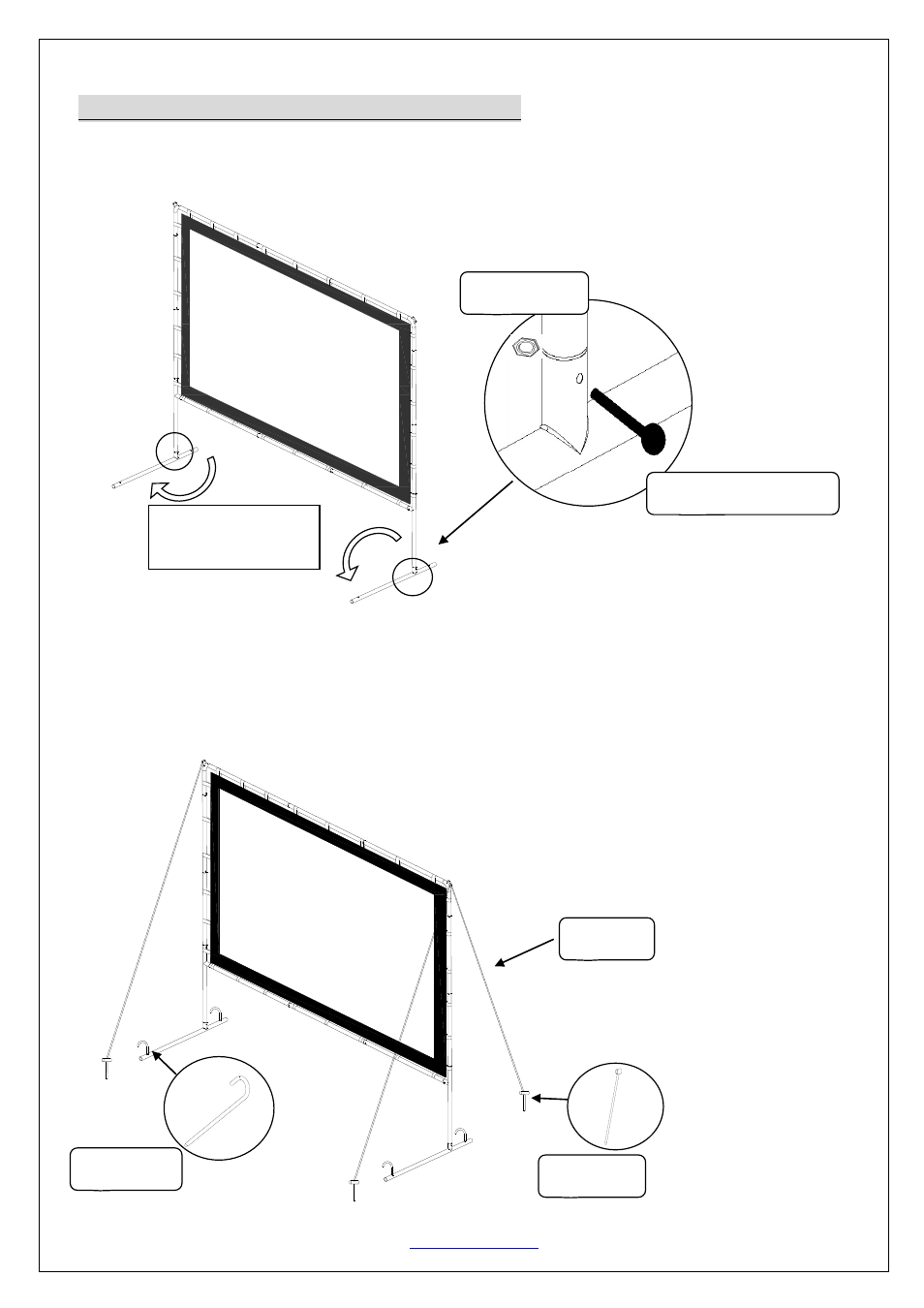

Step 4: Final assembly and support system set up
1. Stand the frame upright, and rotate the legs (A) and (J) 90 degrees and insert the hexagonal screws.
Secure using the M6 hex nut (I) place.
2. Ensure that the ring-stakes and guy rope are properly used to safely secure the screen to the ground during
use.
3. Drive the Curved Stakes (G) through each hole on the ends of the legs.
4. Drive the Ring-Stakes (H) to the ground and attach a Guy-Rope on each side add additional support and
stability.
Ring stake
Curved Stake
Guy rope
A
J
M6hexagonal screw
M6 hex nut
Legs
A
and
J
are
to
be
rotated
90
degrees.
