Elite Screens Yard Master(Rear) - Manual (Page 2)

043014-­‐JA
www.elitescreens.com
2

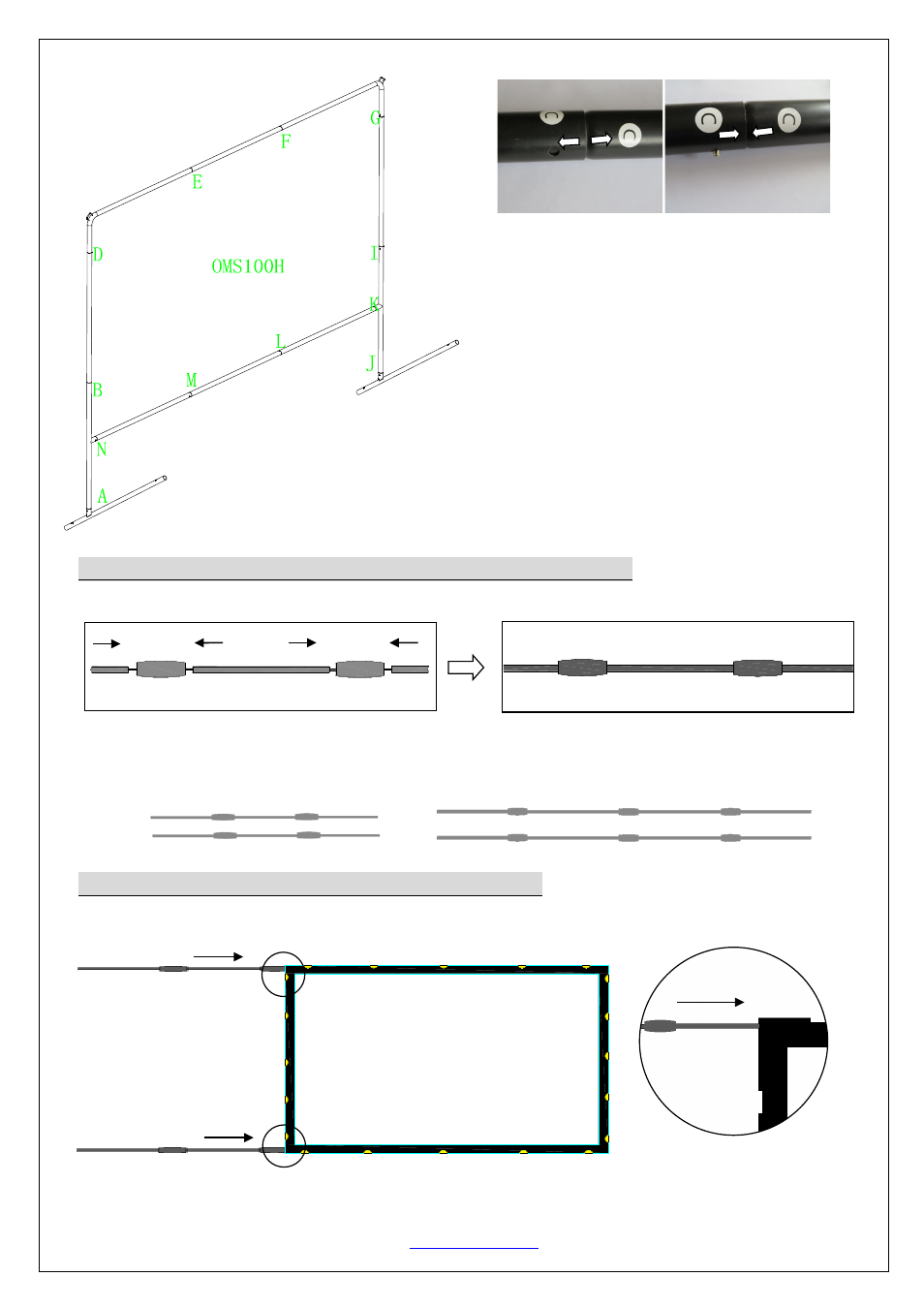

Step 2: Screen Material Frame Assembly (Fiber glass poles)
1. Join the Fiber Glass Pole to form a straight support rod as shown in the diagram below.
2. Repeat until all four rods have been formed; two vertical and two horizontal rods.
Step 3: Attaching the screen material to the frame
1. Insert the horizontal support rods into the top and bottom sleeves of the screen material.
Horizontal Support Rod x2
Horizontal
support
rod
Horizontal
tension
rod
Vertical Support Rod x 2
3. After the frame has been built, lay it on a clean
scratch-free area.
