3

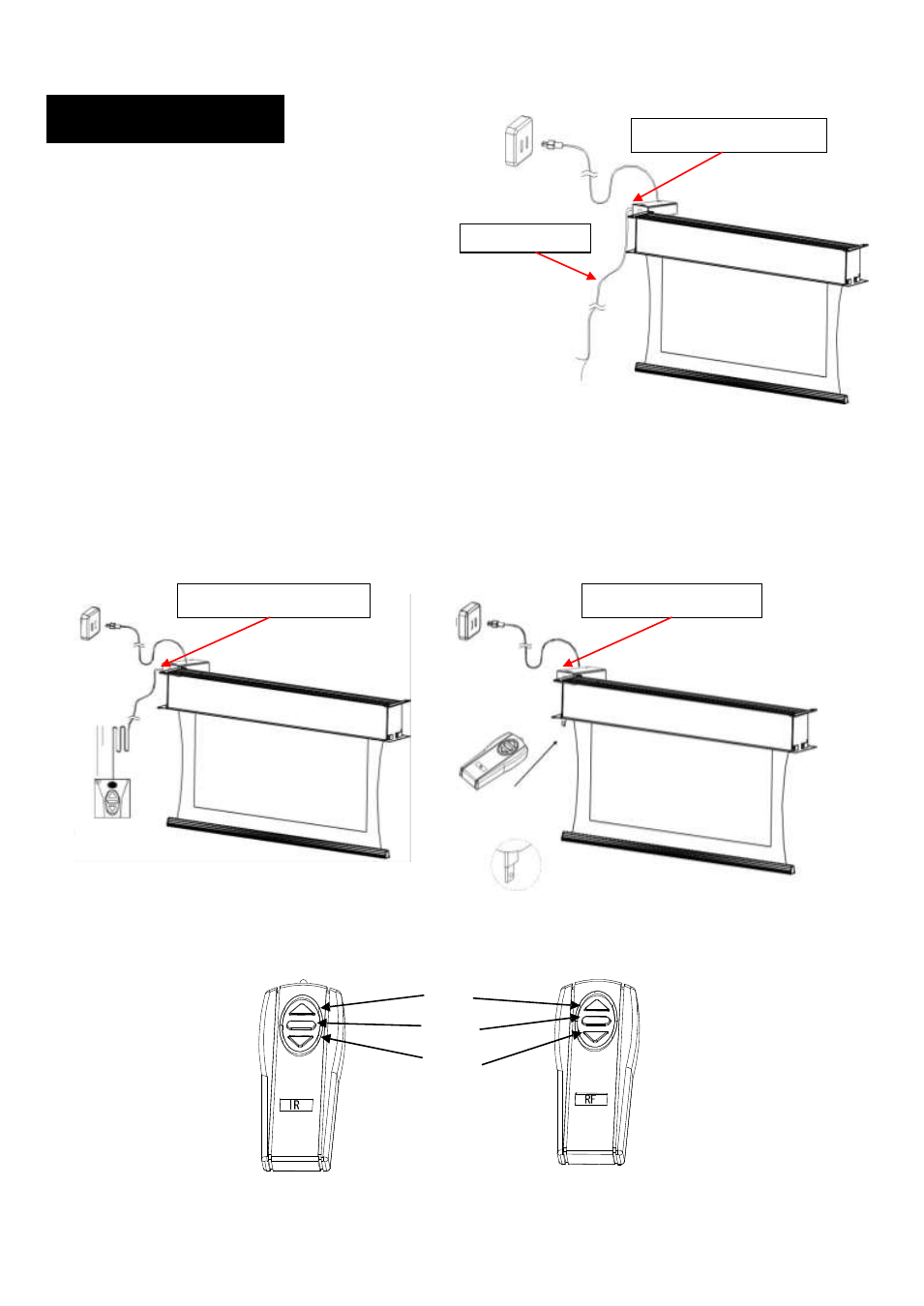

1. 5-12V Trigger: The built-in 5-12V trigger input for
your new Evanesce Tension allows your screen to
synchronize its drop and rise with the projector's power
cycle. The screen drops when the projector powers up and
retracts when the projector powers down. The 5-12 volt
adaptor connects to your projectors trigger output via a
separate cable that may or may not be provided by the
projector manufacture. The trigger feature will not work
without an output cable from the projector, but it can be
tested using a 9-volt battery by simply connecting the Red
(+) and Green (-) cable to the 9-volt battery.
2. 3-way switch and IR (Infrared) Eye Receiver: The 3-way Wall Box switch enables the consumer to manually
operate the screen's drop/rise capabilities. The IR “eye” protrudes from the bottom of the casing to present a low profile
line-of-sight control option for your IR remote. It is a low-visibility alternative to using the 3-wall switch and its ability to
protrude from the bottom of the screen allows line-of-sight control even in a recessed ceiling installation.
Both accessories require connection to the RJ-45 port and can only be used one at a time.
Wall-mounted
manual 3-way
switch
3. Infrared (IR) and Radio Frequency (RF) Remote Controls: Although the IR remote requires a direct line of sight
with the IR sensor to function, the screen’s case can be hidden from sight and operated using the RF remote. When
depressing the directional buttons you should hear a faint click signifying that the mechanism is working properly.
UP
Stop
Down
This is the RF remote with a
range of 100 Ft.
Requires 2x AAA batteries.
This is the IR remote
with a range of 25 Ft.
Requires 2x AAA batteries.
** Please remember to always point to the wall switch receiver when using the IR remote. The IR remote can also work with a
Universal Learning Remote Control usually by programming the Screens IR codes into your Universal Learning Remote.
Control System
To Projector
Red DC 12V
Green 0V
Sensor
RJ-45 input for 5-12 v trigger
5-12V RJ-45 cable
RJ-45 input for IR receiver RJ-45 input for 3-way switch
