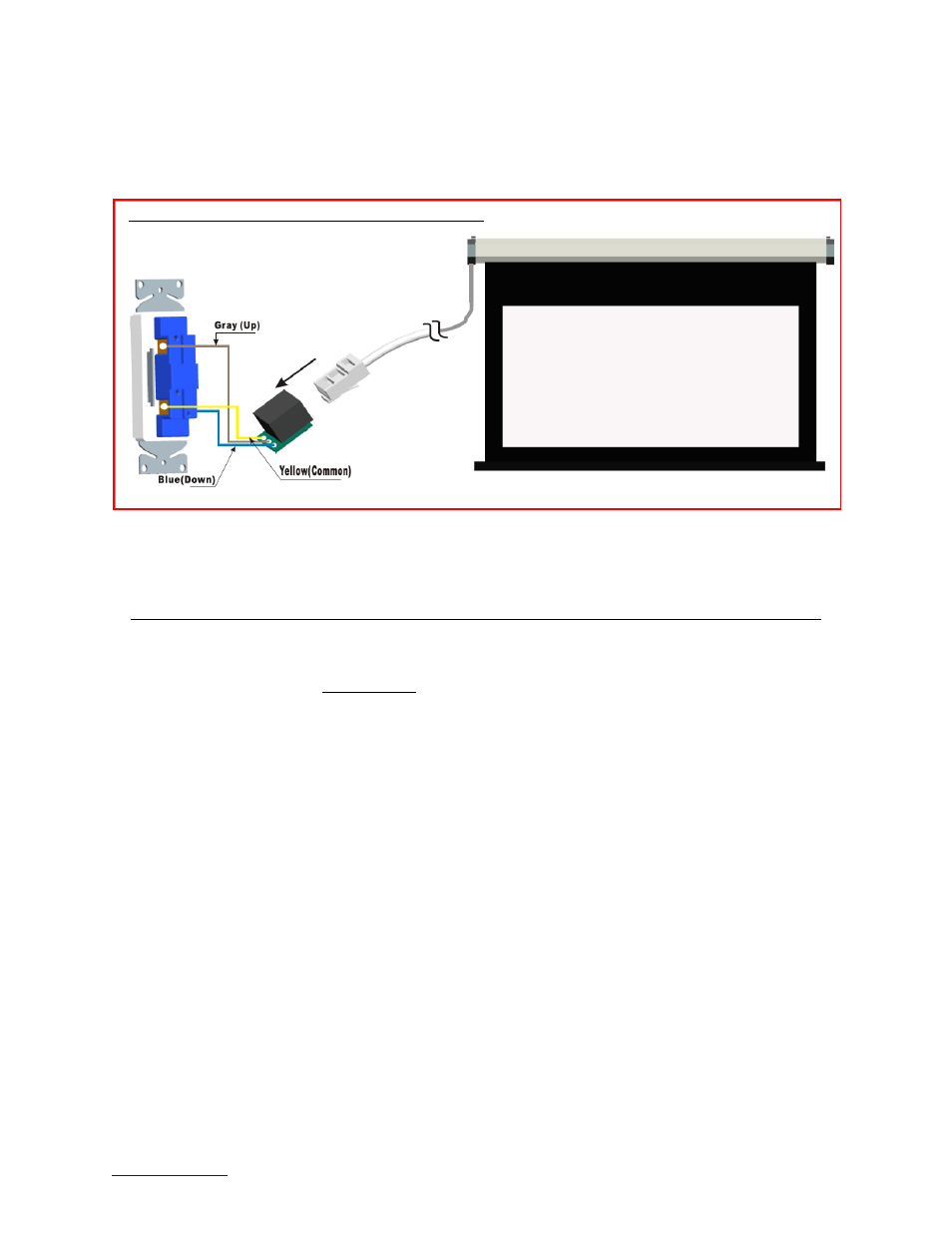

6. In-Wall RJ-45 Module: The RJ-45 Module connects to a local wall switch for UP/Down control of your
screen. Please follow the picture diagram below for instructions on how to connect the accessory.
Steps to attach Elite Screens Motorized Screen to your local wall switch
1. Attach Elite Screens ZIW-Module (in-wall switch module) to your local wall switch as
shown in diagram above.
2. Attach an RJ-45 Ethernet cable (not included) to the ZIW-Module and the other end to
the RJ-45 input on your Elite electric screen.
3. After testing the connection, place the in-wall switch module in or on the wall and wire
the Ethernet cable to complete the set up.
NOTE:
Please be aware that Ethernet cables have length limitations so please make test before
concealing the cable into the wall.
Elite Screens In-Wall Switch Module ( ZIW-Module )
Ethernet (RJ45) network
cable (not included)
Local Wall Switch In-Wall UP/DOWN Switch Module (ZIW-Module) Elite Electric Motorized Screen
