Welch Vacuum 2028 Self-Cleaning Dry Vacuum System - Manual (Page 24)

Section 8: DRAWINGS, PARTS LISTS AND EXPLODED VIEWS

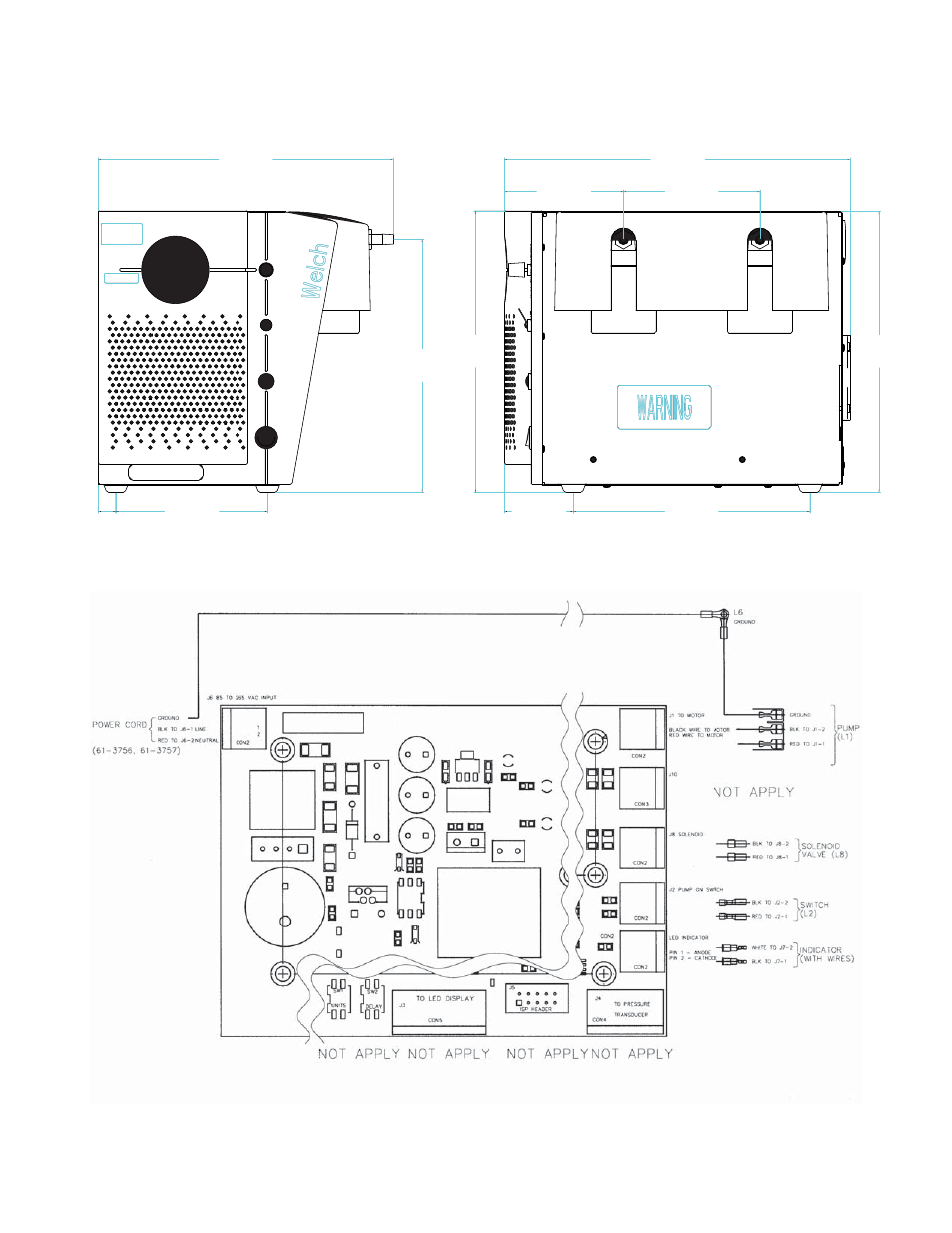

8.10 Dimensional Drawing
4.76"
121mm
5.50"
140mm
13.86"
352mm
11.83"
300mm
0.70"
18mm
6.10"
155mm
2.75"
70mm
9.51"
242mm
10.16"
258mm
11.30"
287mm
11.29"
287mm
8.11 Schematic Wiring Diagram for Models 2025 & 2026
24
