not to change any parameter inadvertently.
3. °C°F appear simultaneously, to indicate the sensors’
attenuation in decibels.
4. Values larger than ±1999 or smaller than ±0.01 are dis-
played in powers of 10 ±3 . As required, either a “10 3 ” or
“10
-3
” will appear above and to the right of the dis-
played value, the value will be rounded off to 3½ digits.

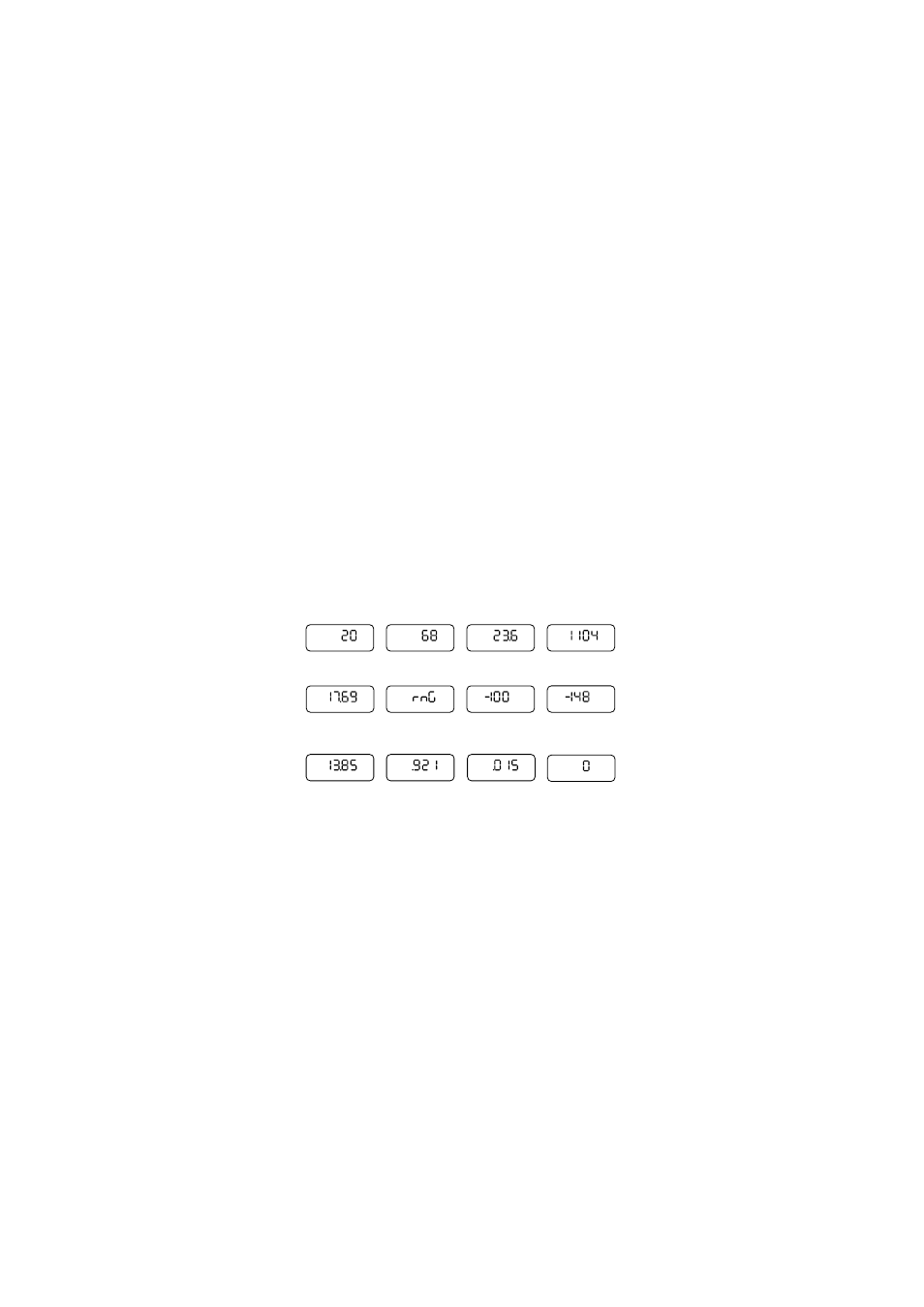

The display will show
51* (out of ranGe), if the num-
ber to be displayed is larger than 1,999,000. Twelve
examples follow; for each the number and units desired
to be displayed are shown in italics, depicted immedi-
ately below them is the resultant 3½ digit LCD display:
˚C
DEWPOINT
˚F
DEWPOINT
x10 3
PPM
DEWPOINT LBS DEWPOINT
DEWPOINT G/M 3
+20°C
-100°C
+68°F
-148°F
23,612 ppmV
0.013,849
ppmV
2,000,000
0.000,000,1
1104.2
lbs H
2
O/mmSCF
0.000,921,15
lbs H
2
O/mmSCF
17.688
grams H
2
O/meters 3
0.000,014,75
grams H
2
O/meters 3
˚C
DEWPOINT
˚F
DEWPOINT
x10 -3
PPM
DEWPOINT
x10 -3
LBS DEWPOINT
x10 -3
DEWPOINT G/M 3
