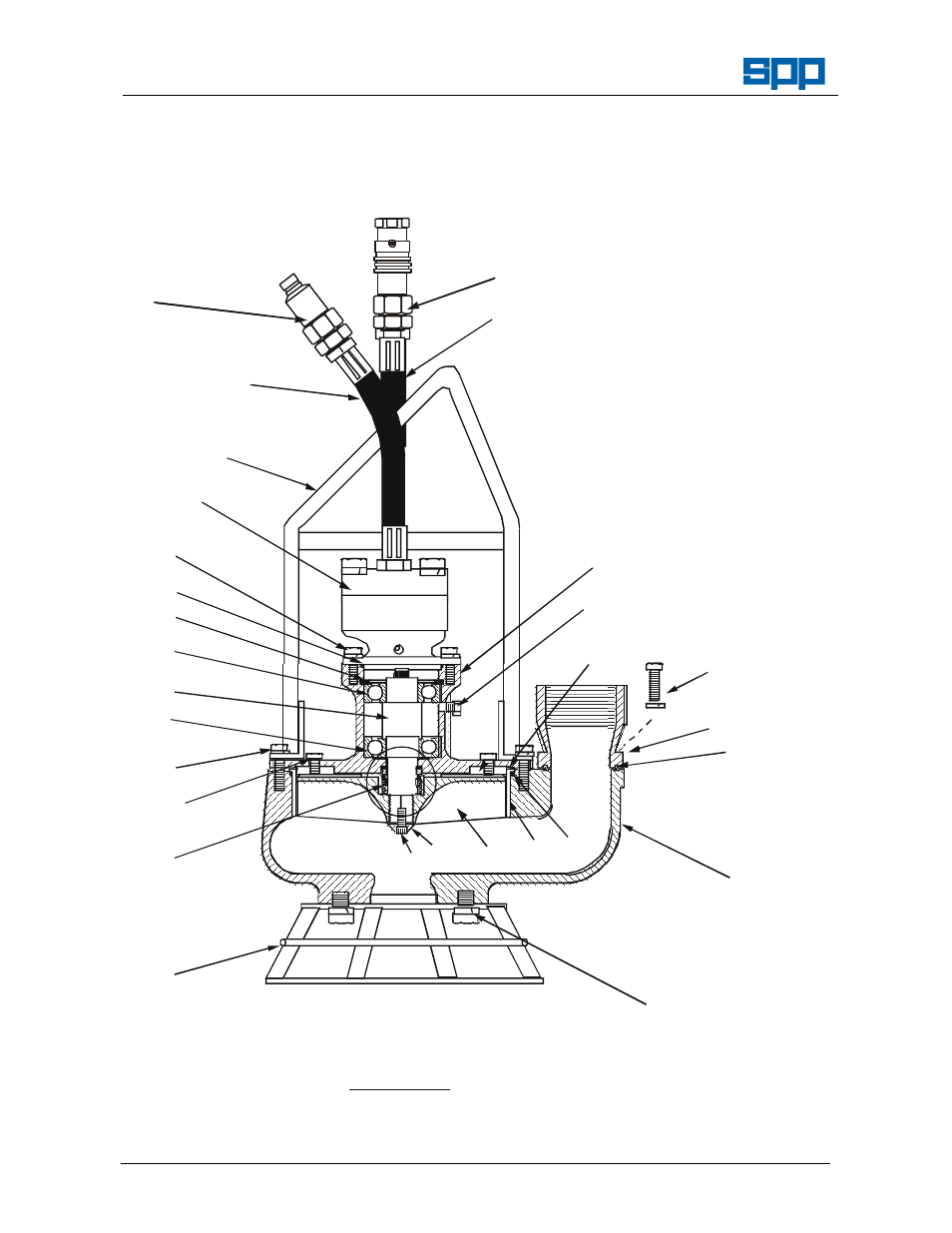

8. PUMP SECTION DRAWING AND PARTS LIST
8.1 Pump Section Drawing
1
3
5
9,4
10
11
12
13
19,4
20,20a
14
25
36
37,38
30
29
26
27 28
24
31,32
33
34
23
15
22
6
7
35
1
S4VHL PUMP
