Server PUMPS - Manual (Page 3)

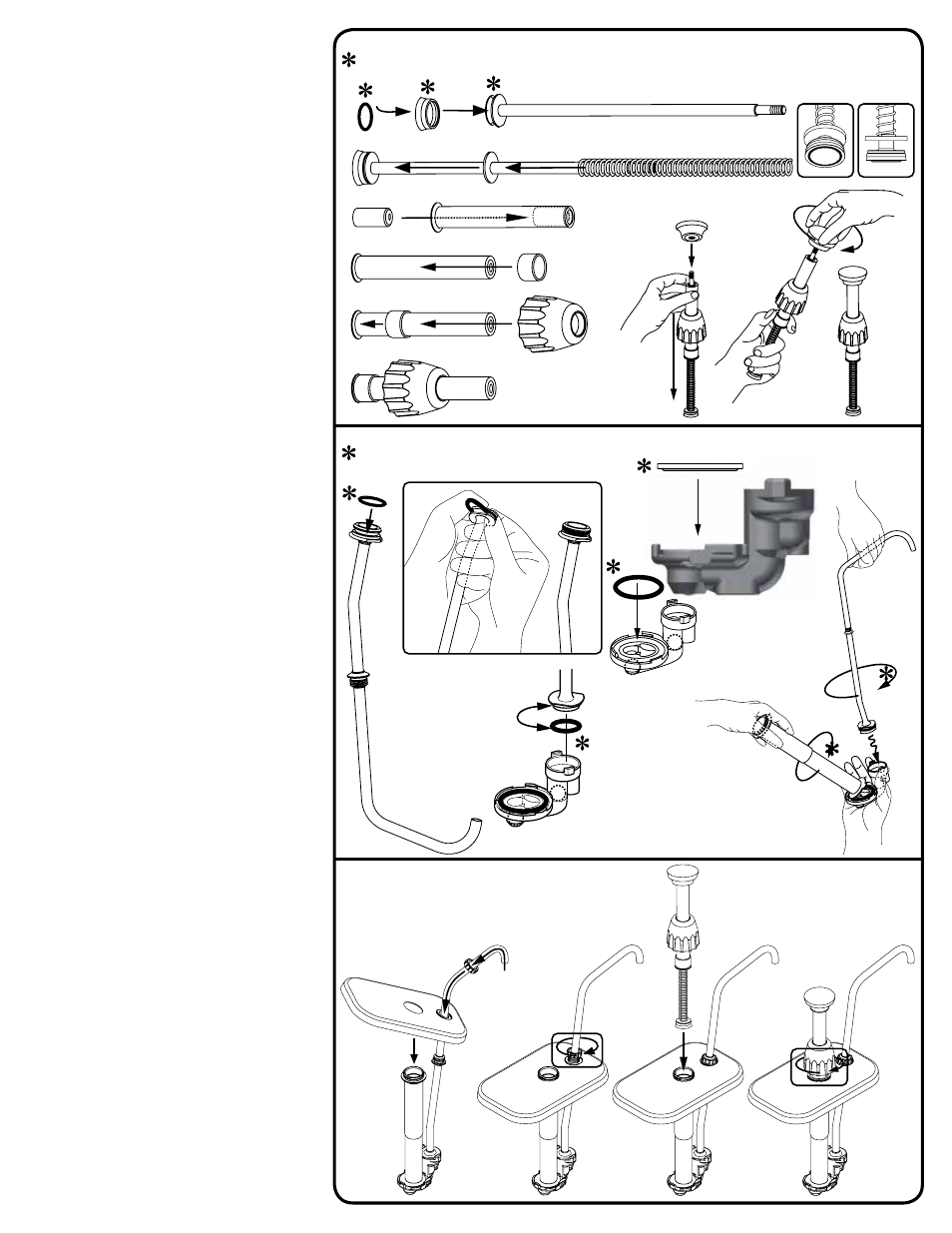

ASSEMBLE PLUNGER
Apply Food Equipment Lubricant onto Seal and Seal 0-Ring
INSTALL O-RINGS AND ASSEMBLE PUMP BODY
Apply Food Equipment Lubricant onto all 0-Rings
INSTALL LID AND SECURE WITH
DISCHARGE TUBE NUT AND LOCKING COLLAR
PUMP ASSEMBLY
BEFORE FIRST USE AND AFTER USE DAILY, DISASSEMBLE
AND CLEAN PUMP.
ASSEMBLE PLUNGER:
1 INSTALL SEAL O-RING INSIDE SEAL.
• Apply food equipment lubricant on seal o-ring.
2 INSTALL SEAL ASSEMBLY ONTO PISTON HEAD.
• Apply food equipment lubricant inside seal assembly.
3 INSTALL WASHER ONTO THREADED END OF PISTON.
4 INSTALL SPRING ONTO THREADED END OF PISTON.
5 INSTALL HEAD INSERT INSIDE HEAD TUBE.
• Beveled edge of head insert should be facing inside
of head tube.
6 INSTALL GAGING COLLAR(S), IF NEEDED, AND
LOCKING COLLAR ONTO HEAD TUBE BY SLIDING
THEM ON. POSITION LOCKING COLLAR WITH
THREADING INSIDE LOCKING COLLAR FACING
GAGING COLLAR(S) AND/OR HEAD TUBE FLARED
END.
7 INSTALL HEAD TUBE ASSEMBLY ONTO PISTON
ASSEMBLY.
8 INSTALL KNOB ONTO PLUNGER ASSEMBLY AND
ROTATE CLOCKWISE TO SECURE ONTO THREADED
END OF PISTON.
• Firmly hold head tube towards piston head,
compressing spring, while screwing knob on.
INSTALL O-RINGS AND ASSEMBLE PUMP BODY:
9 INSTALL SMALL O-RING ONTO DISCHARGE TUBE.
• Apply food equipment lubricant on o-ring.
• Be careful not to damage o-ring while installing
and/or rolling onto discharge tube.
J INSTALL SILICONE GASKET INTO VALVE BODY.
• Apply food equipment lubricant on silicone gasket.
• Install silicone gasket with flat side facing up and
toward cylinder.
K INSTALL CYLINDER ONTO VALVE BODY.
• Rotate cylinder clockwise and press down firmly to
secure into slots on valve body.
L INSTALL DISCHARGE TUBE ONTO VALVE BODY.
• Rotate discharge tube clockwise and press down
firmly to secure into slots on valve body.
INSTALL LID AND SECURE WITH
DISCHARGE TUBE NUT AND
LOCKING COLLAR:
M INSTALL LID AND DISCHARGE TUBE NUT ONTO
DISCHARGE TUBE.
N SECURE LID ONTO CYLINDER AND DISCHARGE TUBE
BY ROTATING DISCHARGE TUBE NUT CLOCKWISE.
O INSTALL PLUNGER INTO CYLINDER AND SECURE
TO CYLINDER BY ROTATING LOCKING COLLAR
CLOCKWISE.
INSTALL SILICONE GASKET WITH
FLAT SIDE FACING UP.
