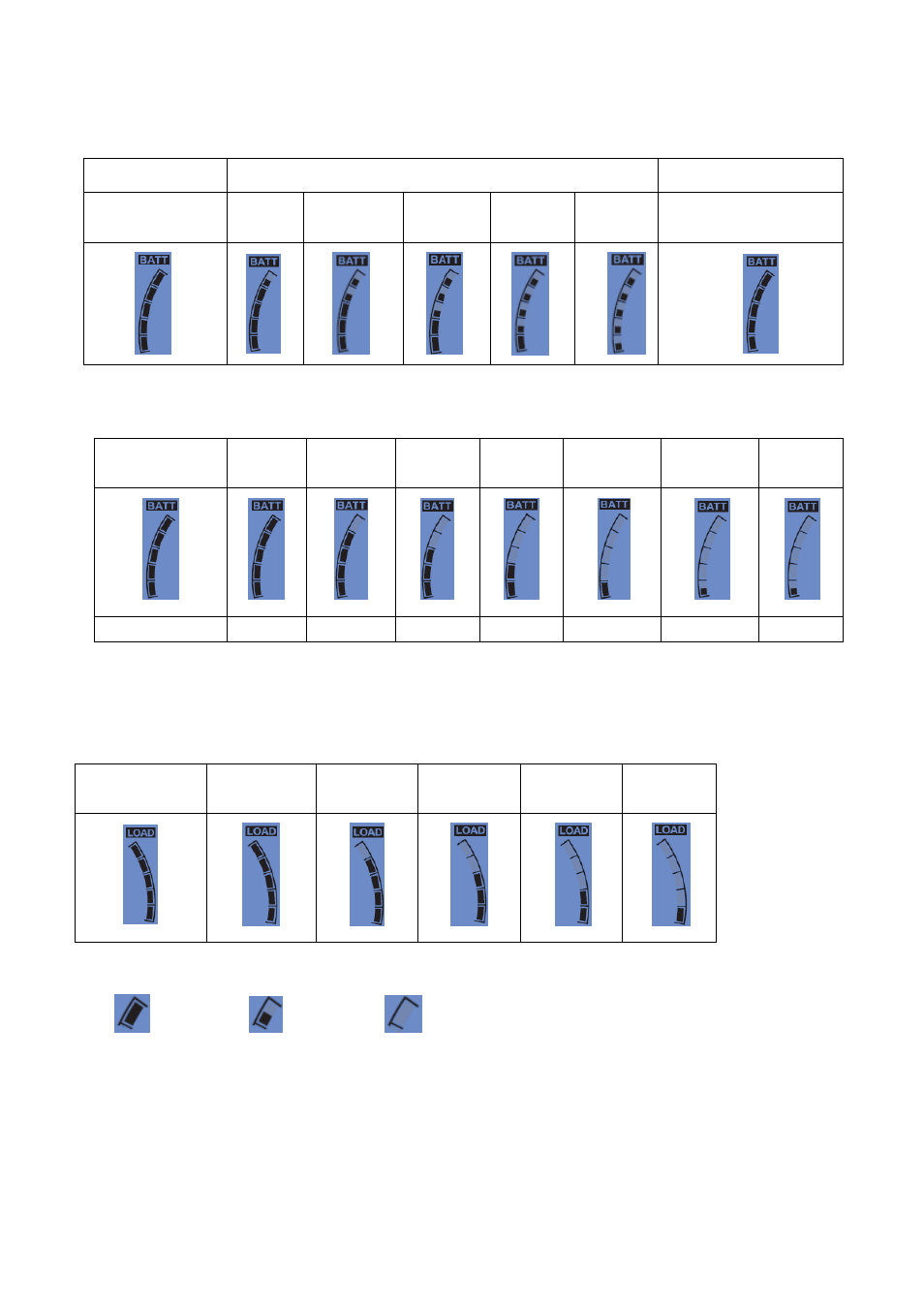

Indicator & Alarm
Charger mode battery indicator
Battery capacity segment will lighting to comply with battery voltage
Status CC/CV
Floating
Battery
voltage(+/-0.6V)
>26V 25V~26V 24V~25V 21V~24V <21V
Any battery voltage
Inverter mode battery indicator:
Battery
voltage(+/-0.6V)
>26V 25V~26V
24V~25V
23V~24V 21.6V~23V 20V~21.6V <20V
ALARM -- -- -- -- --
1beep/2s
continue
Load indicator:
The load indicate the load percentage comply with load VA or W (show the bigger value), the overload label
will flash when overload.
Load (±4%)
>85%
65%~85%
45%~65% 25%~45% 0%~25%
Note:
Solid on;
On to off;
Off.
