Poweramp VS VERTICAL SPECIALTY 4.2009 - Manual (Page 45)

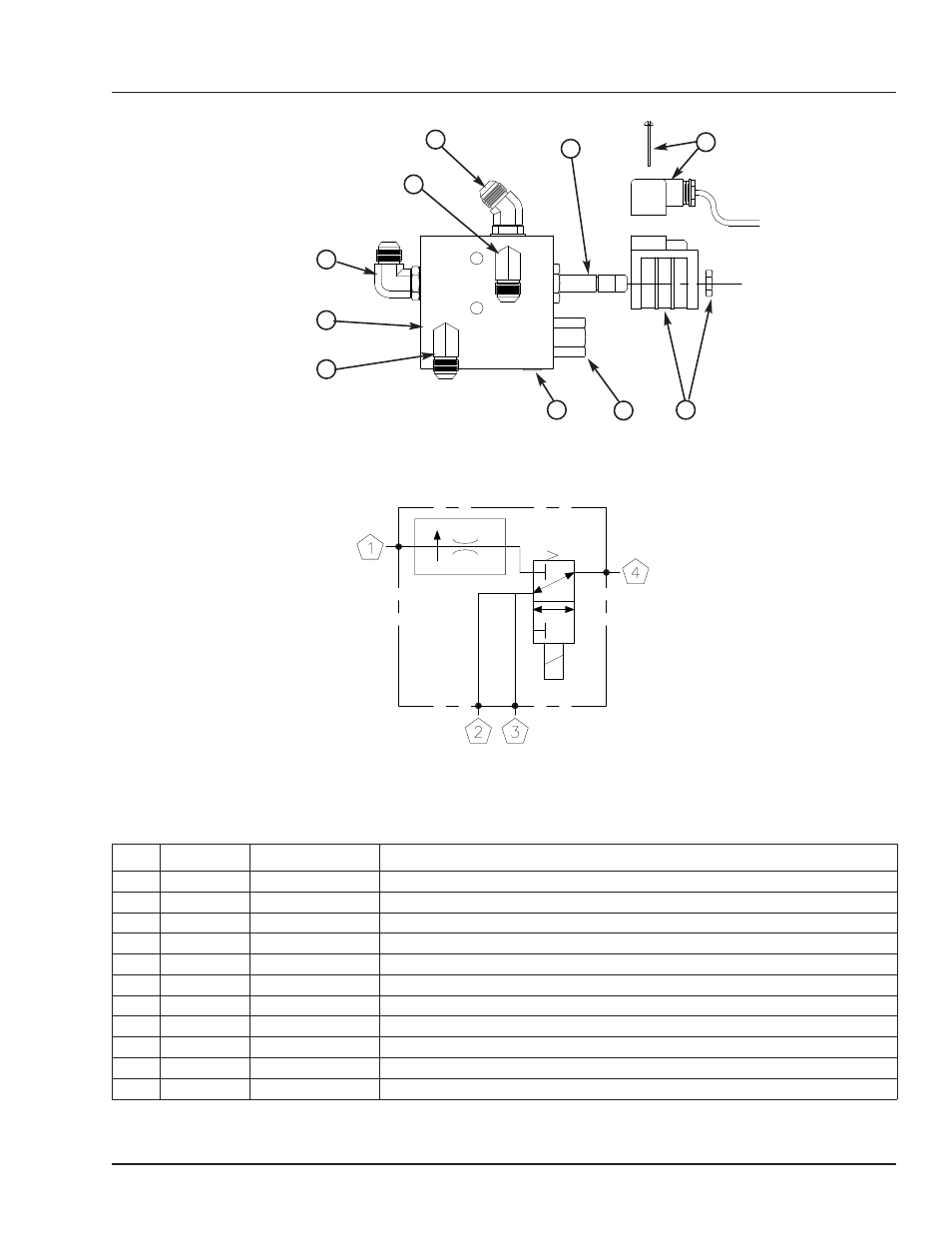

Item Quantity Part Number Description
A 1 Valve Manifold
B 1 8581-0005 Valve Cartridge 3-Way Delta
C 1 Fitting, Plug
D 1 8581-0088 Valve Cartridge - Flow 2GPM
E 2 0521-0017 Fitting Elbow 90 Deg Male
F 1 9904-0120 Fitting Elbow 45 Deg Male, #8 Orb X #8 Jic
G 1 9904-0116 Fitting Elbow 90 Deg Male, #8 Orb X #8 Jic
H 1 8581-0004 Delta Coil 115V (Includes 1/2 UNF Jam Nut)
I 1 4301-0001 Cable Assembly, 48" Lg (Includes Screw)
*J 1 8583-0045 Centra Power valve Assembly
*
A-G Included in in 8583-0045
E E
PARTS
E
E
G
F
D
B
H C
A
I
2. Return To Pump Station
1. Pressure From
Pump Station
4. Pressure To
Dockleveler
3. Return From Dockleveler
4111-0008 — April 2008 43
