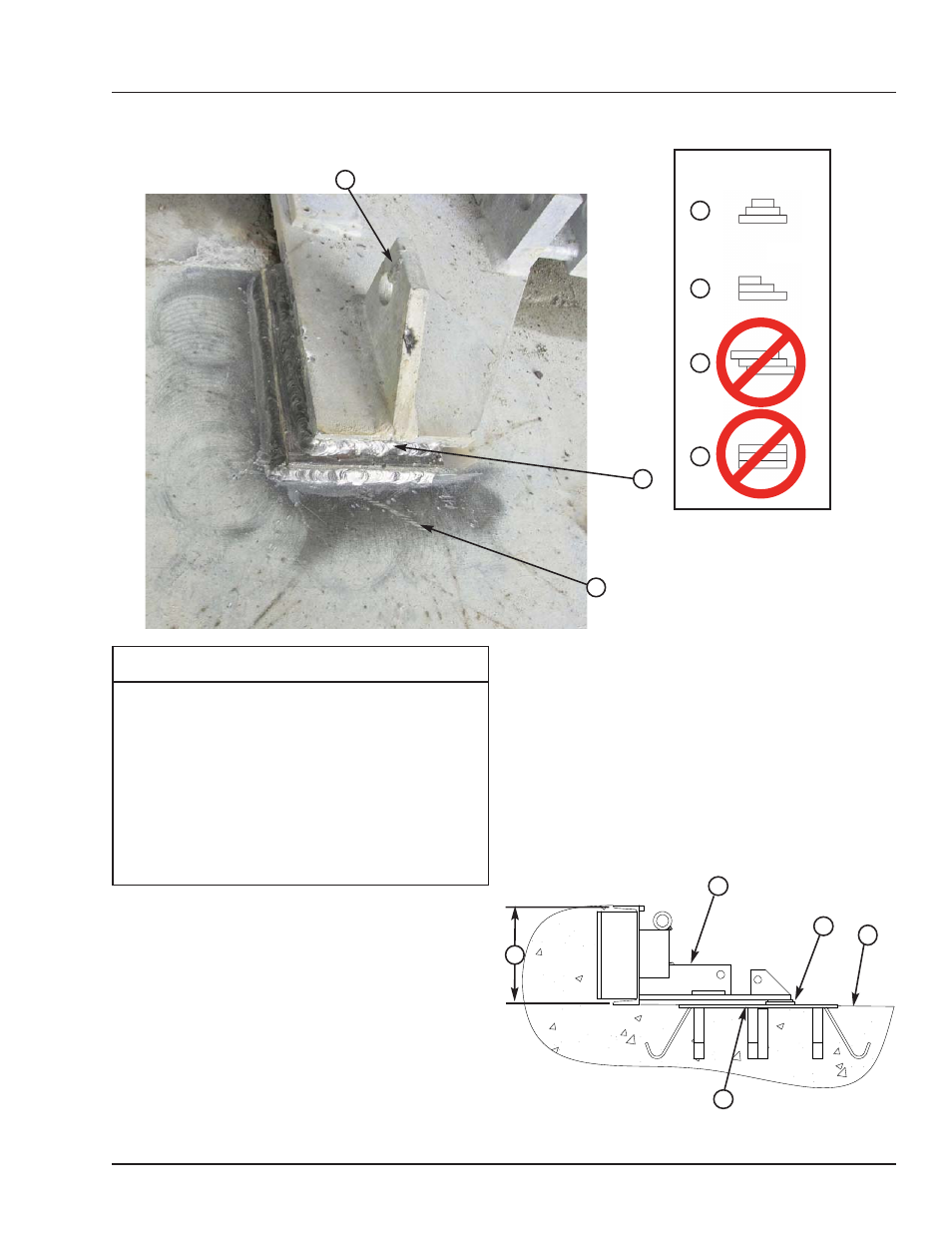

5. Before installing the leveler the Imbed channel

must be shimmed and welded to the Imbed on the
pit floor.

INSTALLATION

4111-0001 — March 2008

A— Distance (Leveler Frame

Height)

B— Shim Location (Under

Maintenance Prop)
(Standard Dock Leveler
Only)

C— Dock Floor
D— Rear Imbed Frame
E— Imbed Frame

(Maintenance Prop)

F— Pyramid (Preferred)
G— Stepped (Acceptable)
H— Offset (Not Acceptable)
I — Straight (Not Acceptable)

Install Dock Leveler

E

C

IMPORTANT

The minimum size of the shim that contacts the
leveler frame (i.e., the top shim of each shim stack)
must be at least 4-1/2 x 4-1/2 in. (114.3 x 114.3
mm) to support the full width of the hoist cylinder /
storage prop weldment.

Use the thickest shim stock possible for stability
and weld penetration purposes. DO NOT use
multiple layers of 1/8 in. (3.18 mm) or thinner shim
stock.

B

C

D

E

F

G

H

I

Shim

Stacking Methods

B

A
