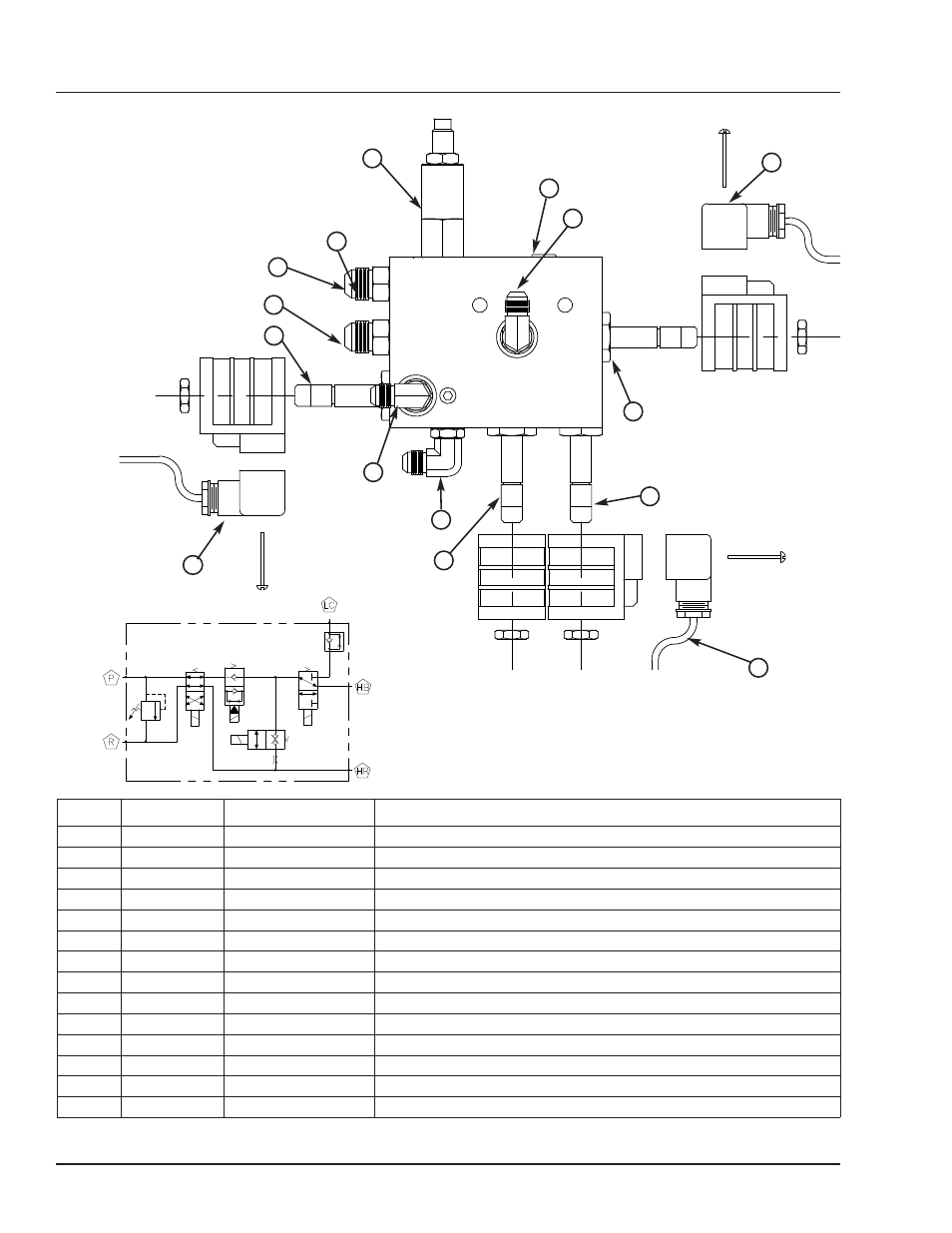

PARTS
Item
Quantity
Part Number
Description
A
1
8581-0005
Valve Cartridge 3-Way Delta
B
1
8581-0102
Valve Cartridge 2-Way Bi-Dr Delta
C
1
8581-0011
Valve Cartridge 4-Way 2 Pos Delta
D
1
8581-0010
Valve Cartridge 2-Way N.C. Poppet Delta
E
1
0521-0105
Valve Cartridge Relief
F
1
Valve Manifold
G
1
9301-0104
Fitting Plug
H
2
9301-0111
Fitting #6 ORB X #8 Jic
I
3
9301-0113
Fitting 90 Deg #6 ORB X #6 Jic
J
4
8581-0004
Delta Coil 115V (Includes 1/2 UNF Jam Nut)
K
2
4301-0001
Cable Assy, 48" Lg (Includes Screw)
L
1
4301-0003
Cable Assy, 48" Lg (Includes Screw) Two Coil
*J
1
8585-0089
Vertical Valve Assembly
*
A-I Included in in 8583-0089
C
I
K
L
H
H
A
Pump Psi
Return To Tank
I
L
E
D
F
G
B
“D” Lower Platform
“E” Lower Platform
Pressure Relief
“C” Lip Valve
Hoist Cyl
Rod End
“B” Float Valve
Hoist Cyl Bind End
I
Lip Cyl
