37 Manual No. 4111-0025
March 2011
May 2012
PARTS

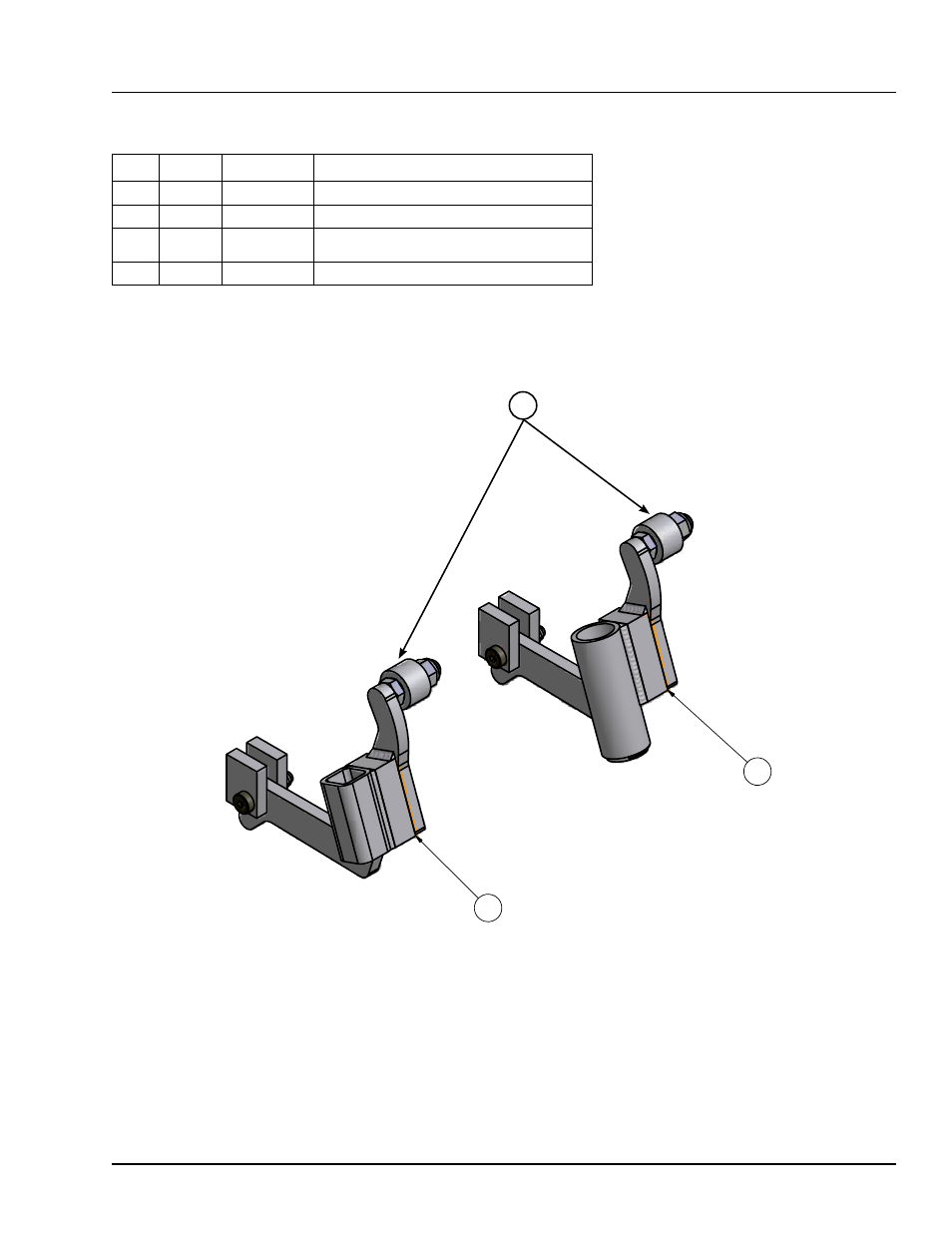

OPERATING LINK OPTIONS
Item Quantity Part Number Description
1 1 DOTH-3726 NL Operating Link Assembly
2 1 DOTH-3696 NLIII Operating Link Assembly
3 1 DOTH-3697
Operating Link Assembly for all 35K
units (not shown)
4 1 DOTH-2449 Roller Bearing
TOLERANCES
(UNLESS OTHERWISE NOTED)
FRACTIONAL: ` 1/32"
DECIMAL:
.00 =
` .01"
.000 = ` .005"
ANGULAR: ` 1 ~
MATERIAL
DRAWN BY CHECKED BY
DRAWING NO.
DATE SR 8/25/2009
DOTH-3696/3726/3834
NL SERIES COMPONENT COMPARISON
P O W E R A M P
M C G U I R E
D L M
S Y S T E M S, I N C.
L o a d i n g D o c k E q u i p m e n t
This print is the property of Systems, Inc. and represents a proprietary article in which Systems, Inc. retains any and all
patent and other rights, including exclusive rights of use and/or manufacture and/or sale. Possession of this print does
not convey any permission to reproduce, print or manufacture the article or articles shown therein, such permission to be
granted only by written authorization signed by an officer or other authorized agent of Systems, Inc. thereof.
OPERATING LINKAGES
BILL OF MATERIAL
SIZE DESCRIPTION PART NO. QTY ITEM
NL OPERATING LINK ASSEMBLY DOTH-3726 1 1
NLIII OPERATING LINK ASSEMBLY DOTH-3696 1 2
NLIII ROLLER ARM ASSEMBLY - OPEN
PIPE DOTH-3834 1 3
1
2
3
4
