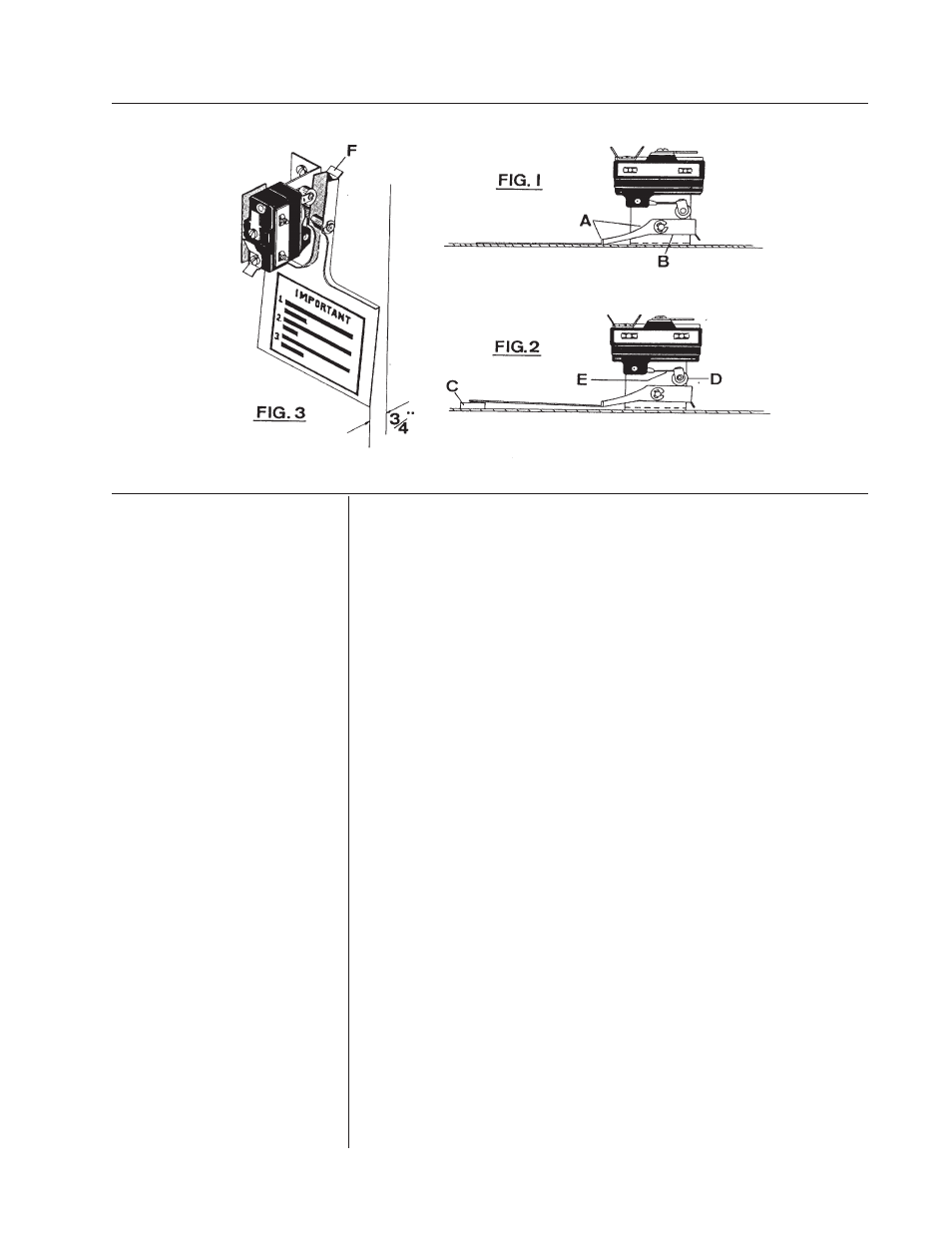

Air Switch Adjustment
1. Shut off current; disconnect leads and remove air switch.
2. Lay air switch assembly on flat surface. Adjust air blade at
“A” (figure 1) so that air blade lays flat and surface “B” is
parallel to the flat surface.
3. Place 3/8” x 5/8” spacer bar or equivalent “C” (figure 2)
under air blade in position shown; hold switch mounting
bracket firmly and adjust switch actuator “D” with needle
nose pliers at “E” by twisting actuator right or left,
whichever is needed, so that switch closes when end of air
blade engages bar “C”.
4. Maximum opening of air switch must be no greater than 3/4”
(figure 3). Bend tab “F” in or out to maintain this dimension.
5. Re-install air switch assembly on rear of dryer.
6. Re-check operation of air blade. Switch must close before
air blade engages face of opening and re-open before stop
“F” engages.
AIR SWITCH
ADJUSTMENT
