Installation Procedures
Theodolite
Assembly
Theodolite
Installation
Step 1
Refer to Figure 36. The Andrew Theodolite Kit (223711) contains 1 theodolite mounting
assembly and 1 alignment stick assembly. A Wild T2 or Topcon DT-05A theodolite is
used but not included as part of the Andrew Theodolite Kit.
Note: The theodolite mounting assembly comes preassembled. The theodolite mounting
assembly includes the lift/adapter flange mount assembly, X/Y translation stage and tri-
brach. Refer to the theodolite operation manual for theodolite operation instructions.

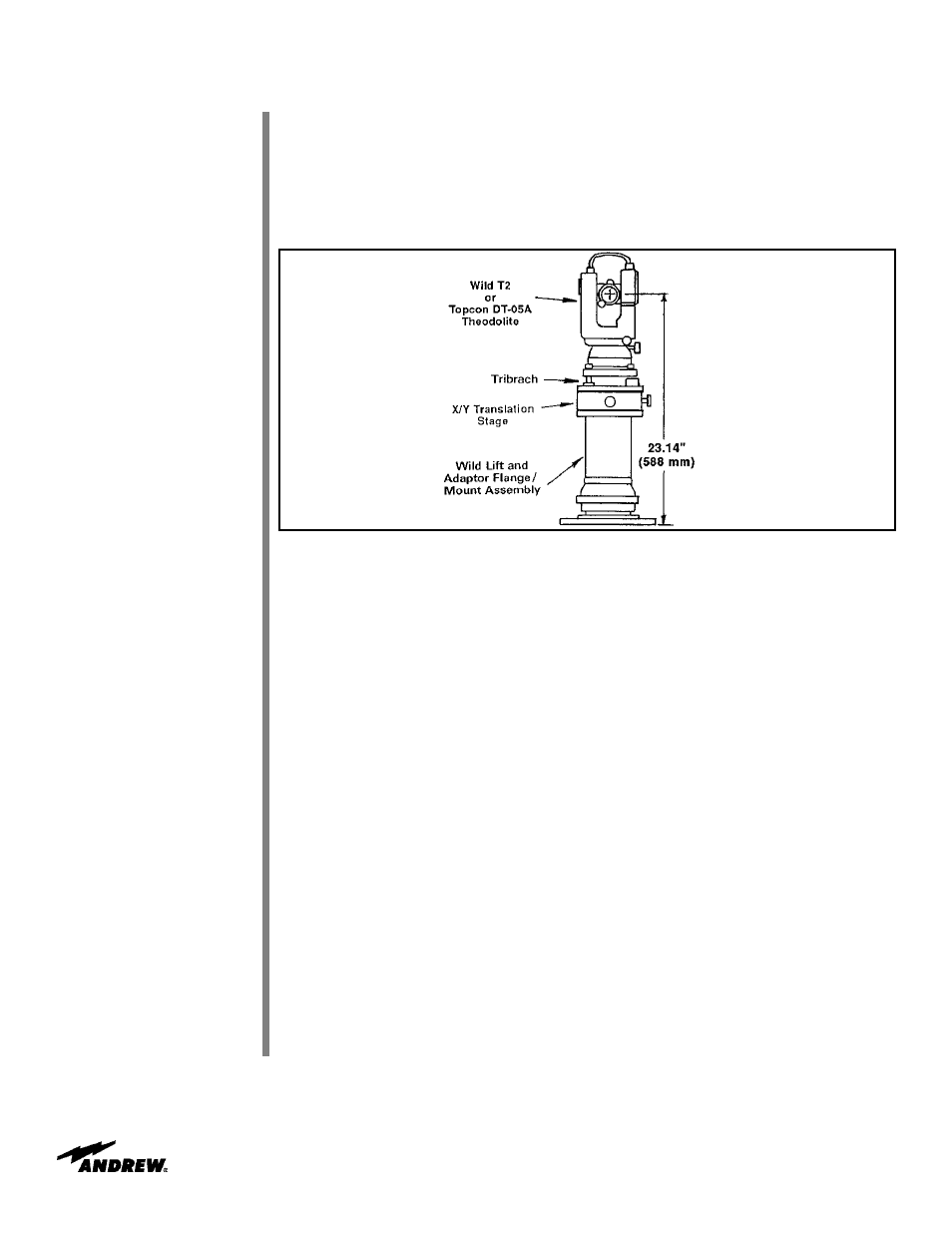

Figure 36
Refer to Figure 36. Before installing theodolite kit onto the torque tube assembly, be
sure to set the height of the theodolite and support assembly as illustrated. Ensure all
hardware connecting the torque tube assembly to the enclosure are fully tightened.
Note: Any loose hardware will cause improper theodolite alignment.
