Page 3

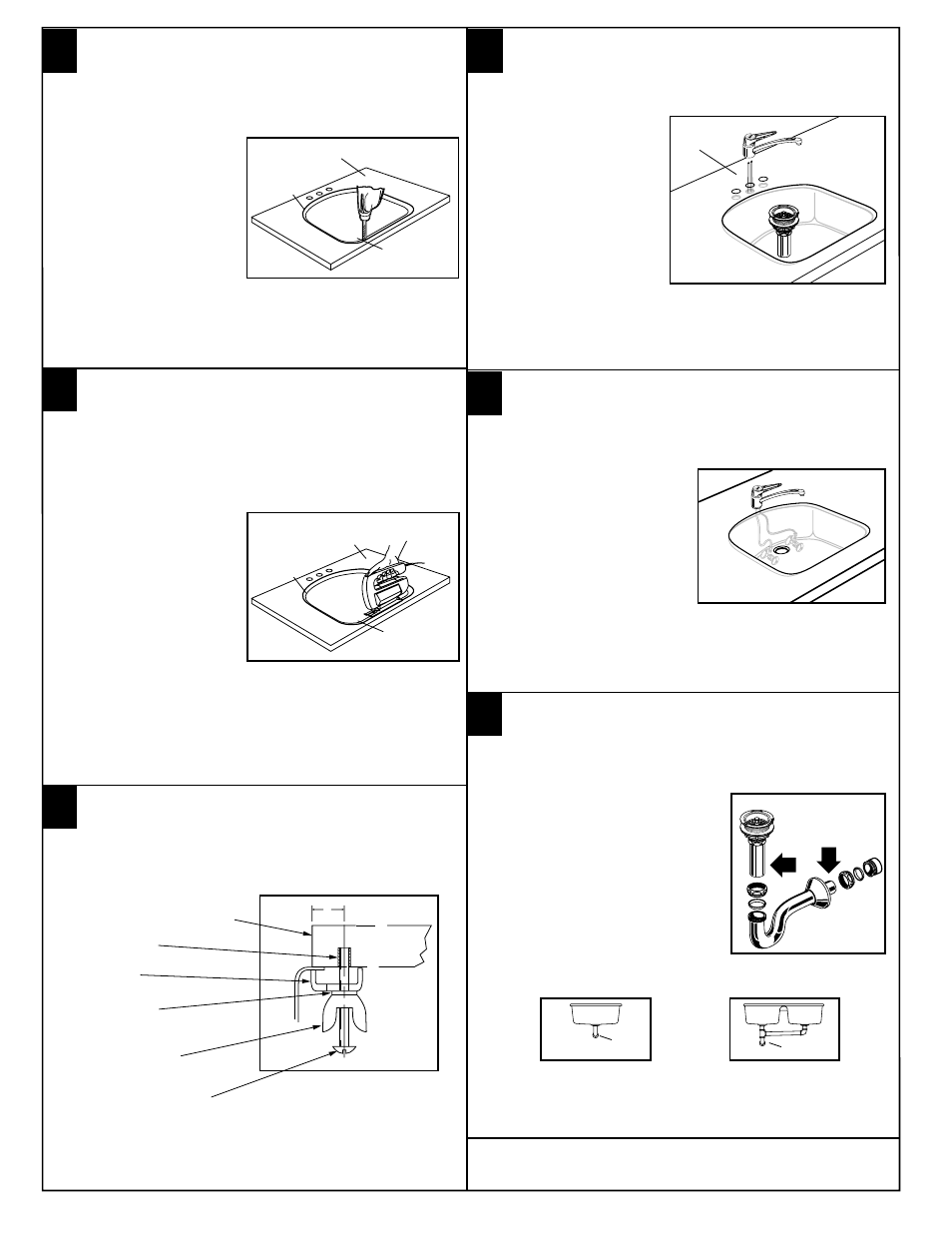

A
B
Single Bowl
INNER EDGE
OF CUTOUT
Double Bowl
Trap
Trap
1
2
Drill a clearance hole
inside the cutout line.
Connect supply lines to
faucet finger tight, and
carefully bend to engage
with the supply stops.
Tighten connections to
faucet for secure seal.
Connect drain assembly
hand tight to check align-
ment. It may be necessary
to cut off part of the tailpiece
(area "A") or part of the
horizontal leg of the trap
(area "B").
Secure joint for watertight
assembly.
Mount the faucet and
drain assembly following
the manufacturer's
instructions.
3
4
5
Cutout
Countertop
Template
Countertop
Cut opening on cut line
of the template.
Note - Contact your
countertop distributor for
the best method of cut-
ting materials such
as marble, hard syn-
thetics, etc.
6
END
7 9 0 7 6 6 - 1 0 0
3
1"
Countertop
Template
Cutout
template
INSERT
CLAMP
WASHER
WINGNUT
SCREW
