Chapter 2
INSTALLATION
2.1 System’s Wiring
A proper installation of the AeGIS system is very essential. You MUST follow the installation procedures, block diagrams and
installation requirements as specified in this chapter.

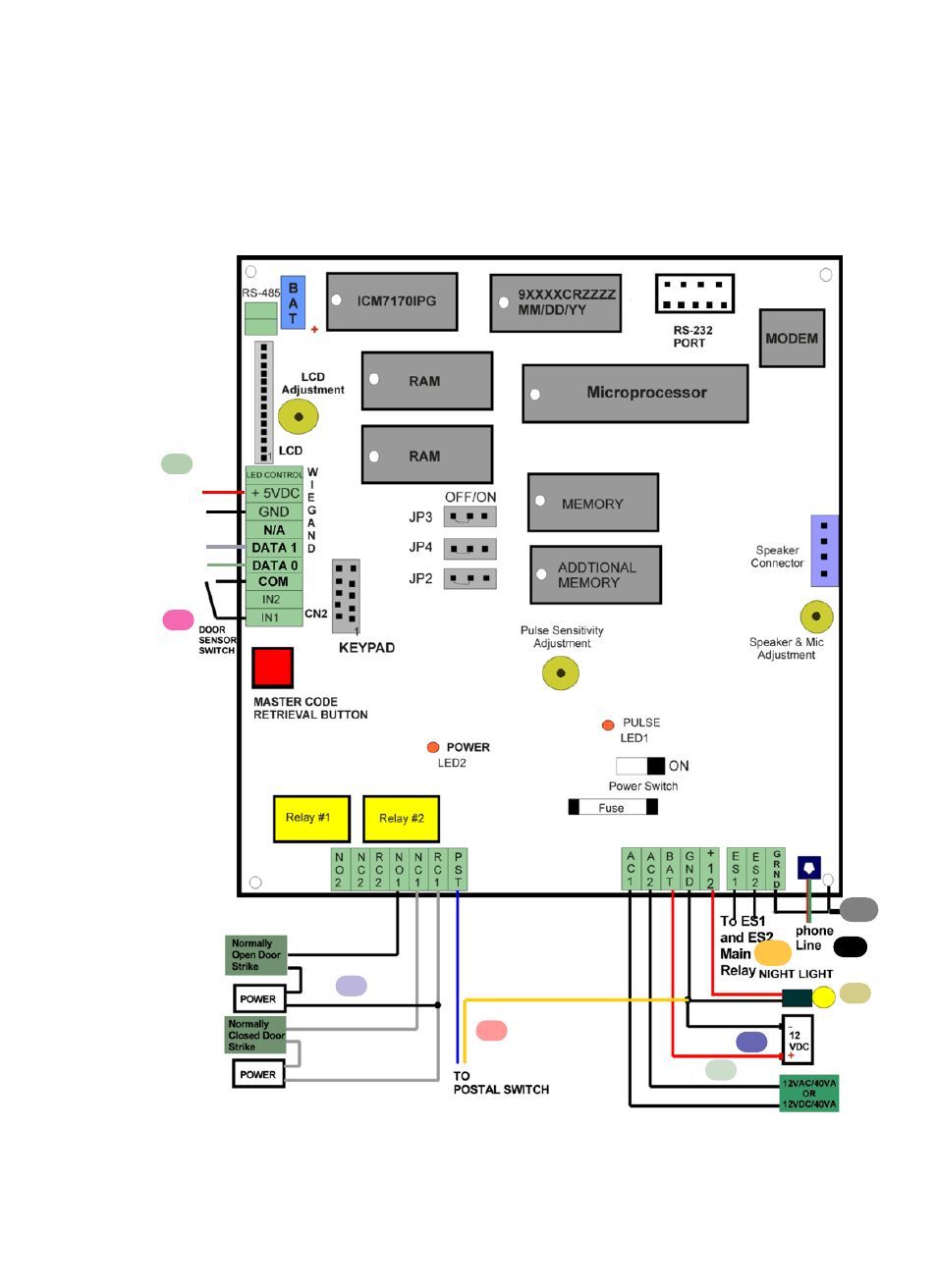

Figure 2.1
Pach and Company Chapter 2 Page 4
AeGIS NPB9000 Series INSTALLATION 05/01/02
2
3
4
5
6
7
1
10
RED
BLACK
WHITE
GREEN
9
2nd relay can be
connected as
Mode 1: Door Control
Mode 2: A Shunt
Mode 3: An Alarm
Mode 4: CCTV switch
Battery
Backup
8
Optional 26 Bit
Wiegand Card
Reader or
Wiegand
Radio Reader
Input. We will
not resposible
for
incompatibility
issue if using
other than
Pach & Co
Proximity
Reader.
