2. Electrical Service

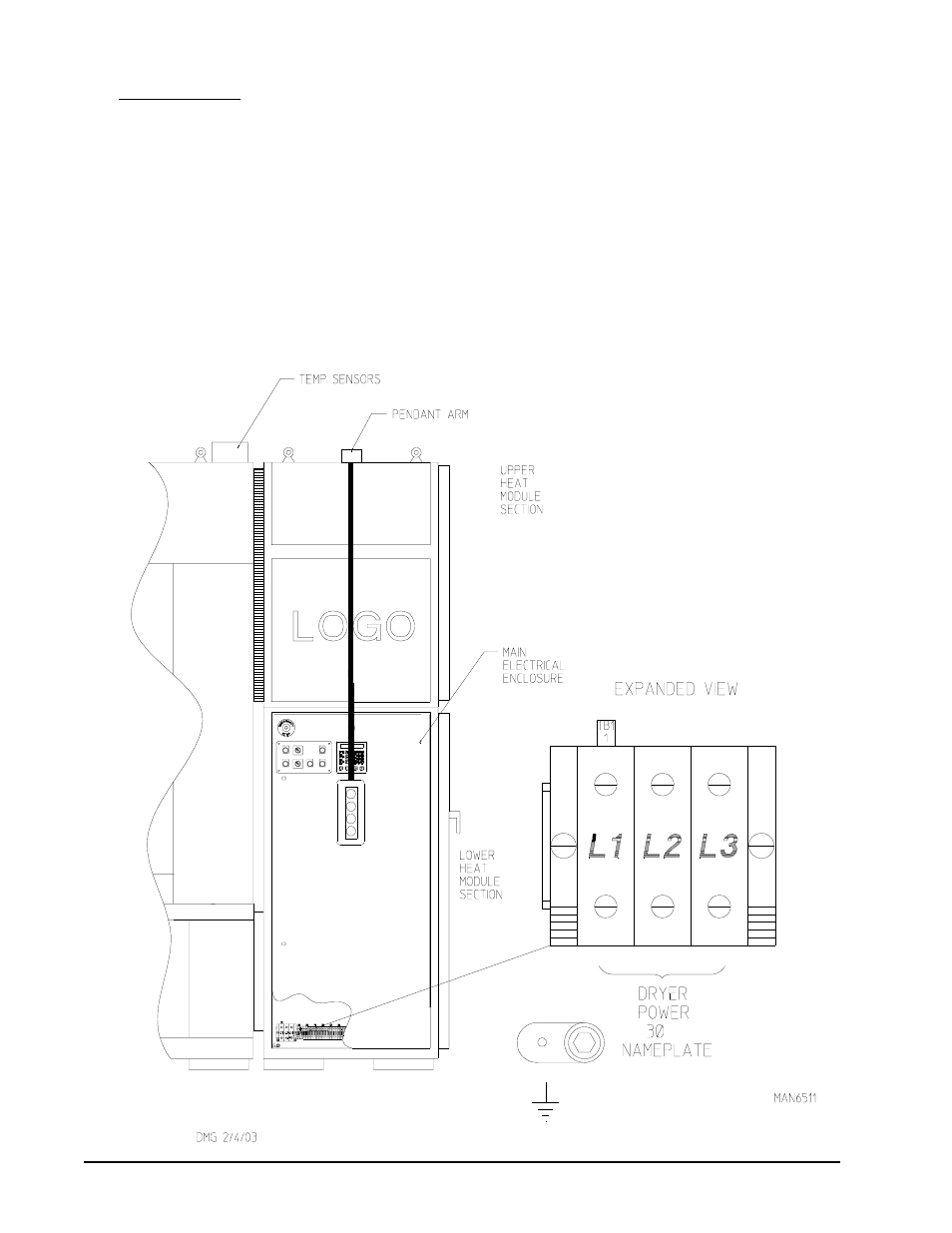

The electrical power is connected to the dryer at the high voltage section of the control cabinet. On the
dryer, this section is located at the bottom left of the main electrical enclosure.
Feed the electrical service cables to the dryer using the pre-punched knockouts at the bottom section of the
electrical cabinet right wall.
Connect the ground wires directly to the ground lug located at the same approximate area.
Before turning power on to the dryer, measure the supply voltage to ensure that it matches the dryer’s
specified input voltage. This input voltage is marked on the aluminum data plate located on the inner right
wall of the electrical cabinet.
