16 American Dryer Corp. 113068 - 7

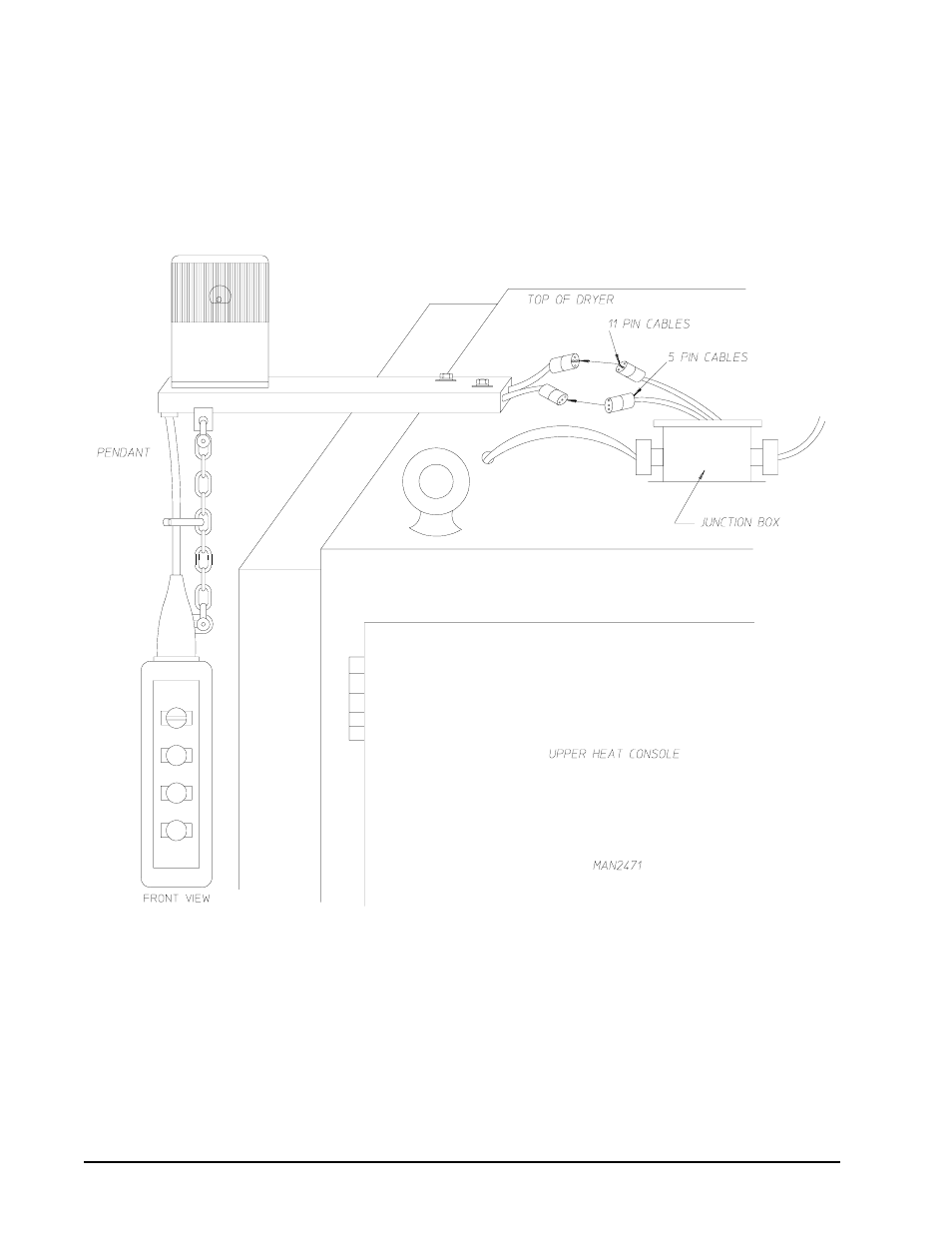

d. Optional Pendant
On the top of the heat console section of the dryer near the pendant, there is a junction box with four (4)
cables coming out of it. Two (2) of the cables from the junction box have connectors on the end, a
5-pin connector and an 11-pin connector. Coming out of the pendant should be two (2) cables, one (1)
with a 5-pin connector and the other with an 11-pin connector. Match up the four (4) cables into
assigned pairs, check keying and connect the male and female connection together.
