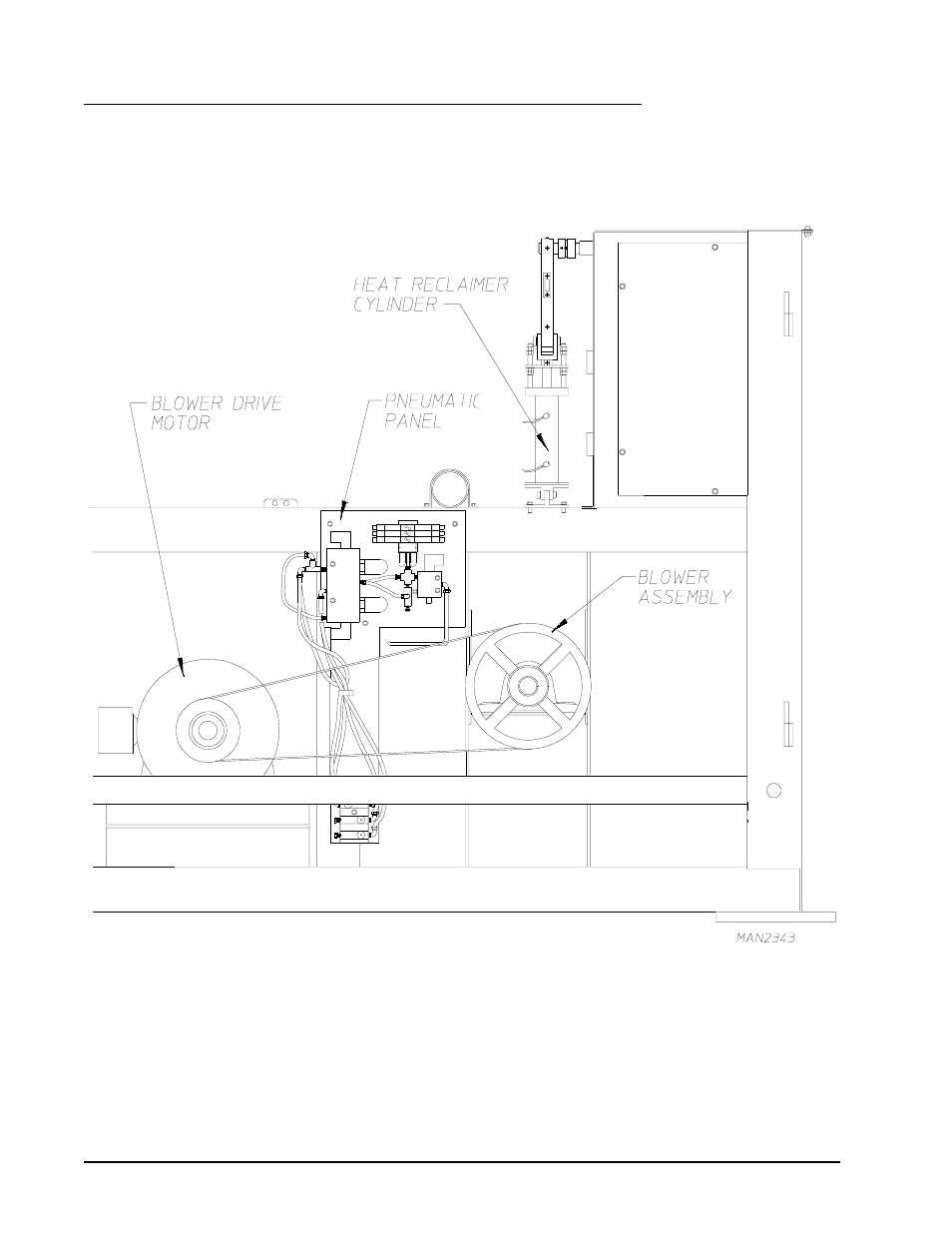

B. MAIN AIR BLOWER AND HEAT RECLAIMER SYSTEM
The fan, which moves the exhaust air through the dryer is a 22-inch (55.88 cm) diameter, squirrel cage wheel
that is driven at 1,100 RPM by a 25 hp (18.6 kW) motor. This fan moves a maximum of 13,000 cfm (368 cmm)
air through the dryer.
