Diamond Products CC1600 - Manual (Page 17)

7
5
#6050205
BLUE LOCTITE (242) ALL #11 & #12 SCREWS
1
2
3
2
4
5
9
4
2
6
10
8
11

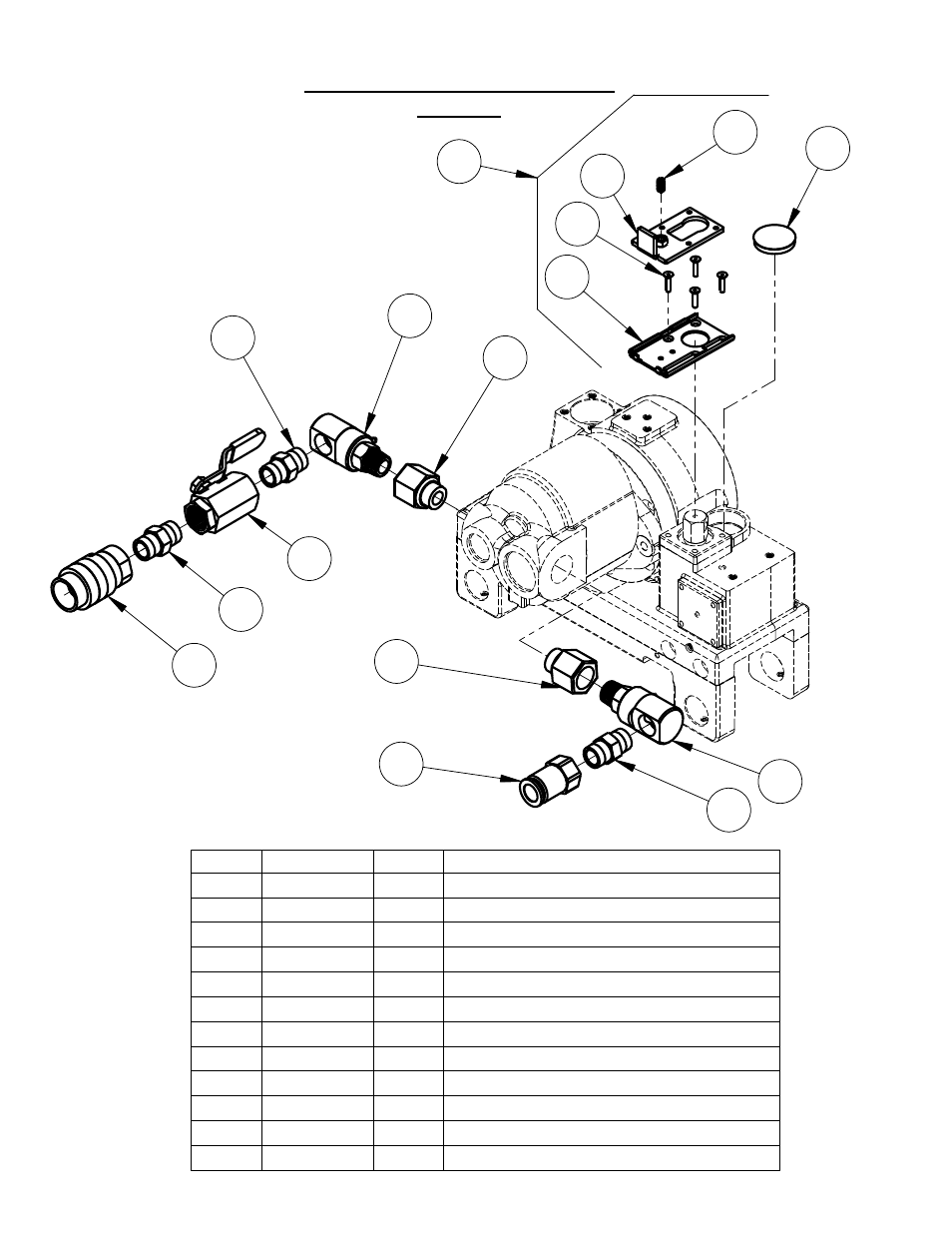

MANUAL OPERATION ASSEMBLY
12
ITEM PART NO. QTY. DESCRIPTION
1 3200100 1 Coupler, 3/4" Quick Disconnect
2 3200137 3 Hex Nipple, 3/4" NPT
3 3200005 1 Ball Valve, 3/4" Pipe
4 3200133 2 Swivel, 3/4" M. to 3/4" F. Pipe
5 3200138 2 Adapter, 1" O-Ring to 3/4" F. Pipe
6 3200101 1 Nipple, 3/4" Quick Disconnect
7 6084120 1 Lock Plate Ass'y (Includes #8-#12)
8 6084117 1 Bottom Lock Plate
9 6084118 1 Sliding Plate Ass'y
10 6084116 1 Plug
11 2900646 4 Cap Screw, Flat Hd., #10-24 x 7/8
12 2501686 1 Ball Nose Plunger, 5/16-18
17
