11 - travel transfer assembly, Travel transfer assembly – Diamond Products CC1600 User Manual
Page 11

ITEM
PART NO.
QTY.
DESCRIPTION
1
6084029
1
Travel Drive Shaft
2
6048018
2
Key, 3/16" Sq. x 3/4"
3
6084031
1
Worm Gear, 10P, 14.5PA, 20T
4
2501582
2
Ball Bearing, 15mm x 35mm x 11mm
5
6084030
2
Bearing Retainer Cap
6
2900056
3
Set Screw, Soc. Hd., 1/4-20 x 1/4"
7
2901230
8
Cap Screw, Button Hd., #10-24 x 5/8"
8
2501608
1
Seal
9
6084032
1
Spur Gear, Travel Drive
10
6084033
1
Spacer, Spur Gear
11
6084034
1
Shaft, Rack Pinion Gear
12
2400630
2
O-Ring
13
6084035
1
Pinion Gear Rack
14
2501617
1
Plain Bearing, 1/2 x 5/8 x 3/4
15
2900619
1
Set Screw, Soc. Hd., 1/4-20 x 5/16"
16
2900036
1
Set Screw, Soc. Hd., 5/16-18 x 1/4"
7

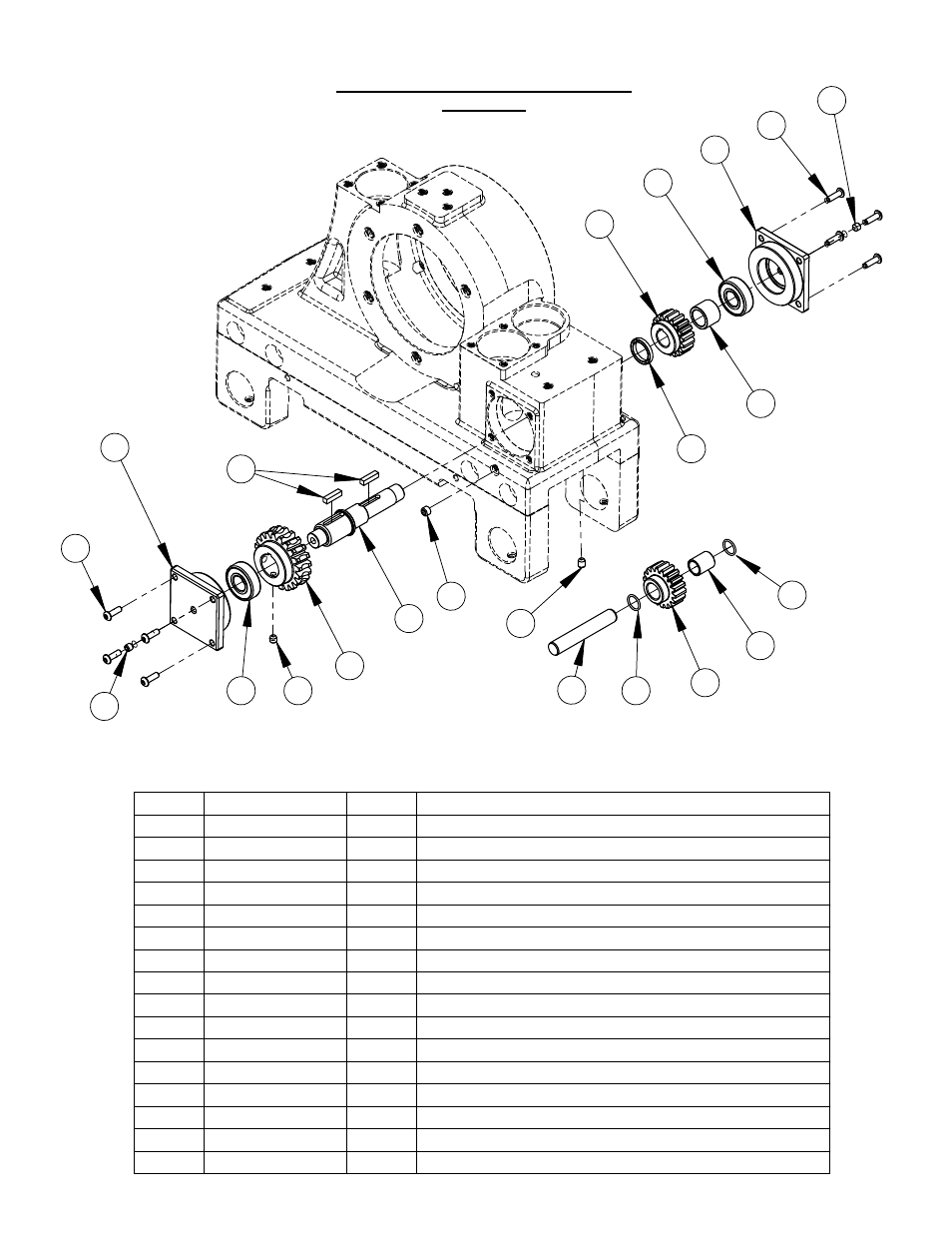

TRAVEL TRANSFER ASSEMBLY
#6084028
3
RED LOCTITE (262) #6 SET SCREW ON #3 WORM GEAR ONLY
BLUE LOCTITE (242) ALL #6, #7, #15 & #16 SCREWS
6
5
4
6
1
16
15
11
12
13
14
12
8
9
10
4
5
6
7
2
11
