Diamond Products CC1600 - Manual (Page 10)

ITEM PART NO. QTY. DESCRIPTION
1 6084023 1 Manual Travel Worm Shaft
2 6048018 1 Key, 3/16" Sq. x 3/4"
3 2900901 1 Key, 1/8" Sq. x 1/2"
4 2901230 4 Cap Screw, Button Hd., #10-24 x 5/8"
5 6084024 1 Manual Travel Bearing Retainer Plate
6 2501609 1 Worm Shaft Seal
7 2501601 2 Bearing, Worm Shaft
8 2501605 1 Pre-Load Bearing Shim
9 6084025 1 Worm Spacer
10 2501616 1 Worm Gear
11 6084026 1 Spur Gear Spacer
12 6084027 1 Spur Gear
13 2900986 1 Jam Nut, 1/2-20 x 3/16"
#6084022
4
RED LOCTITE (262) #13
BLUE LOCTITE (242) ALL #4 SCREWS
1
2
3
6
8
9
10
11
12

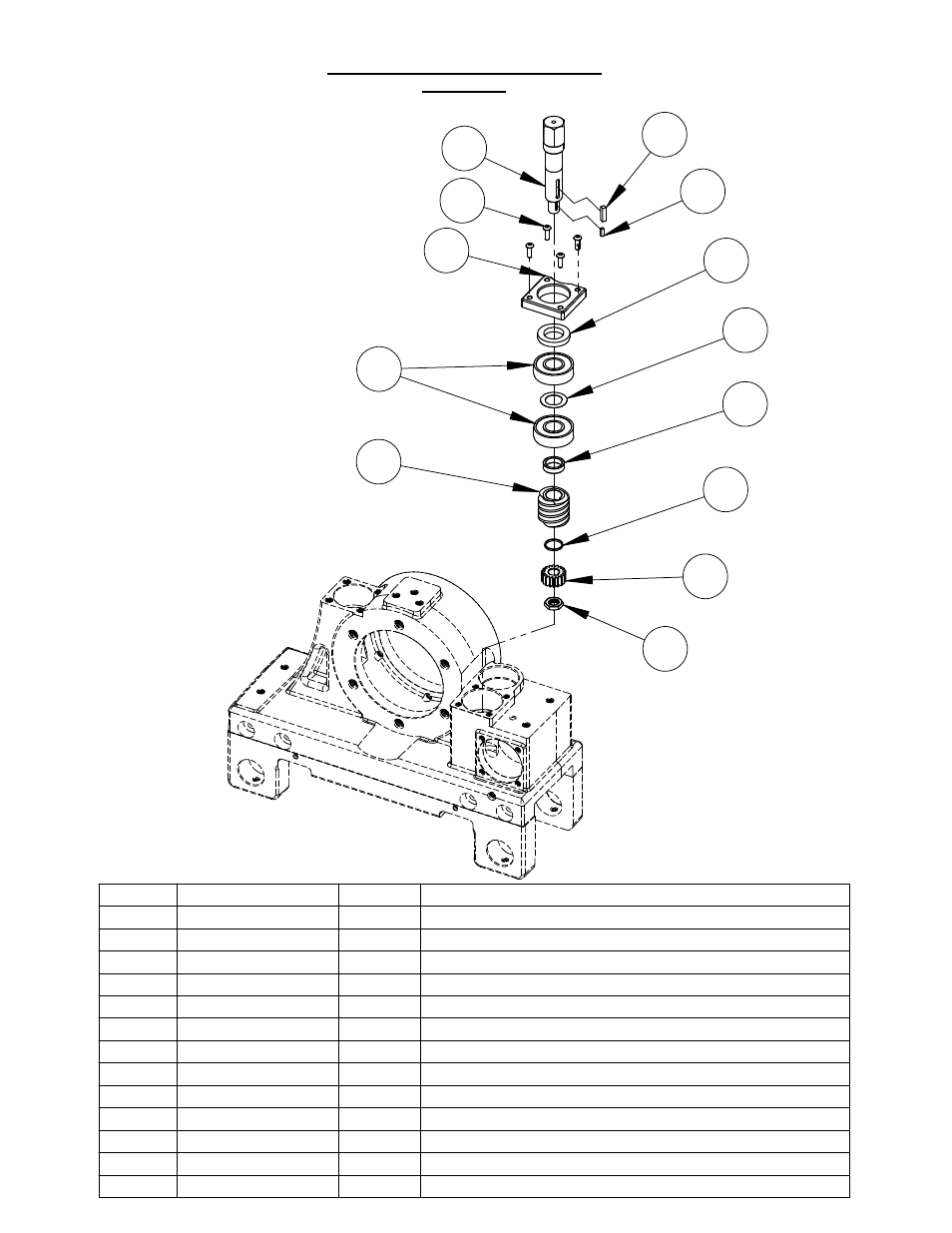

MANUAL TRAVEL ASSEMBLY
13
7
5
10
