ITEM PART NO. QTY. DESCRIPTION
1 6084039 1 Bearing Housing Mounting Plate
2 2900235 6 Cap Screw, Flat Hd., 3/8-16 x 1"
3 2501611 1 Tapered Roller Brg Cone; 3.250 ID
4 2501612 1 Tapered Roller Brg Cup, 4.5625" OD
5 6084038 1 Bearing Housing
6 2501610 1 Drive Shaft Seal
7 6084037 1 Main Drive Worm Gear
8 2900024 6 Lock Washer, 1/4" Split
9 2900620 6 Cap Screw, Soc. Hd., 1/4-28 x 5/8
10 2500706 1 Tapered Roller Brg Cone; 2.750 ID
11 2500707 1 Tapered Roller Brg Cup, 4.000 OD
12 6084148 1 .015" Worm Gear Shim
10 11
#6084036
RED LOCTITE (262) ALL #2 & #9 SCREWS
2
1
5
6
7
8
9
3 4

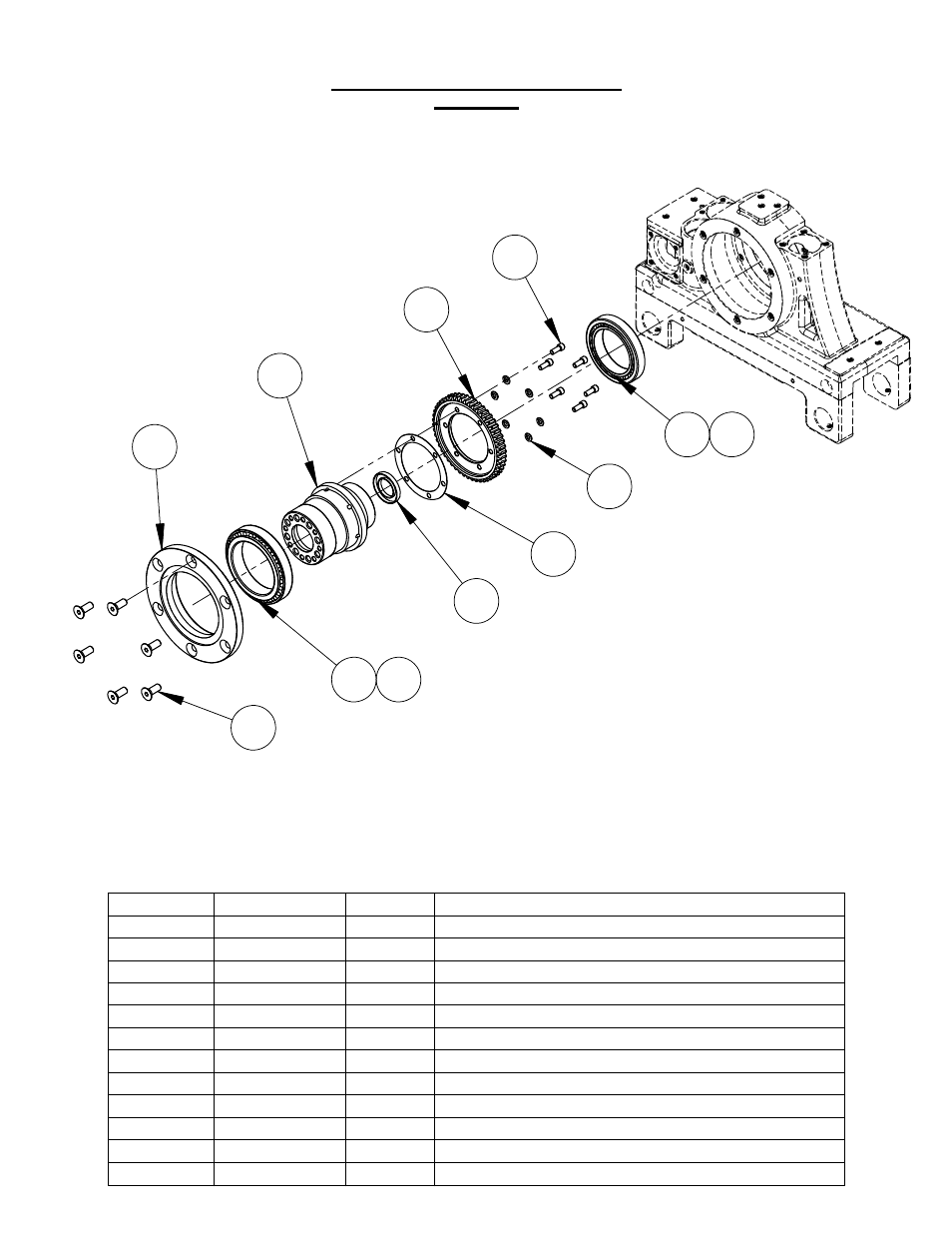

BEARING HOUSING ASSEMBLY
12
13
