Diamond Products SC3000 - Manual (Page 8)

1
9
4
9
3
7
14
13
8
4
11
12 10
5
2
7
14
13
8
11
12
10

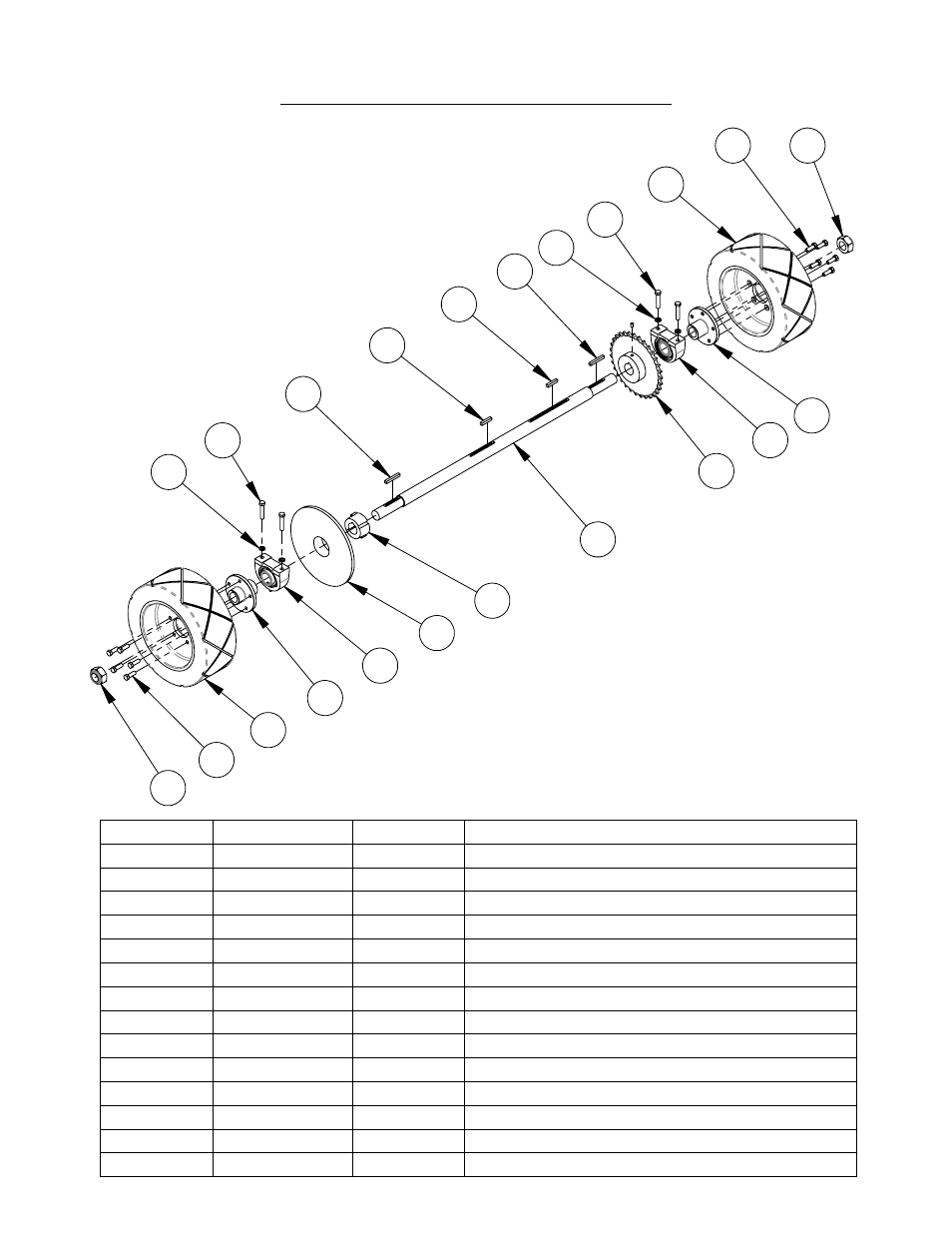

SC3000 Rear Axle Assembly 6040573
ITEM PART NO. QTY. DESCRIPTION
1 2502858 1 Rear Axle Shaft
2 6075232 1 Disk Brake Rotor (Fin.)
3 2502012 1 Sprocket
4 6011224 2 Key, 3/8 SQ. X 2"
5 2502834 1 Taper Bushing, 2" w/Setscrews
6 2900484 1 Set Screw, Soc. Hd., 3/8-16 x 5/8"
7 2502890 2 CS 1-3/4" PB Bearing
8 2502862 2 Rear Wheel Hub
9 6011058 2 Key, 3/8" Sq. x 2-3/4"
10 2901014 2 1-1/2-12 Stover Nut
11 2503325 2 6" Wheel
12 2903183 10 Wheel Bolt 1802Z
13 2900811 4 Cap Screw, Hex Hd., 1/2-13 x 2-1/2"
14 2900084 4 Lock Washer, 1/2" Split
