Sc3000 slot cutter, Sheet1, Drawing view1 – Diamond Products SC3000 User Manual
Page 5: Sc3000 slot cutter top assembly
2
1
2
3
7
4
5
6
8
9
11
10

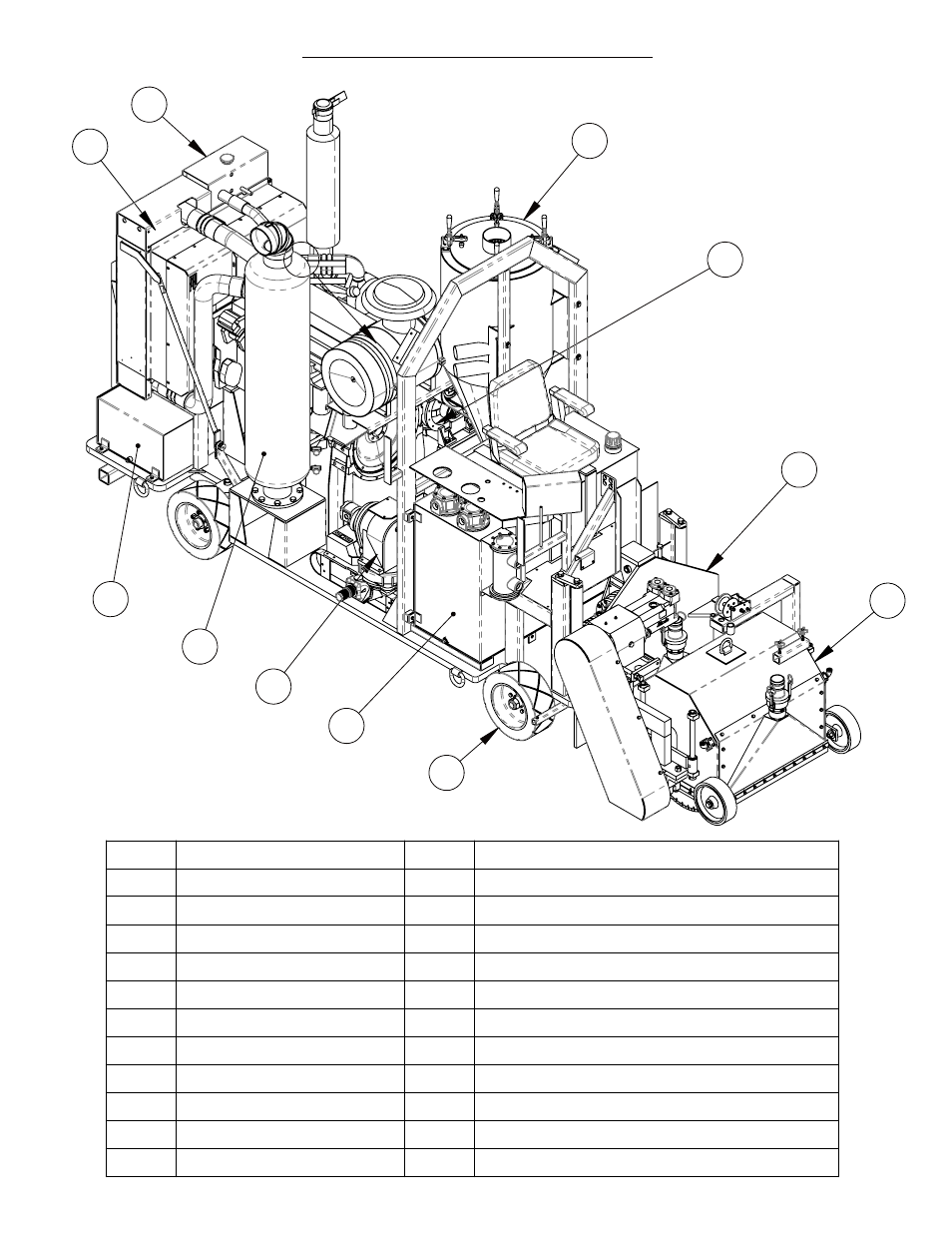

SC3000 Slot Cutter Top Assembly
ITEM
PART NO.
QTY.
DESCRIPTION
1
6040565
1
Chassis Subassembly, SC3000 Slot Cutter
2
6040566
1
Blower Subassy SC3000
3
6040571
1
Head Slide Subsssembly SC3000
4
6040582
1
Fuel Tank Subassembly SC3000
5
6040585
1
Silencer Subassembly SC3000
6
6040586
1
Trash Pump Subassembly
7
6040583
1
Hydraulic Tank Subassemby SC3000
8
2600445
1
Cummins Engine 300HP Turbo
9
6075229
1
Cyclone SC3000 Slot Cutter
10
6040584
1
Hydraulic Oil Cooler Subassemby SC3000
11
6040581
1
Blade Guard/Vacuum Box Subassembly SC3000
