Sheet1, Drawing view1, Drawing view2 – Diamond Products SC3000 User Manual

Page 10

background image

1

2

3

7

9

5

8

6

4

12

14

15

13

17

18

4

19

24

23

21

22

12

13

17

18

14

15

3

1

2

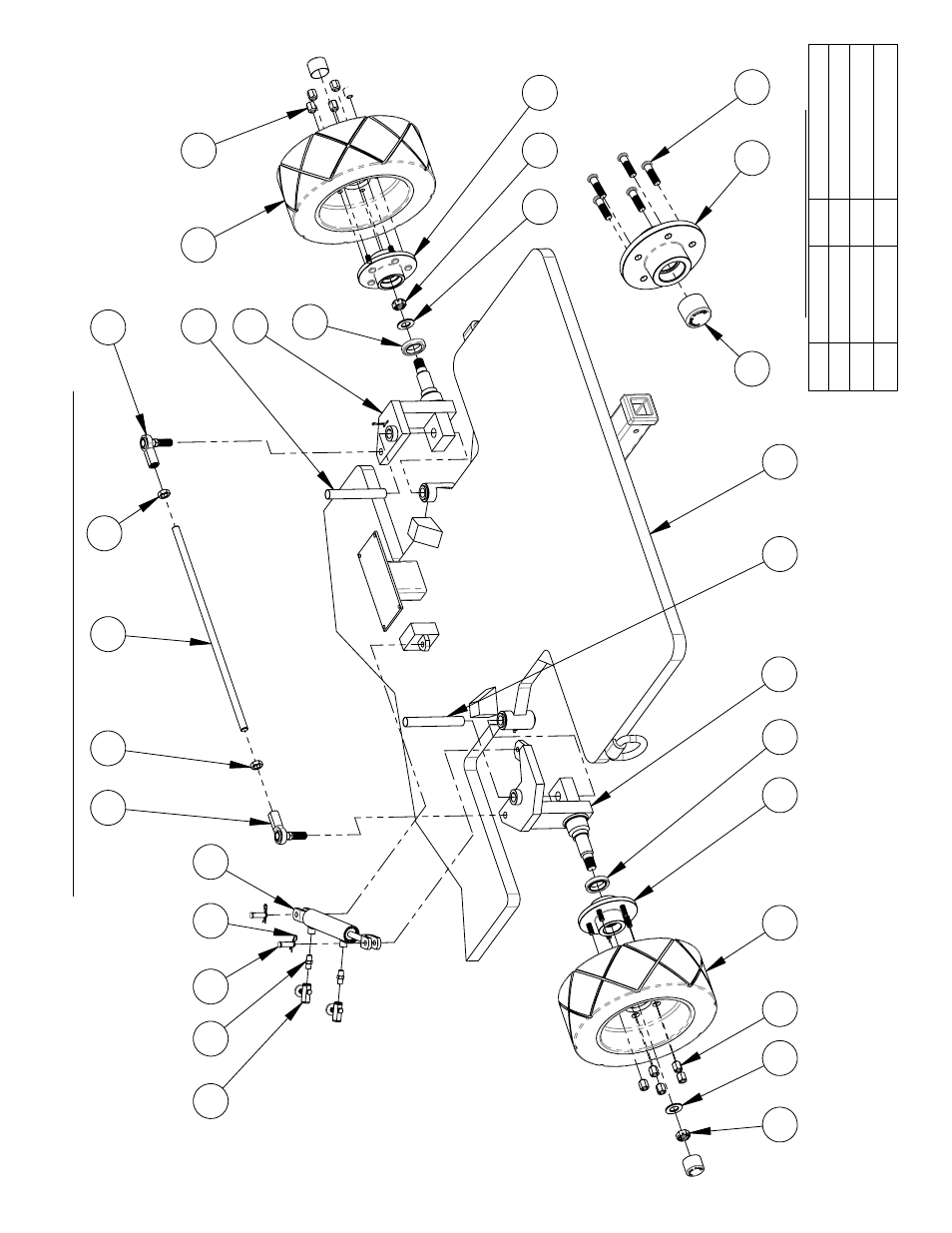

SC3000 Steering Link, Wheel Assembly 6040574

2503499 Hub Assembly

ITEM

PART NO.

QTY.

DESCRIPTION

1

2503499

1

Rear Wheel Hub

2

2503499-1

5

Lug Stud, 1/2-20

3

2503501

1

Bearing Buddy
