8
12
19
24 18
17
11
14 15 16 10
5
2 1
13
17
4
9
23
21
21 22
20
6
3
7
ITEM PART NO. QTY. DESCRIPTION
1 2800458 1 Fuel Gauge
2 2504452 1 Grommett 2"
3 2800470 2 Toggle Switch
4 6046035 1 Gauge Panel
5 2700785 1 Alternator Light -Orange
6 2700787 1 Oil Temperature Light - Red
7 2700786 1 Oil Pressure Light -Green
8 2702333 1 Temperature Gauge, VDO
9 1801385 1 Console Label
10 2500204 1 Plug, 1/2" Hole
11 6010416 1 Tach/Hour Meter (VDO) Calibrated
12 2400628 1 O-Ring #152
13 2703194 1 Ignition Switch & Key
14 2900016 6 Flat Washer, #10 USS
15 2900038 6 Lock Washer, #10 Split
16 2900159 6 Machine Screw, Rd. Hd., #10-24 x 5/8"
17 6043376 1 Console Lid Weldment
18 2801367 1 E-Stop Switch
19 2801376 1 E-Stop Nameplate
20 2501434 1 Hose Clamp, 5/8" x 3/4" Wide
21 2900022 2 Flat Washer, 5/16" SAE
22 2900039 1 Lock Nut, 5/16-18 Nylon
23 2900668 1 Cap Screw, Hex Hd., 5/16-18 x 7/8"
24 2501517 1 Dual Beam Light

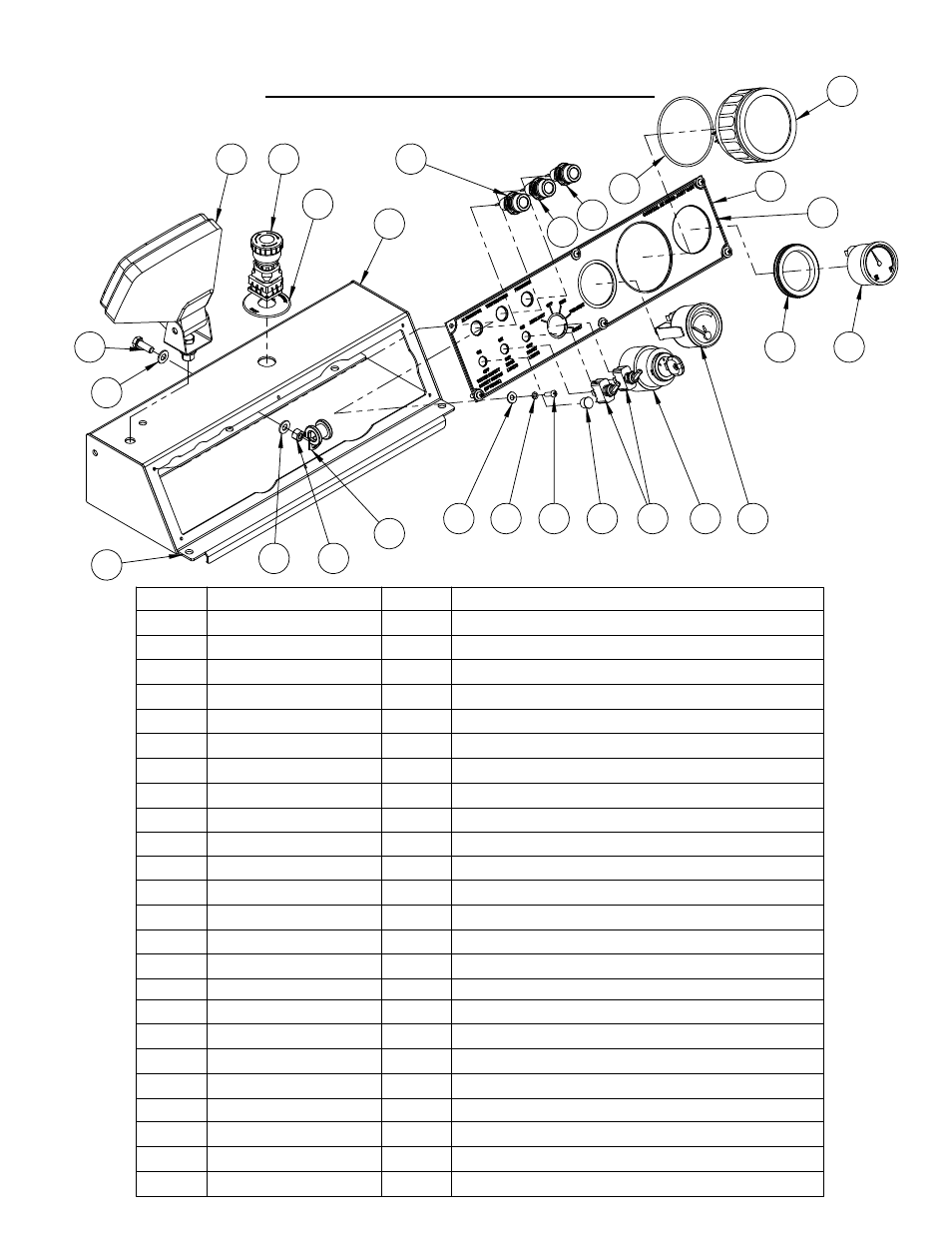

Instrument Panel Assembly #6043374
38
