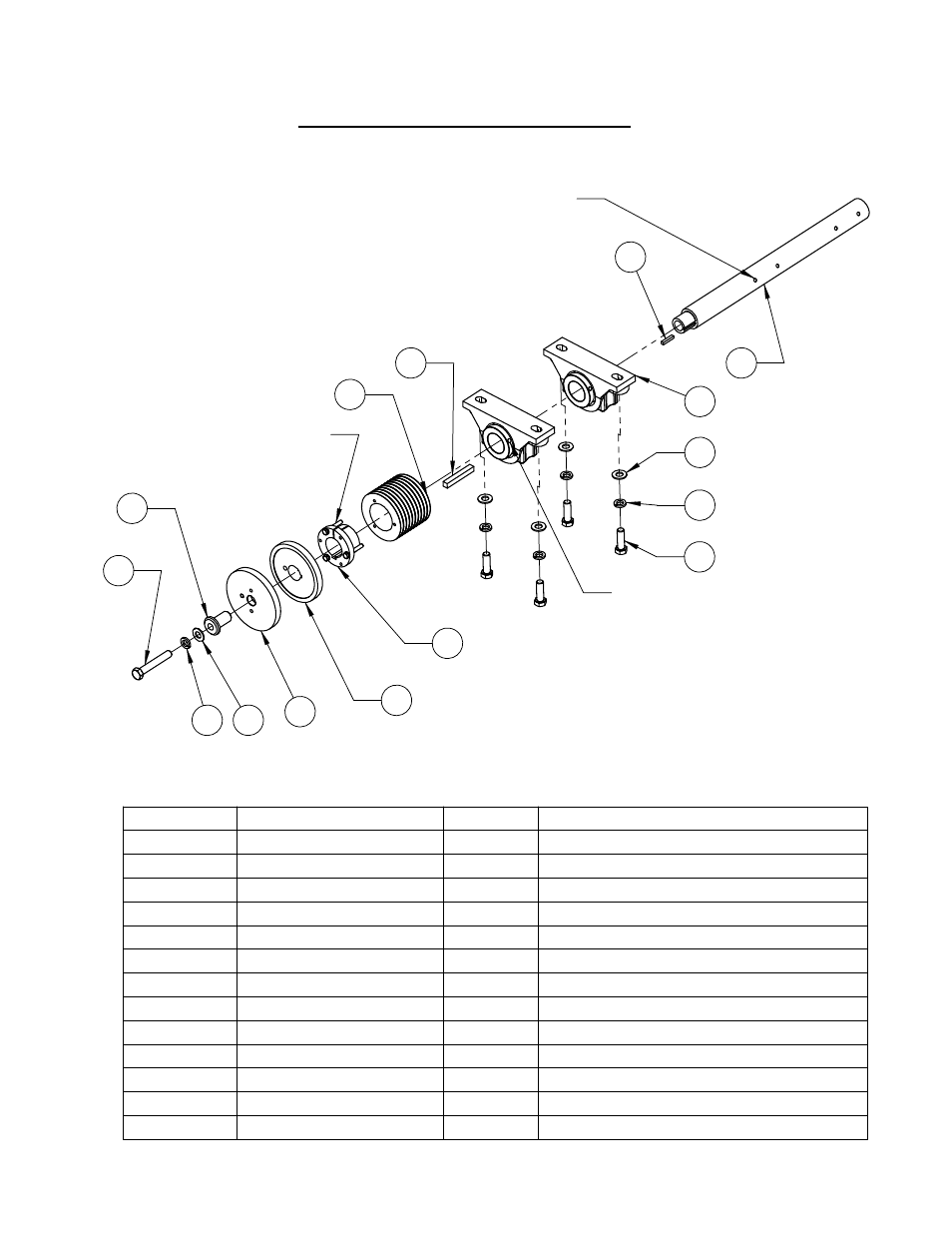

Blade Shaft Assembly #6046018
2
13
10 9
5
9
12
11
4
6
8
1
Apply Loctite #262 to set
screws on bearings (4 places)
Align setscrews on bearings with
dimples on bladeshaft (4 places)
Apply Loctite #262 to bolts
on bushing (3 places)
ITEM PART NO. QTY. DESCRIPTION
1 2501520 2 Bearing, 2" Pillow Block
2 6043286 1 ARBOR SHAFT 2"
3 2501647 1 Sheave 3V-4.75, 10 Groove QD Style
4 2500153 1 QD Bushing, SK x 2" w/Fasteners
5 6043259 1 Inside Collar
6 6040252 1 Stub Shaft
7 2900146 1 Cap Screw, Hex Hd., 5/8-11 x 4"
8 2501537 1 Key B17.1 0.5x0.5x3.5
9 2900002 5 Flat Washer, 5/8" SAE
10 2900113 5 Lock Washer, 5/8" Split
11 2900136 4 Cap Screw, Hex Hd., 5/8-11 x 2"
12 6049033 1 Outer Flange Assy CC7878
13 2501538 1 Square Key, 1/4 X 1-3/8"
