Diamond Products CC7874XL - Manual (Page 34)

ITEM PART NO. QTY. DESCRIPTION
1 6043373 1 Console Weldment
2 6043262 1 Tool Box
3 6043261 1 Battery Hold Down
4 6043263 1 Hose Support Tube Weldment
5 6043606 1 Access Panel Weldment
6 2900039 3 Lock Nut, 5/16-18 Nylon
7 2900014 12 Flat Washer, 3/8" SAE
8 2900018 1 Lock Nut, 3/8-16 Nylon
9 2900009 4 Flat Washer, 1/4" SAE
10 2900024 4 Lock Washer, 1/4" Split
11 2900144 4 Cap Screw, Hex Hd., 1/4-20 x 3/4"
12 6043496 1 Tool Box Pad CC7878
28
7
3
4
9
2
13
8
16
15
10
11
12
6
21
27
26
20
19
27 25 22

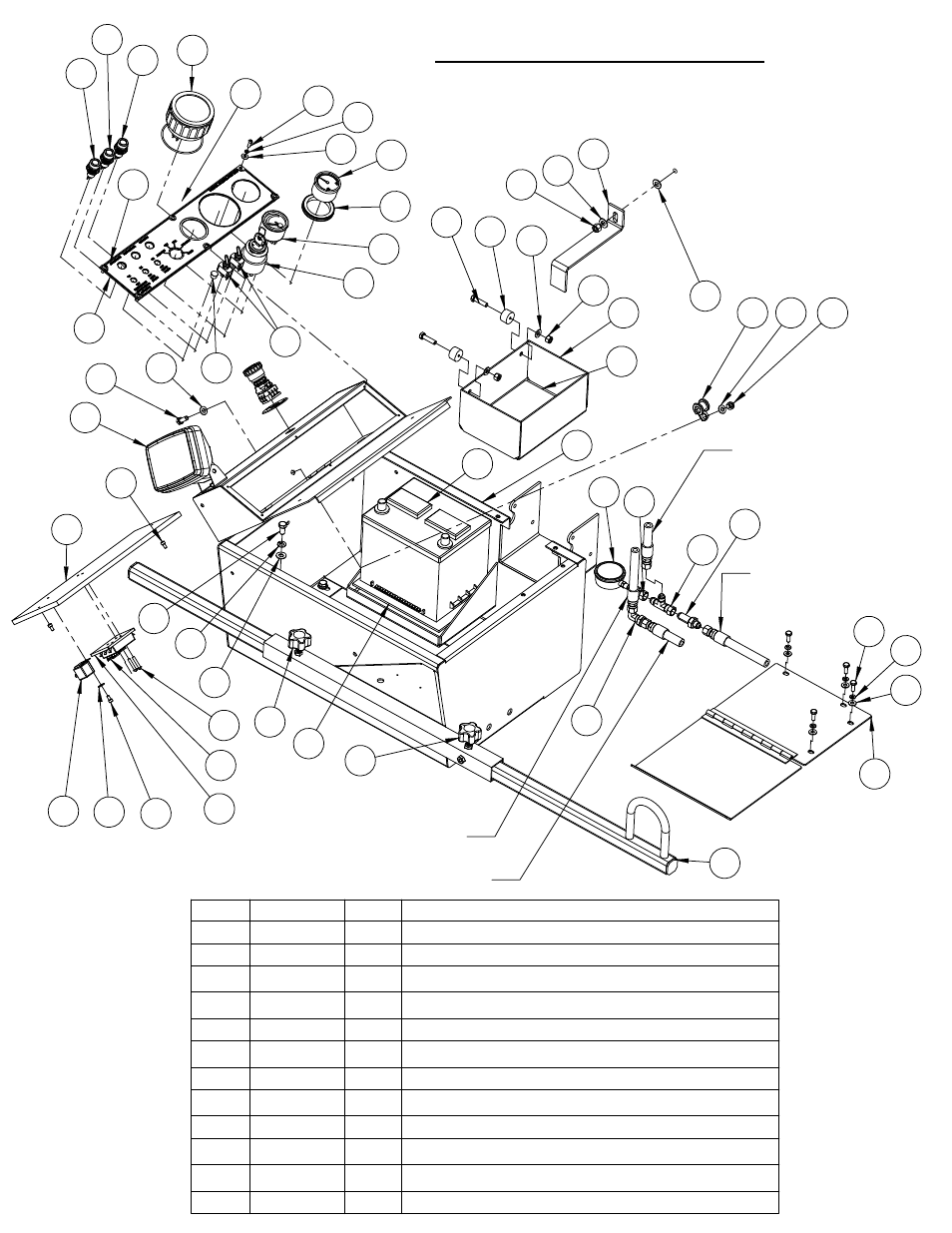

Console Components #6046613
3202166 - ATTACHES
TO PRESSURE
PORT ON PUMP
33
34
31
30
32
29
3202163- ATTACHES TO
'P' PORT ON STEERING
CONTROL UNIT
3202164 - ATTACHES TO FILTER 'IN' PORT
3202161 -
ATTACHES TO 'T'
PORT IN STEERING
CONTROL UNIT
4
14
1
36
36
4
5
35
37 38 8
39
38
49
47
46
45
17
18
50
48
23
24
54
53
52
51
43
44
40
34
