Diamond Products CB15E-XL User Manual
Page 25
12
13
4600295
4600296
5
RATING
MOTOR AMP
4
N.O. ONLY
SET TO
PHASE - OFF
4600293
4600294
TRIP CLASS - 10
RESET - A
4600297
DESCRIPTION
ITEM
PART
NO.
QTY.
4600298
1
2702419
1
Electrical Box (Base)
2
6040598
1
Sub-plate
3
2900676
4
Machine Screw, Pan Hd., M4-0.7 x
8mm
4
2801709
1
Contactor, 550-600V (includes coil)
2801267
1
Replacement Coil, 550-600V
5
2801699
1
Overload Relay, 9-45 AMP
6
2801676
1
Auxilary Contacts, 1NO-NC
7
2901437
4
Flat Washer, #10
8
2901827
4
Cap Screw, Soc. Hd., #8-32 x 5/8"
9
2800315
2
Grounding Lug
10
2900024
1
Lock Washer, 1/4" Split
ITEM
PART
NO.
QTY.
DESCRIPTION
11
2901891
1
Cap Screw, Hex Hd., 1/4-28 x 1/2"
12
2801636
1
E-Stop Switch, 600V
13
2801639
1
Pushbutton, N.O., 600V
14
6048296
1
Electric Box Cover, 2 Hole
15
2701414
4
Fastener, Electrical Box Top
16
4600293
1
Wire, 14 Gage, Yellow, 15"
17
4600294
1
Wire, 14 Gage, Yellow, 6"
18
4600295
1
Wire, 14 Gage, Black, 6"
19
4600296
1
Wire, 14 Gage, Black, 15"
20
4600297
1
Wire, 14 Gage, Red, 12"
21
4600298
2
Wire, 14 Gage, Red, 13"

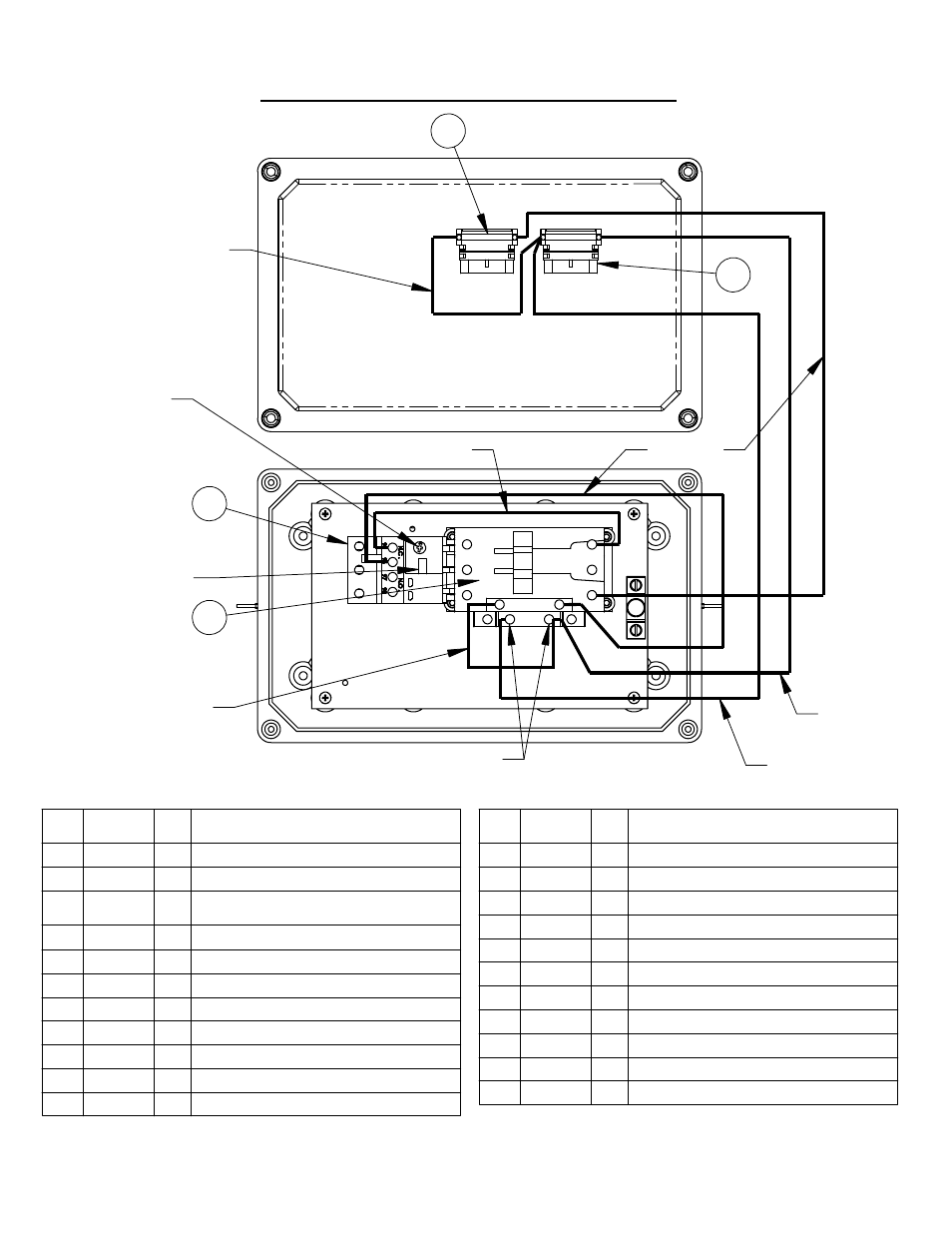

2801033 STARTER BOX, 550-600 VOLT
25
