Hose kit – Diamond Products CB15E-XL User Manual
Page 13
5
4
1
2
3
28.8
23.6
19.25
16.6
22.0

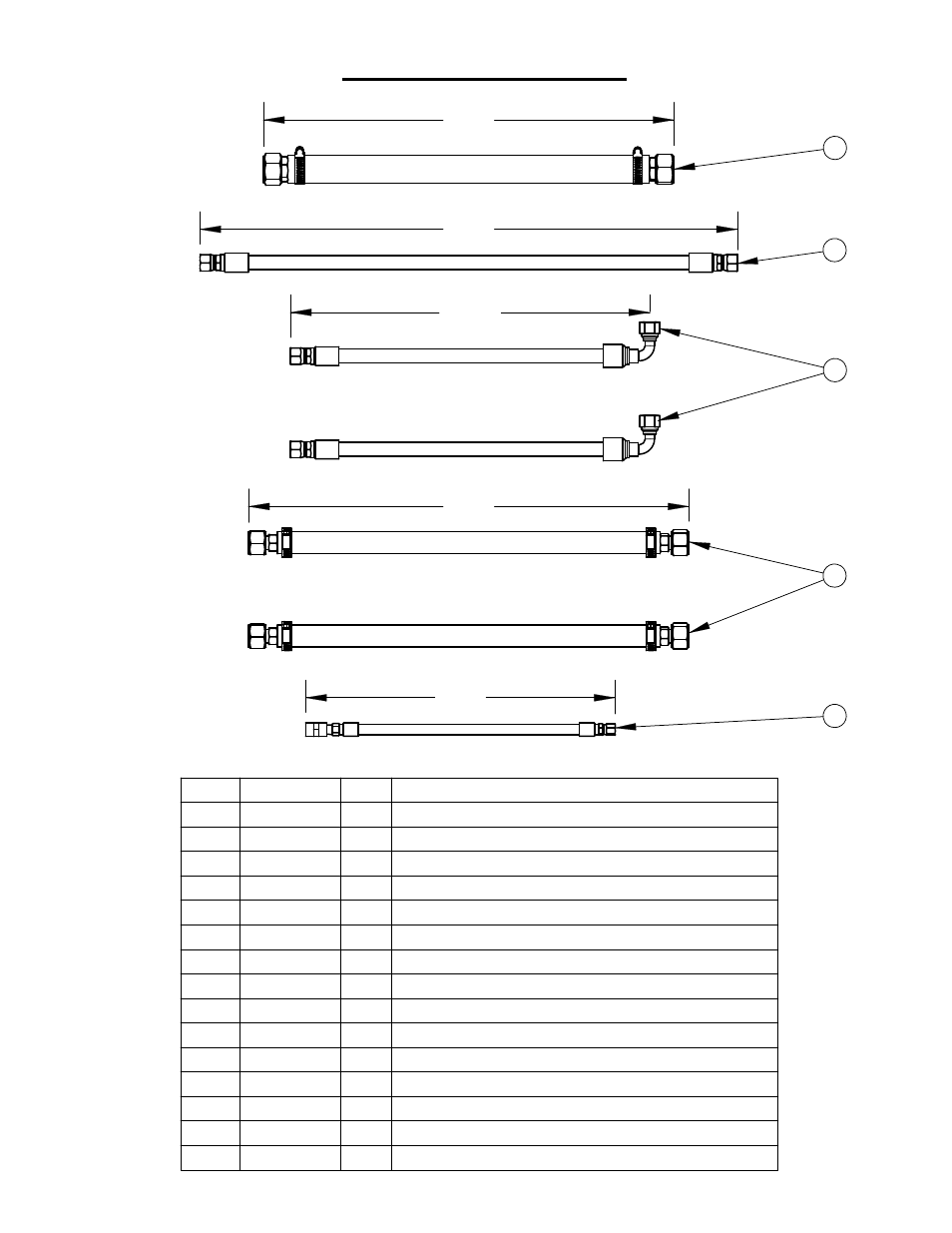

4646143 CB15XL HOSE KIT
ITEM
PART NO. QTY.
DESCRIPTION
1
4699980
1
Hose Assembly, 1 x 22"
3202317
2
Fitting, 1" FJIC to 1" Hose Barb
3200135
2
Hose Clamp #16
2
4646085
1
Hose Assembly, 1/2"X 28-3/4"
3200290
2
Fitting, 1/2" Female JIC to 1/2" Hose Crimp
3
4646056
2
Hose Assembly, 1/2" X 19-1/4"
3200290
1
Fitting, 1/2" Female JIC to 1/2" Hose Crimp
3200408
1
Elbow, 1/2" F. JIC to 1/2" Parkrimp 90 deg.
4
4646086
2
Hose Assembly, 3/4" x 23.6"
3201989
2
Fitting, 3/4" F.JIC to 3/4" Hose Barb
3200135
2
Hose Clamp #16
5
4646055
1
Hose Assembly, 1/4" x 16.6"
3200128
1
Fitting, 1/4" F. JIC to 1/4" Hose Crimp
3200145
1
1/4 MPT - 1/4 Hose Crimp
3201110
1
Coupling, 1/4" NPT
13
