Diamond Products CB15E-XL - Manual (Page 21)

2 6040598
6040300G 1
1 Sub-plate
3 2900676 4
Machine Screw, Pan Hd., M4-0.7 x
8mm
4 2801704 1 Contactor, 220-240V (includes coil)
2801265 1 Replacement Coil, 220-240V
5 2800899 1 Overload Relay, 13-52 Amp
6 2901827 6 Cap Screw, Soc. Hd., #8-32 x 5/8"
7 2901437 6 Flat Washer, #10
8 2800315 2 Grounding Lug
9 2900024 1 Lock Washer, 1/4" Split
Electrical Box Base 1

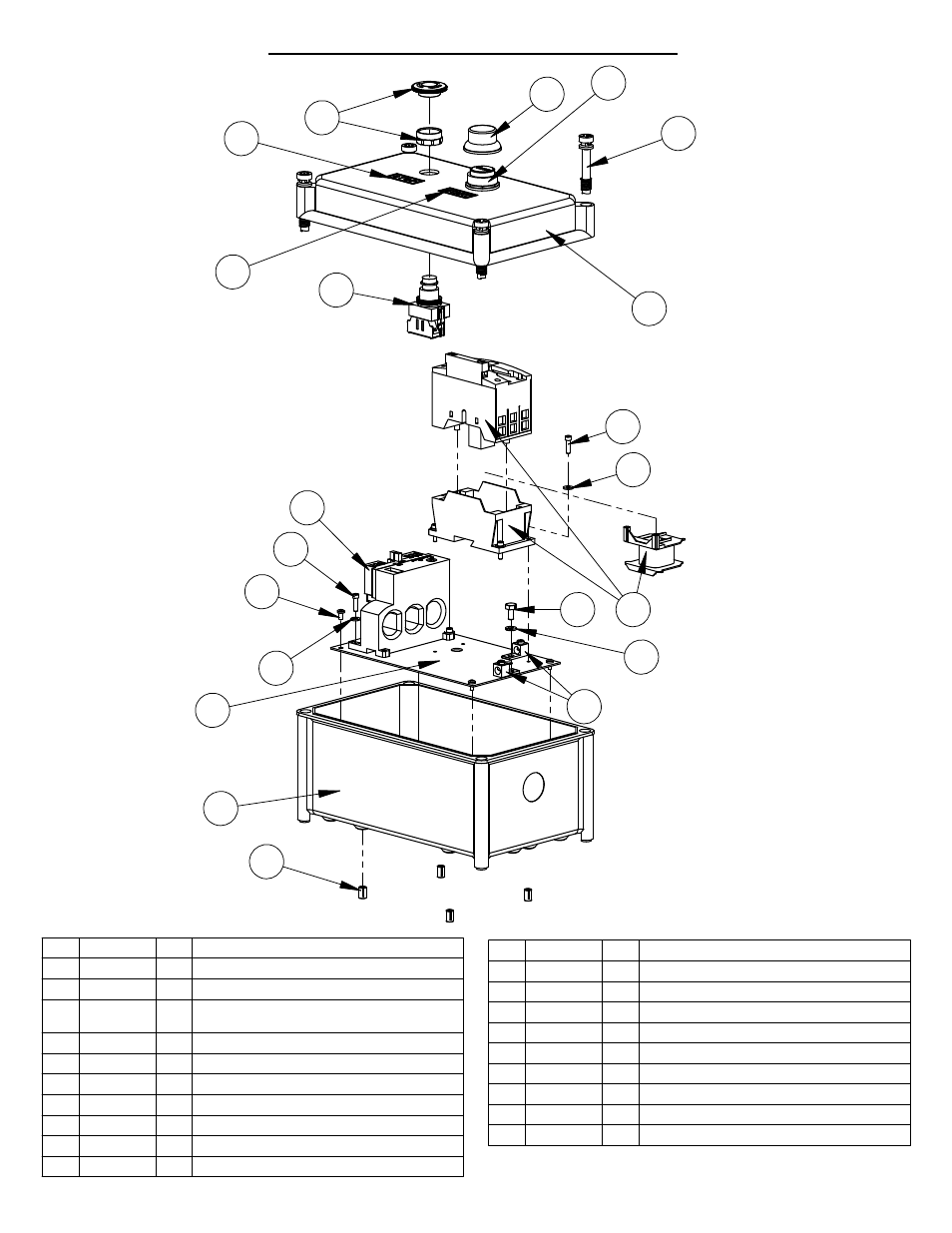

4600276 STARTER BOX 230 - 460 VOLT
ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION
10 2901891 1 Cap Screw, Hex Hd., 1/4-28 x 1/2"
11 2801636 1 E-Stop Switch, 600V
12 2800322 1 Start Button
13 2800222 1 Clear Protective Boot
14 6048339 1 Cover, Electric Box, 2 Hole
15 2701414 4 Fastener, Electrical Box Top
16 2901332 4 1/4-20 Threaded Insert
17 1801638 1 Decal, Start
18 1801639 1 Decal, Stop
