Diamond Products CC7074 - Manual (Page 72)

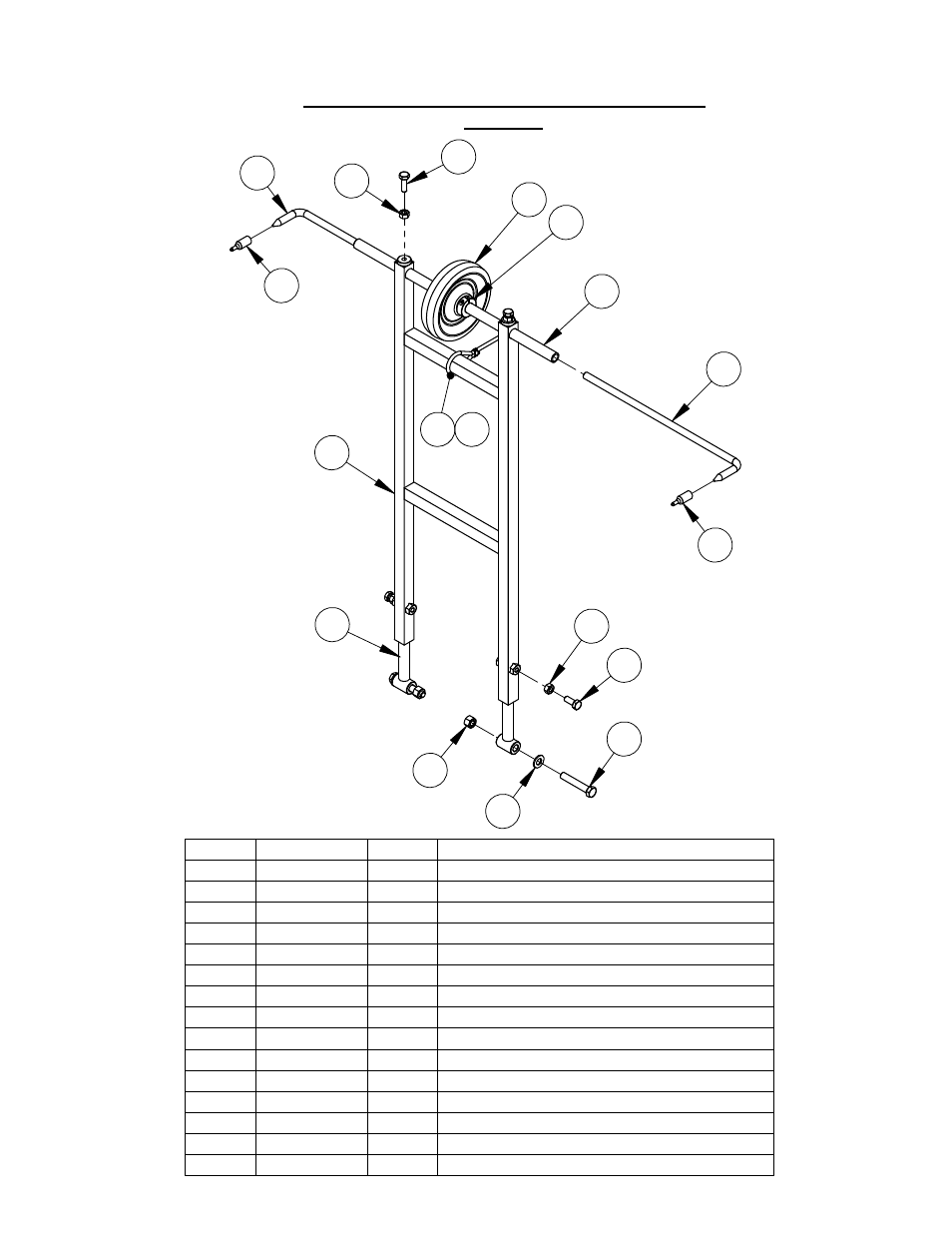

Dual Front Pointer Assembly #6011545
(Metric)
ITEM PART NO. QTY. DESCRIPTION
1 6011538 1 Front Pointer Frame, Dual, Metric
2 6011539 1 Pointer Tube, 20"
3 2504577 2 Shaft Collar, 3/4" Split
4 2504581 1 Wheel, 6"
5 6011536 2 Front Pointer Rod, 16"
6 2500740 2 Pointer Cap
7 2900223 2 Cap Screw, Hex Hd., M10-1.5 x 30mm
8 2900325 4 Hex Nut, M10
9 6011152 2 Front Pointer Arm
10 2900333 2 Cap Screw, Hex Hd., M10 x 25mm
11 2901345 2 Cap Screw, Hex Hd., M12-1.75 x 70mm
12 2900239 2 Friction Washer, 1/2"
13 2900327 2 Lock Nut, M12-1.75 Nylon Insert
14 6017241 1 Pointer Rope 11 Foot
15 3200221 2 Pinch Clamp, Two Ear
1
6
15
5
8
7
4
3
2
5
6
8
10
11
13
12
14
9
72
