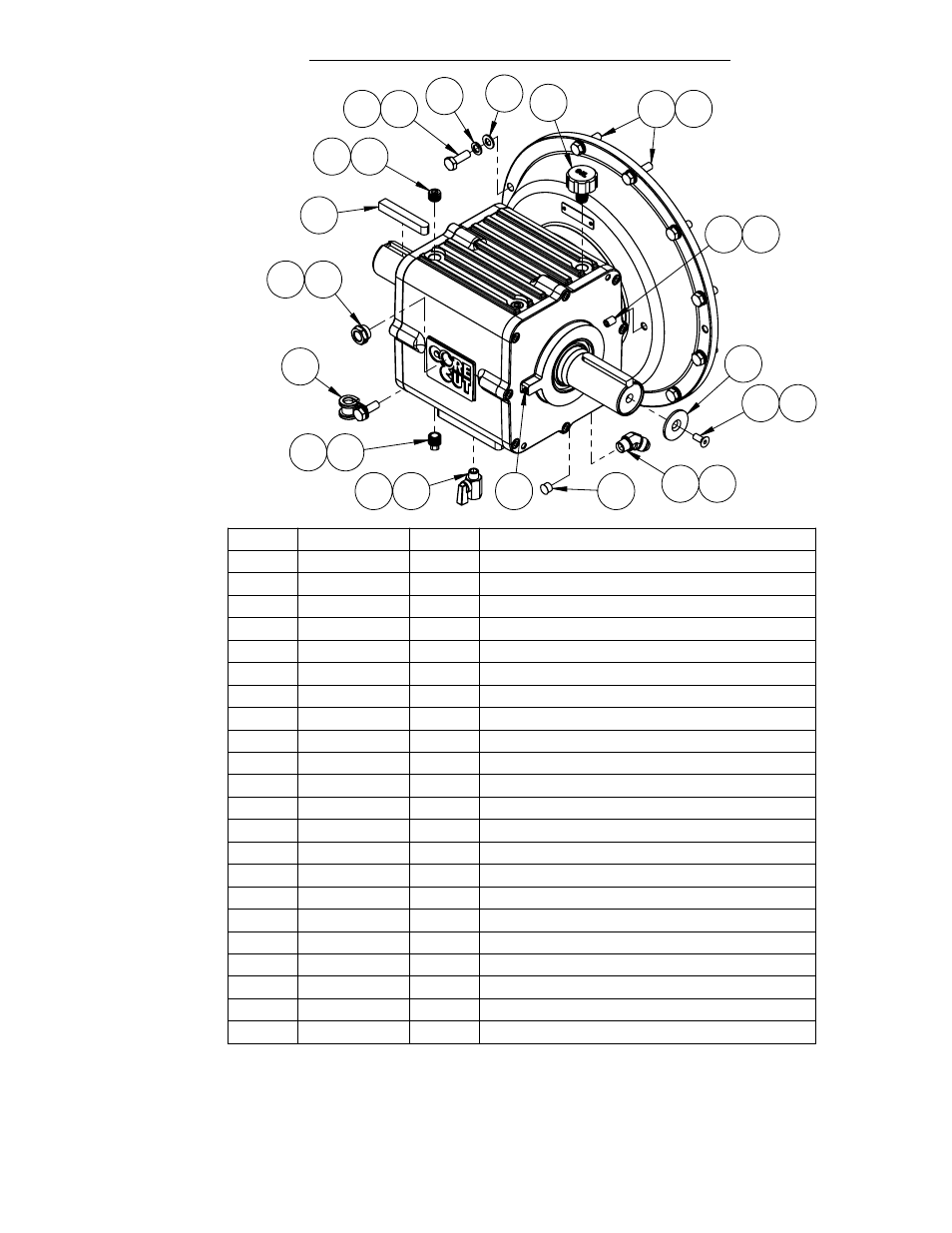

Bevel Gear Box without Clutch #6018158
7
15 11
14
21
9
5
17 4
19
1
1
1
1 6
18
16
20
2
1
22
12
2
3 13 3
Service Notes:
Relubricate bevel gear shaft seals with 2502046 synthetic grease at least weekly & after powerwashing. 1.
Apply 2503829 anti-seize to input shaft spline prior to installing gearbox. 2.
Change oil & clean breather vent every 100 hrs. Refill with 2503930 synthetic gear oil (50% of sight glass). 3.
Drain water jacket after each use by opening 3200108 ball valve and placing saw in lowest cutting position. 4.
Close ball valve before next use.
ITEM PART NO. QTY DESCRIPTION
1 2401311 AR Loctite #567 Thread Sealant
2 2401315 AR Loctite #242 Blue
3 2401316 AR Loctite #262 Red
4 2500204 1 Plug, 1/2" Hole
5 2501434 1 Hose Clamp, 5/8" x 3/4" Wide
6 2502046 AR Grease, Fuchs Synthetic
7 2503720 1 Filler Breather Cap, 3/8" NPT
8 2503829 AR Loctite Anti-Seize
9 2503872 1 M20 x 1.5 Sight Glass /w Reflector
10 2503930 3qt Gear Oil, 75W90 Synthetic
11 2900321 11 Lock Washer, M10 Split
12 2900611 2 Cap Screw, Flat Hd., M8 x 1.25 x 20mm
13 2900799 2 Cap Screw, Hex Hd., M10-1.25 x 40mm
14 2900870 9 Cap Screw, Hex Hd., M10 x 1.25 x 30mm
15 2901356 11 Flat Washer, M10
16 2901500 2 Set Screw, Soc. Hd., M10 x 1.25 x 16mm
17 3200108 1 Ball Valve, 1/4" NPT
18 3200476 2 Hex Socket Pipe Plug, 3/8" NPT
19 3201889 2 Elbow, 1/2"M.JIC to 3/8"M.NPT, 45 deg
20 3201999 2 Magnetic Pipe Plug, 3/8" NPT
21 6018178 2 Key, 1/2" Sq. x 3-7/16"
22 6018199 2 Countersunk Fender Washer
