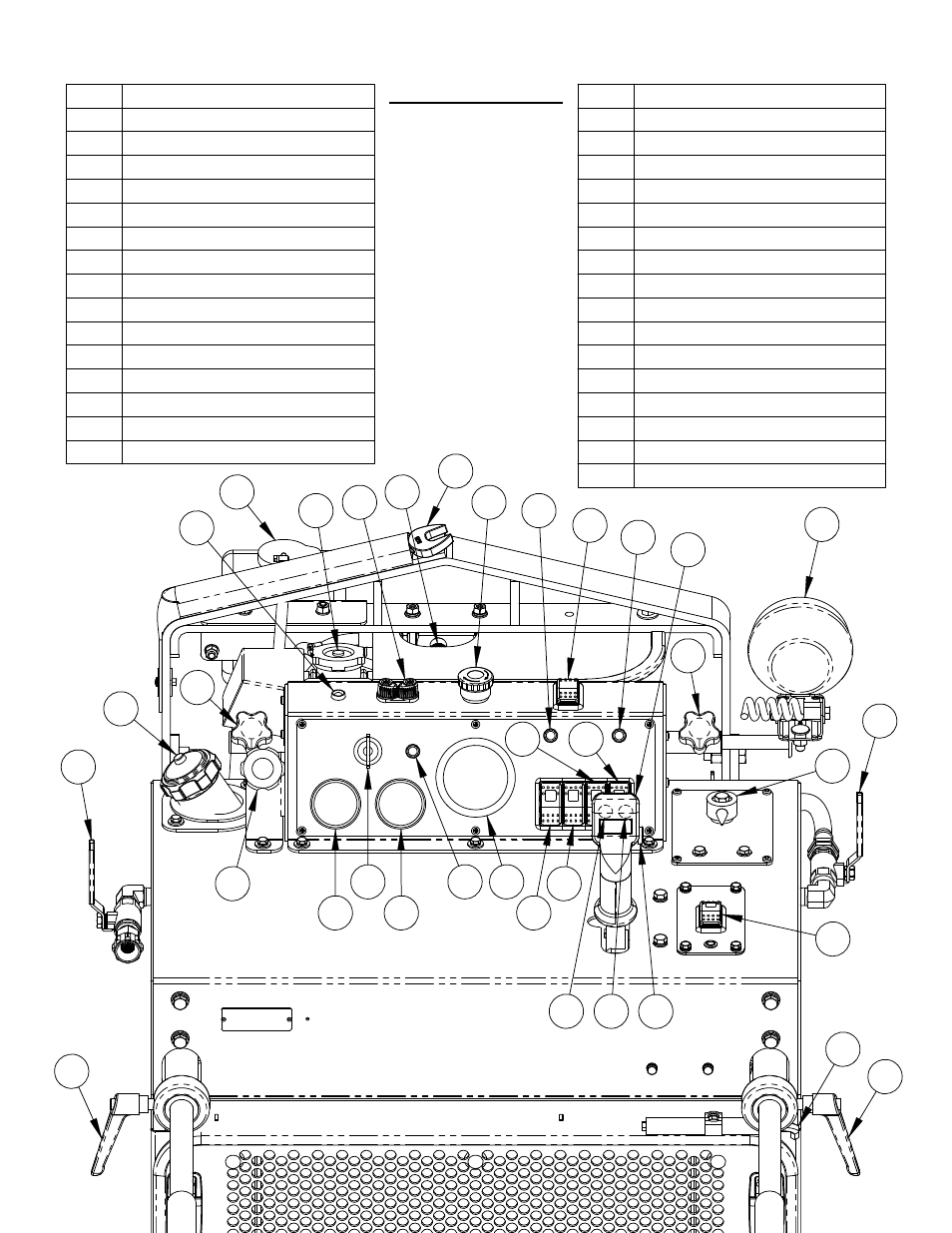

Controls Legend
17 Auto Water System Switch
18 Free Wheel Rocker Switch
19 Spot Light Rocker Switch
20 Water Pump Switch (Optional)
21 Travel Speed Control Lever
22 Saw Raise Push Button
23 Saw Lower Push Button
24 Tilt Handle Bar Push Button
25 Blade Clutch Rocker Switch
26 Cutting Depth Indicator
27 Spot Light
28 Spot Light Adjustment Knob
29 Water On/Off Control Valve
30 Water Metering Control Valve
31 Fuel Filler / Gauge Cap
32 Handle Bar Lock Lever
33 Speed Control Friction Wrench
1 Ignition Switch
2 Coolant Temperature Gauge
3 Engine 4 Warning Light Gauge
4 Low Fuel Light
5 Blade Tachometer / Hour Meter
6 Engine Throttle Control
7 Blade Gearbox Temp Light
8 Coolant Recovery Tank Cap
9 Radiator Filler Cap
10 Pointer Rope Cleat
11 Lowering Speed Control Valve
12 Blade Shaft Wrench
13 Emergency Stop Button
14 Blade Depth Stop Rocker Switch
15 Low Blade Water Light
16 Blade Depth Set Light
33
5
31
30 26
29
27
9
10
11
13
24
25
32
32
22
14
3
1
2
6
28
15
28
23
17
18
19 20
16
21
7
8
4
12
