Diamond Products CC7074 - Manual (Page 30)

ITEM PART NO. QTY DESCRIPTION
1 6017382 1 Front Axle Weldment
2 6010581 2 Wheel Assembly, 8" Front
3 6010536 2 Wheel Cover
4 2501393 2 Wheel Cover Gasket
5 2900159 8 Machine Screw, Rd. Hd., #10-24 x 5/8"
6 2900038 8 Lock Washer, #10 Split
7 2900330 2 Cap Screw, Hex Hd., M12-1.75 x 30mm
8 2900699 2 Lock Washer, M12 Split
9 2901339 2 Fender Washer, M12
10 2900400 4 Cap Screw, Hex Hd., 1/2-13 x 3-3/4"
11 2900084 4 Lock Washer, 1/2" Split
12 2900058 4 Flat Washer, 1/2" SAE
13 2500158 2 Pillow Block Bearing 1-1/4"
14 2900184 1 Grease Fitting, 1/4" NPT x 45 degree
15 6017144 1 Front Axle Arm
16 2900314 2 Cap Screw, Hex Hd., M10-1.5 x 20mm
17 2900321 2 Lock Washer, M10 Split
18 2901356 2 Flat Washer, M10

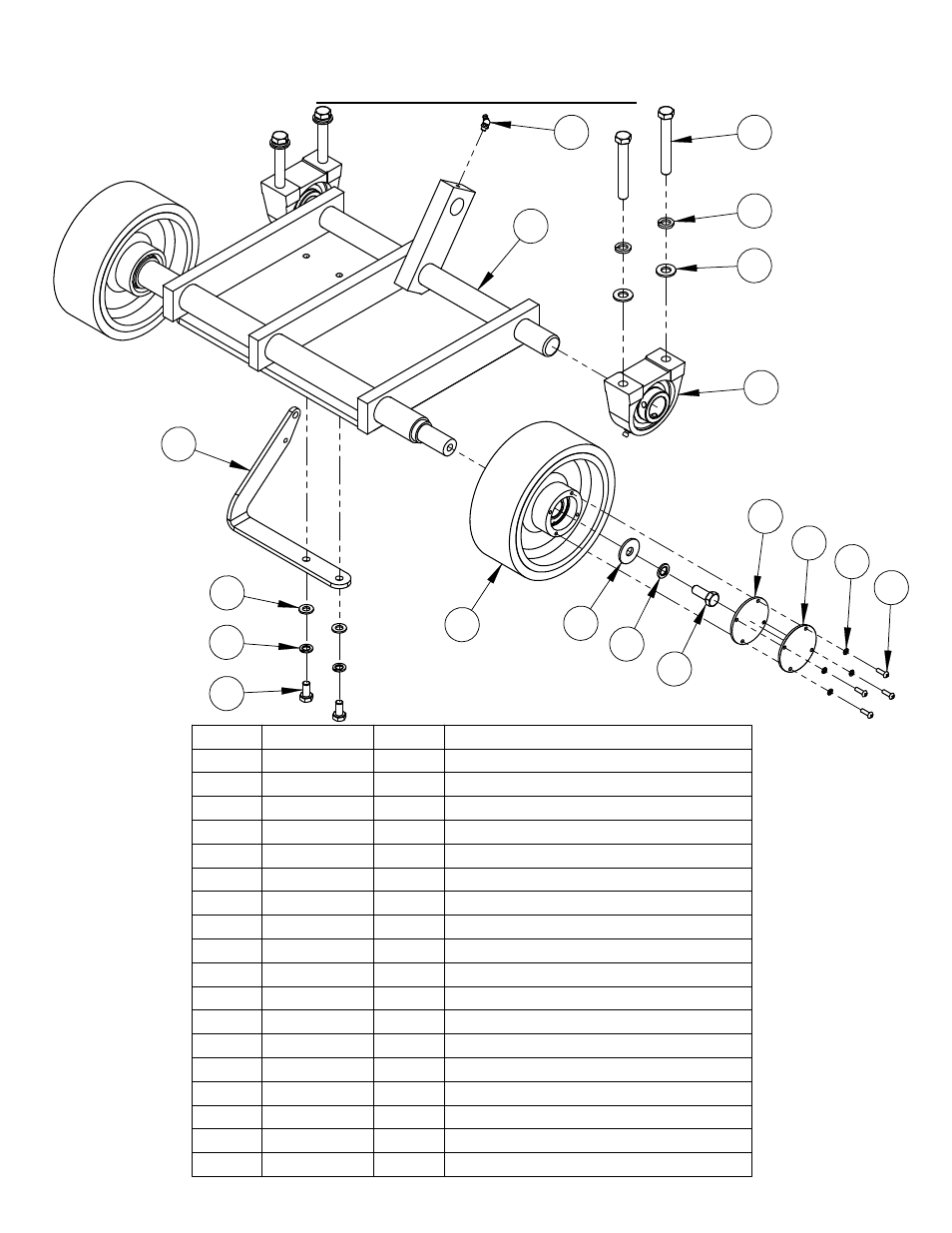

Front Axle Assembly #6017413
15
5
6
3
4
9
8
7
2
13
12
11
10 14
18
17
16
1
