Depth indicator cable assembly – Diamond Products CC7074 User Manual
Page 25

ITEM
PART NO.
QTY
DESCRIPTION
1
6017149
1
Depth Indicator Cable with Crimp, 52"
2
2500196
1
Spring, 3/8" x 15"
3
2900548
1
Eyebolt, 1/4-20 x 1"
4
2900125
1
Hex Nut, 1/4-20
5
2503731
1
Snap Hole Bushing 1/2"
6
2503724
1
Wire Rope Pulley
7
2900021
4
Tap Screw, Pan Hd., #10-24 x 3/8"
8
2900038
4
Lock Washer, #10 Split
9
2900261
1
Clevis Pin, 3/8" Dia. x 3/4"
10
2900014
2
Flat Washer, 3/8" SAE
11
2501189
1
Wire Stop Fitting & Screw
12
6017233
1
Slurry Shield
13
6048127
2
Spacer Tube, 1-1/8" Long
14
2900317
2
Cap Screw, Hex Hd., M10-1.5 x 45mm
15
2900321
2
Lock Washer, M10 Split
16
2901356
4
Flat Washer, M10
17
2900223
1
Cap Screw, Hex Hd., M10-1.5 x 30mm
18
2900304
1
Lock Nut, M10-1.5 Nylon Insert

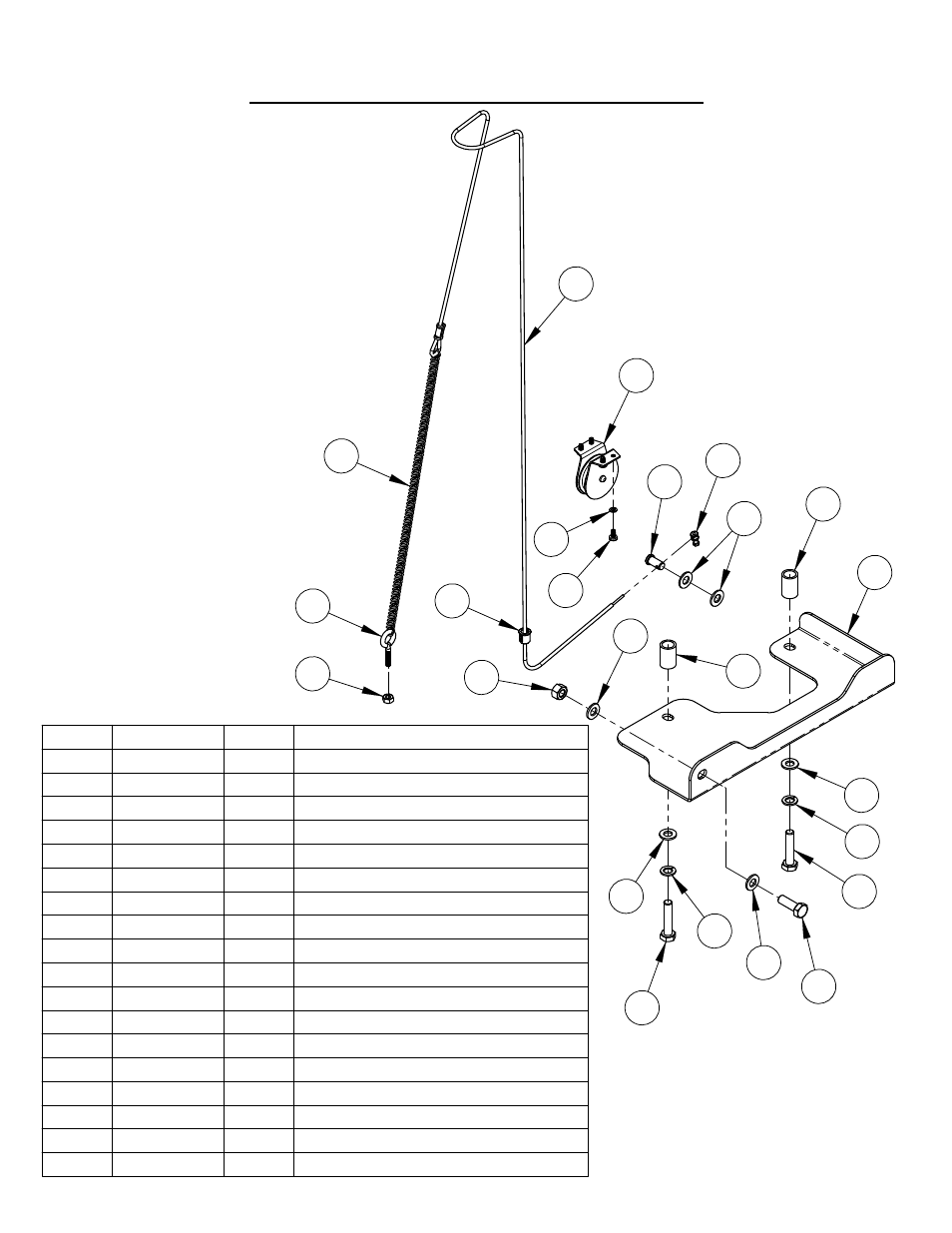

Depth Indicator Cable Assembly #6017408A
2
4
3
5
9
7
8
11
13
13
18
12
6
1
16
15
14
16
17
16
15
14
10
16
25
