CC4144D Concrete Saw Manual 5
Introducing the CC4144D
Controls

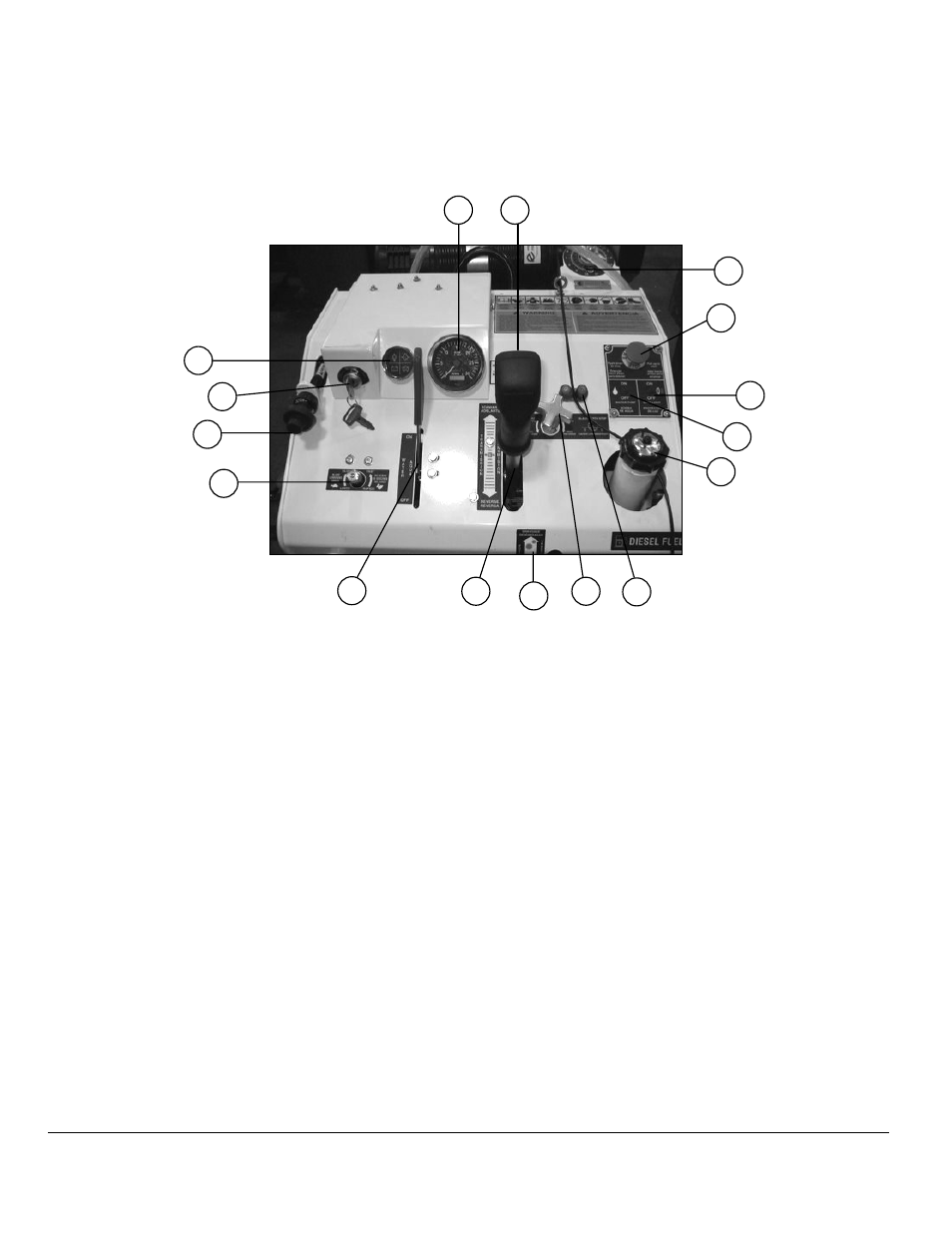

Figure 1: CC4144D Controls
1. Engine Tachometer/Hour Meter–Indicates
engine rpm; total saw hours operated.
2. Warning Light Gauge–Indicates high coolant
temperature, low battery voltage, low oil
pressure, and/or an energized glow plug.
3. Ignition Switch–Starts engine.
4. Vernier Throttle–Increases or decreases
engine rpm.
5. Blade Lowering Speed Valve–Increases or
decreases blade’s lowering speed.
6. Water Lever–Increases or decreases water flow
to blade.
7. Speed Control Lever–Forward/neutral/reverse
control for saw.
8. Positraction Lever–Engages or disengages
positraction (rear pivot saw).
9. Depth Stop Knob–Increases or decreases
cutting depth.
10. Cable Cleat–Secures front pointer cable.
11. Fuel Tank Cap–Fuel port; indicates fuel level.
12. Water Pump Switch (Optional)–Powers water
pump.
13. Spotlight Switch (Optional)–Turn spotlight on
or off.
14. Emergency Stop Button–Stops engine.
15. Cutting Depth Indicator–Indicates blade’s
depth from surface.
16. Control Grip–Pushbuttons raise or lower saw
and blade.
2
3
4
5
1
15
16
11
12
13
14
10 9 7 6
8
