Diamond Products CC1100 - Manual (Page 8)

11.2
11.5
11.4
11.3
8
5
4
3
9
10
7
6
2
10
10
10
10
11.1
11

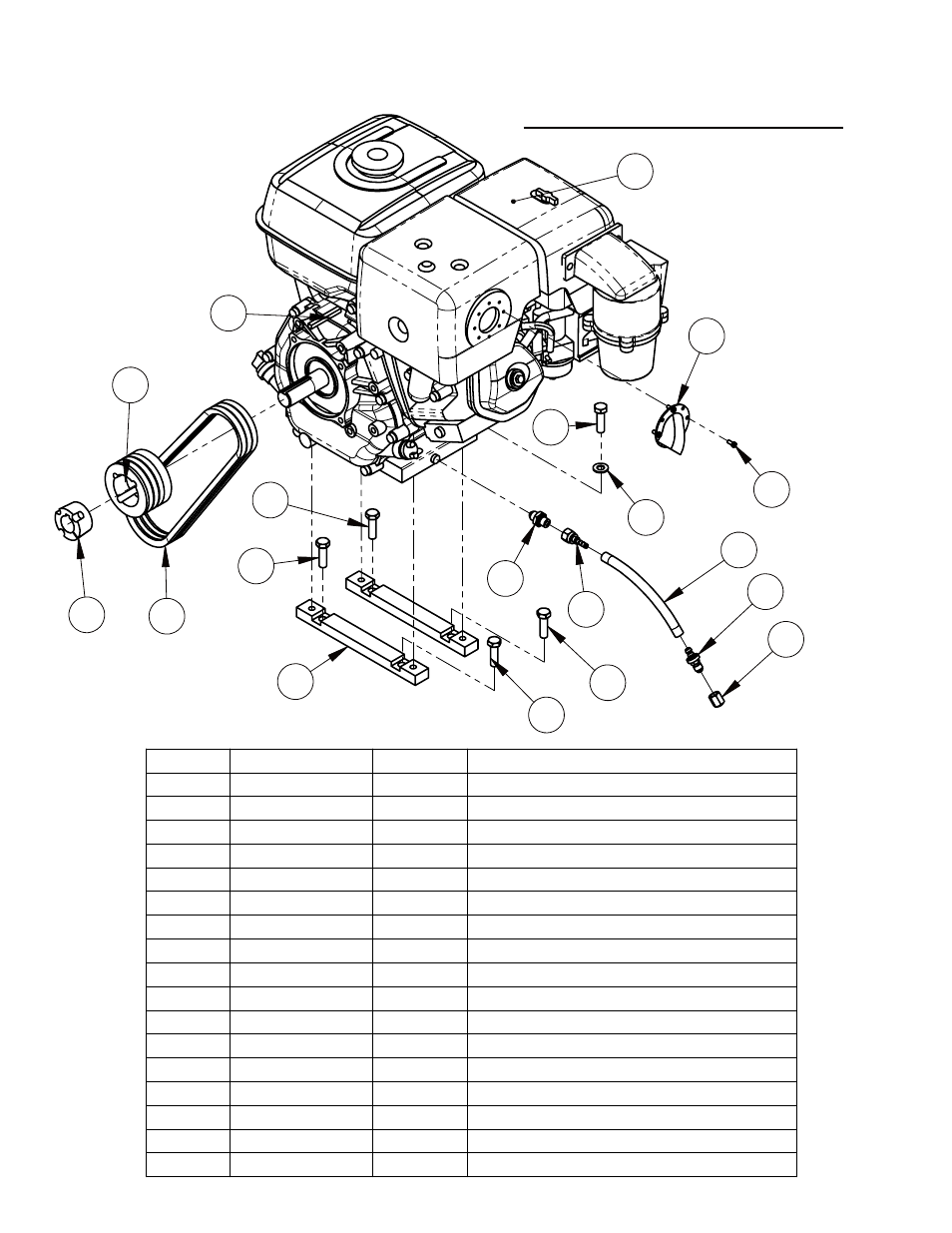

GAS ENGINE PARTS #6040609
ITEM PART NO. QTY. DESCRIPTION
1 2600116 1 Engine,11 HP Honda GX390
2 6040707 2 Motor Mount Adapter
3 6048134 1 Key, 1/4" Sq. x 2-1/4"
4 2500028 1 Taper Bushing, 1" w/ Set Screws
5 2500024 1 Sheave, 3.15-3 Groove
6 2500380 3 V-Belt, 3VX300 (Regular Cut)
6 2500034 3 V-Belt, 3VX315 (Up-Cut)
7 2700554 1 Muffler Deflector, 11-13 HP Honda
8 2900206 3 Screw, Self Tapping, #8-32 x 3/8"
9 2900014 4 Flat Washer, 3/8" SAE
10 2900315 8 Cap Screw Hex Hd., M10-1.5 x 35
11 6048029 1 Oil Drain Assembly
11.1 3200539 1 Adapter, M12 x 1.5 M to 5/16" Male JIC
11.2 3200540 1 Fitting, 5/16" F. JIC to 1/4" Pushlock
11.3 3200006 1 Cap, 1/4" JIC
11.4 3200040 1 Fitting, 1/4" M. JIC to 1/4" Push Lock
11.5 6048289 1 1/4" x 6.00" Oil Drain Hose
8
