Diamond Products CC1100 - Manual (Page 10)

11
12
14
13
12
2
8
7
6
17
10
4

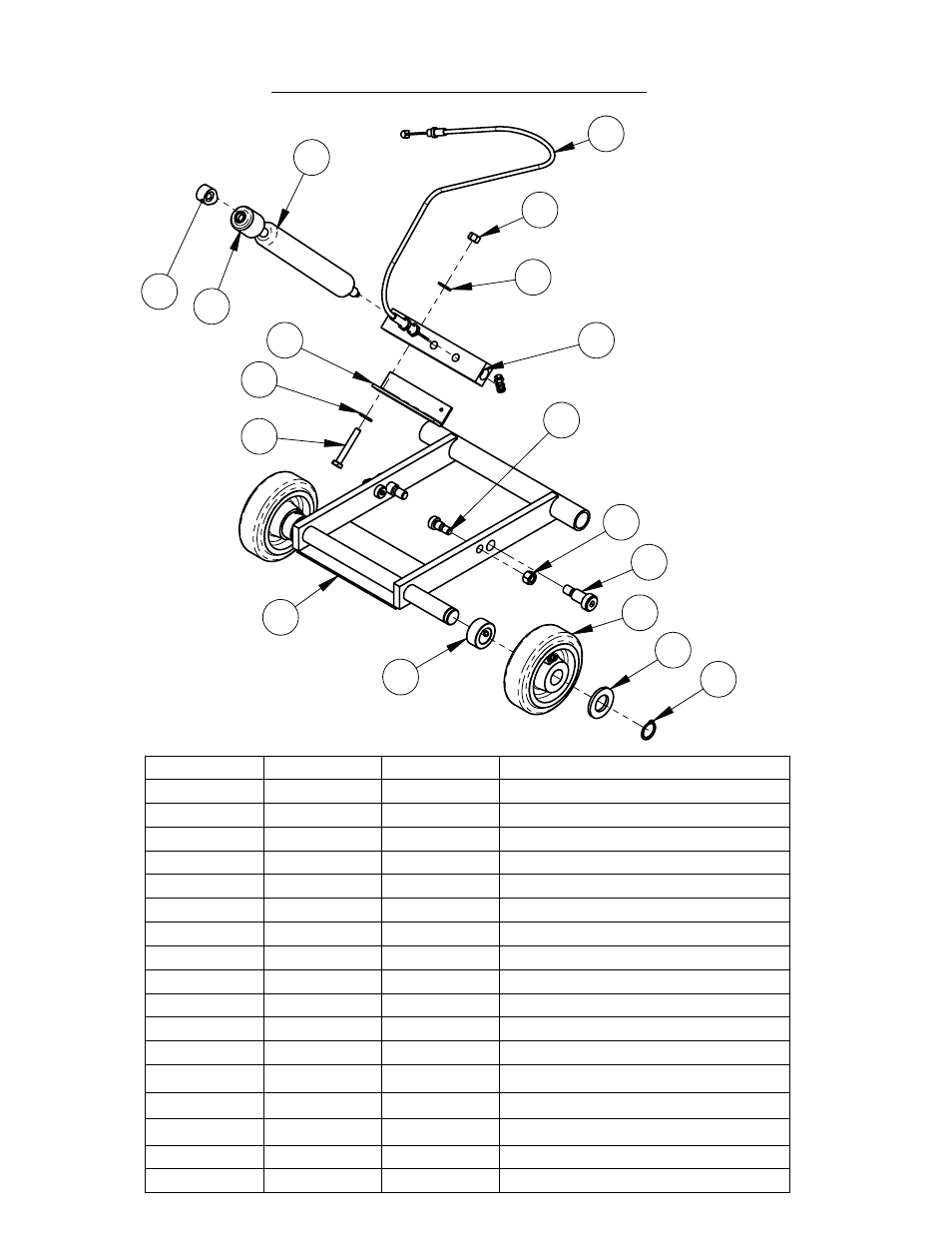

FRONT AXLE ASSEMBLY, #6040708
9
16
15
1
3
5
ITEM PART NO. QTY DESCRIPTION
1 6040703 1 Front Axle Weldment
2 6040710 1 Release Plate
3 6040711 1 Mounting Plate
4 2503752 2 Wheel 4" X 1-1/2" X 3/4"
5 2501186 2 Retaining Ring, External 3/4"
6 2505083 1 Spring, Gas
7 2505084 1 Gas Spring Seal Protector
8 2505087 1 Clevis, M12
9 2506324 1 Cable Assembly, Gas Spring
10 2900003 2 Flat Washer, 3/4" SAE
11 2900010 1 Lock Nut, 1/4-20 Nylon
12 2900009 2 Flat Washer, 1/4" SAE
13 2900392 1 Cap Screw, Hex Hd., 1/4-20 x 1-3/4"
14 2900259 2 Shoulder Screw, 1/2" x 3/4" (3/8-16)
15 2900253 2 Shoulder Screw, 3/8 x 3/8" (5/16-18)
16 2900039 2 Lock Nut, 5/16-18 Nylon
17 2400615 2 Set Collar, 3/4" 10
