Diamond Products CC1100 - Manual (Page 11)

19
9
18
9
17
16
15
10
4
5
3
14
9
20
1
11
6
2
7
8
9
17
9

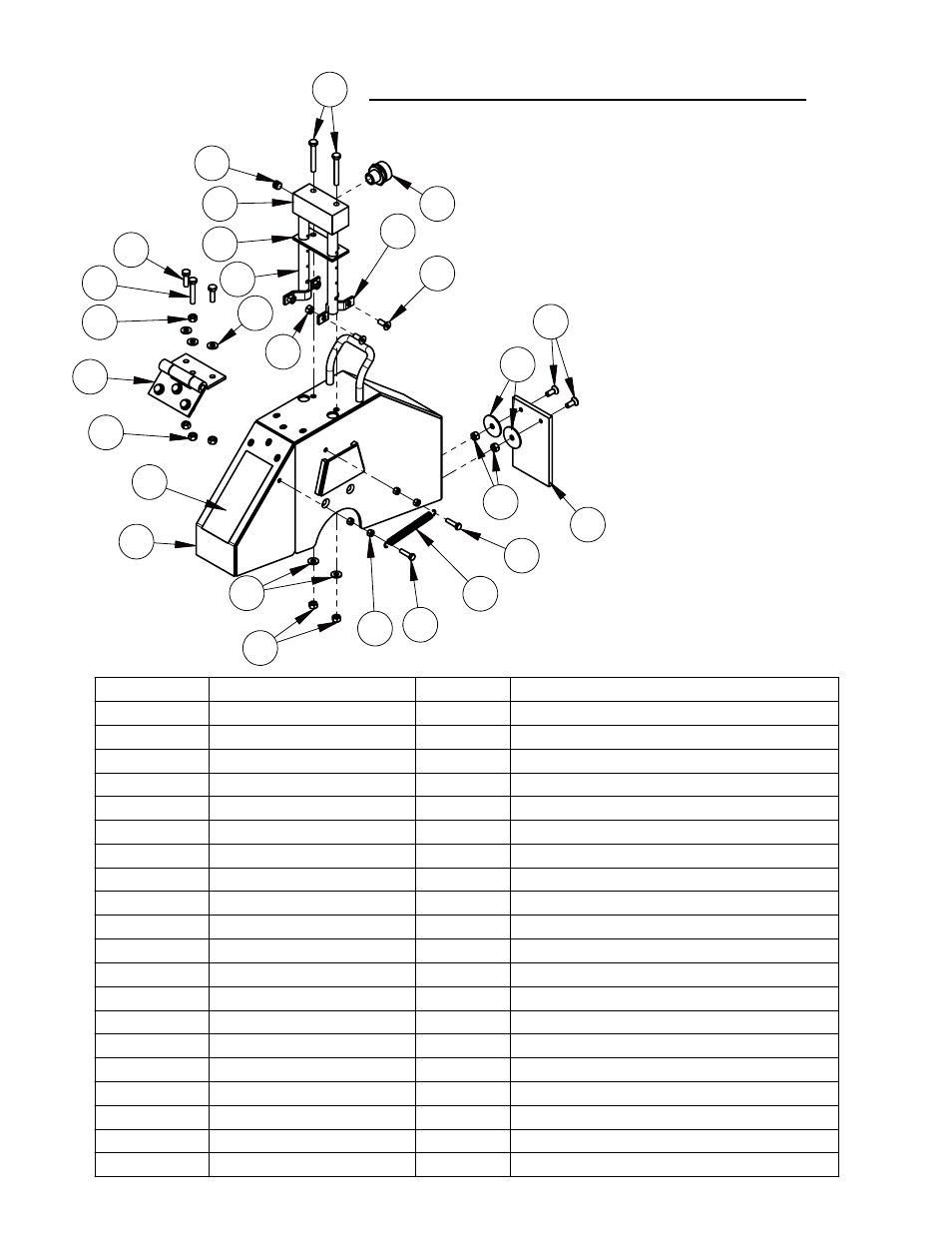

BLADE GUARD ASSEMBLY 14", #6049031
13
12
13
19
ITEM PART NO. QTY. DESCRIPTION
1 6049030 1 14" Blade Guard
2 2500270 1 Blade Guard Hinge
3 6048155 2 Water Tube Clamp
4 6048123 1 Water Manifold
5 2500829 1 Water Manifold Gasket
6 6048039 1 Splash Flap
7 2900310 5 Cap Screw, Hex Hd., M6 x 20mm
8 2900312 1 Cap Screw, Hex Hd., M6 x 35mm
9 2900302 15 Lock Nut, M6 Nylon
10 2900244 2 Cap Screw, Hex Hd., M6 x 45mm
11 2500066 1 Spring, 3/8 X .055 X 3"
12 2900301 4 Lock Nut, M5 Nylon
13 2900309 2 Cap Screw, Hex Hd., M5 x 20mm
14 6048283 2 Water Tube for 14" Guard
15 3200001 1 Plug, 1/8" NPT
16 3200002 1 Fitting, 3/4" M. Pipe to 3/4" M. Garden
17 2900016 8 Flat Washer, #10 USS
18 2900083 2 Fender Washer, 1/4" x 1-1/4"
19 2900308 6 Cap Screw, Flat Hd. Soc., M6 x 16mm
20 1800001 1 Warning Label
11
