1.0 Safety • Safety Labels and Locations • Clearance to Combustibles
Clearance to combustibles is defined as the minimum distance that must exist between the tube surface,
or reflector, and any combustible items (see Figure 1.1). It also pertains to the distance that must be
maintained from moving objects around the tube heater.
When installing the tube heater system, clearances to combustibles for your series tube heater and
configuration must be maintained. Refer to Chart 1.1 on the following page to determine the required
distances for your model.
The stated clearance to combustibles represents a surface temperature of 90ºF (32ºC) above room
temperature. Building materials with a low heat tolerance (such as plastics, vinyl siding, canvas,
tri-ply, etc.) may be subject to degradation at lower temperatures. It is the installer’s responsibility to
assure that adjacent materials are protected from degradation.

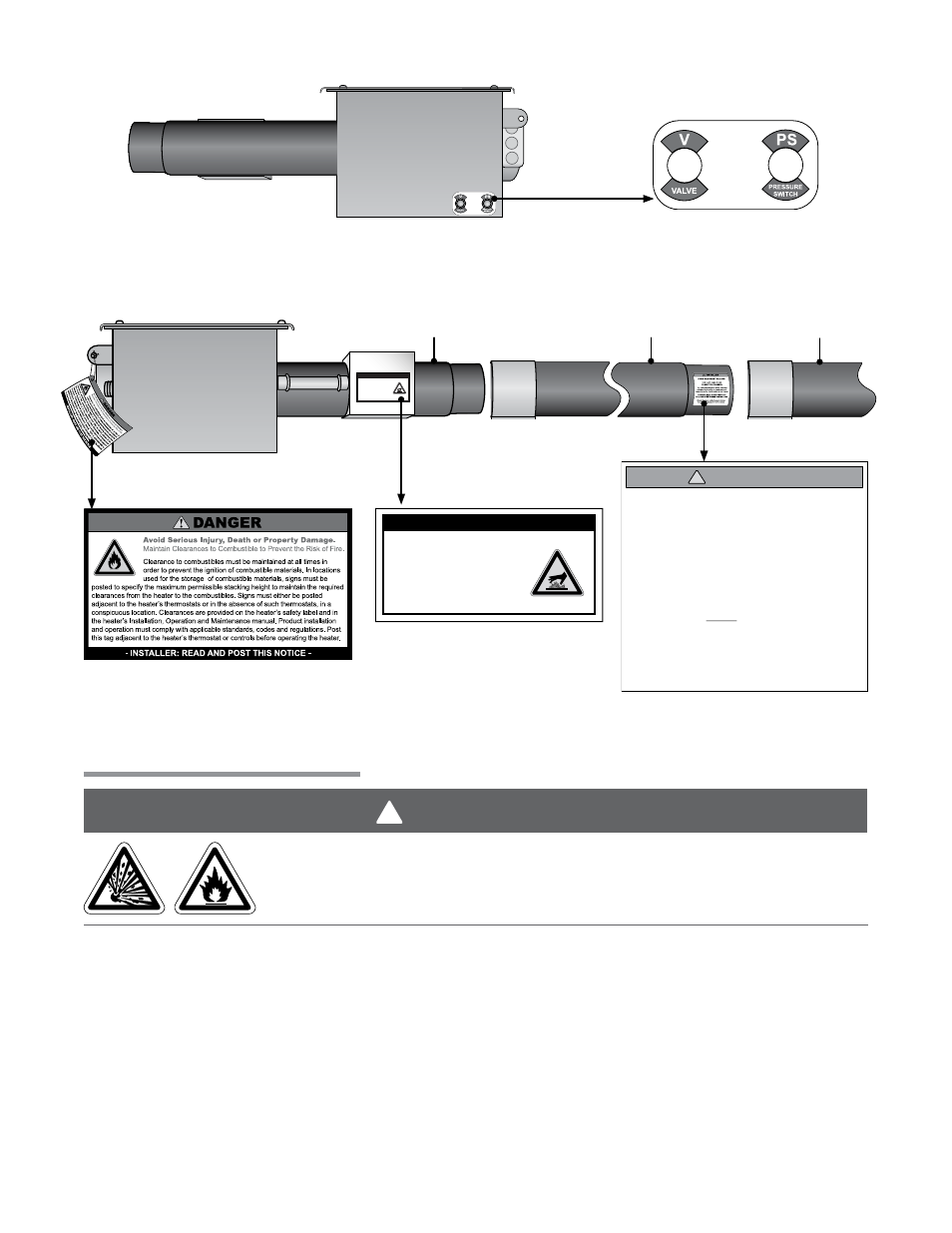

Clearance to Combustibles
DX2 Series
Right Panel
(Valve Compartment)
Radiant
Tube(s)
Primary Combustion
Chamber 16” Burner Tube
Left Panel
(Fan Compartment)
F/N: LLTB026
AVOID EQUIPMENT FAILURE
THIS 10 FT. TUBE IS THE
COMBUSTION CHAMBER.
THIS TUBE MUST BE THE FIRST TUBE
FOLLOWING THE BURNER CONTROL BOX.
! INSTALLER
The combustion chamber utilizes either 409
stainless, titanium alloy or aluminized steel -
depending on the model number of your heater.
Rotate the tube’s welded seam to bottom.
Consult the manual(s) for further details.
F/N: LLTB004 (orange)
F/N: LL01 - Clearance Safety Tag
(Affix adjacent to heater’s thermostat)
SERVICE ACCESS PANEL
IGNITER & FLAME SENSE COMPARTMENT
1. Turn off gas & electricity.
2. Remove cover by lifting top
cover upward and outward.
CAUTION: HOT SURFACE.
KEEP COVER IN PLACE. REMOVE FOR SERVICE ONLY.
