HL3 Series
Chart 5.1 • Parts List
5.0 Parts • Heater Components and Parts List
5.0 Parts

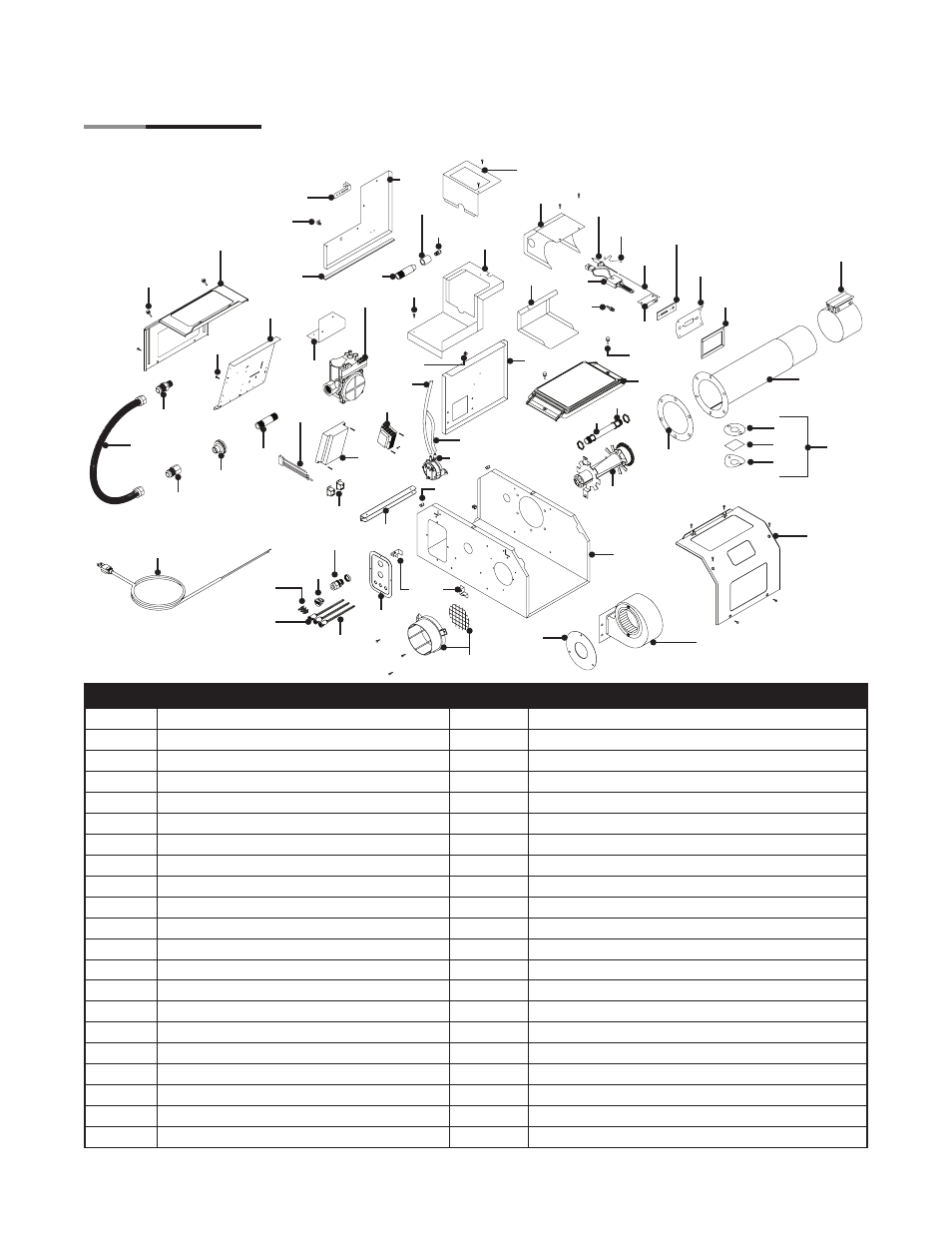

Figure 5.1 • Burner Assembly Components
* Optional upgrade or add-on item.
Part # Description Part # Description
TP-5 Flange Gasket TP-70 1/2 in. Control Box Gasket (10.3 inches)
TP-9 Conduit Coupling TP-70A 1 in. Control Box Gasket (6 inches)
TP-10A Conduit 4” x 3/4” TP-76 Rubber Grommet
TP-14 Sight Glass Gasket TP-82 Reflector Center Support (RCS)
TP-15 Sight Glass TP-83 24 in. Stainless Steel Flexible Gas Connector
TP-16 Sight Glass Washer TP-84 1/2 in. Female / Male Flare Fitting
TP-17 Sight Glass Kit TP-85 1/2 in. Male / Male Flare Fitting
TP-19B 4 in. Wire Hanger with Tension Spring TP-105 Aluminum Reflector End Cap
TP-20C 120 in. Aluminum Reflector TP-106 Reflector End Cap Clips (8 pcs.)
TP-20D* 120 in. Stainless Steel Reflector TP-113 Reflector Tension Spring
TP-21B 4 in. Standard Tube Clamp TP-201B V.3 Mid-High Burner (Color Code - TAN)
TP-25 1/4 in. Female Spade Terminal (Qty. 3) TP-204 Gas Orifice (consult factory)
TP-26A 10 ft. Aluminized Radiant / Combustion Tube TP-205 Glo-Bar ™ Holder
TP-26B 10 ft. Titanium Coated Combustion Tube TP-206 Glo-Bar ™ Holder Spring Clip
TP-26D* 10 ft. 304 Stainless Steel Radiant Tube TP-212 1/2” x 3” Pipe Nipple
TP-26E* 10 ft. 409 Stainless Steel Combustion Tube TP-217 Brass Pressure Switch Barb Fitting
TP-31D Interlocking Mounting Bracket (Qty. 2) TP-219 Differential Vinyl Sensing Tube (burner)
TP-50 Glo-Bar ™ Igniter TP-220 Stainless Steel Tube Clamp (150 & 200 MBH)
TP-55A 1/20 hp Inducer Assembly (50-150 MBH) TP-221 Glo-Bar ™ Holder Gasket
TP-65I 36 in. Interlocking Turbulator Baffle TP-222 Flame Rod
TP-68B Large Strain Relief Bushing TP-222A Flame Rod Wire
