6
ENGLISH
3.2 Radio

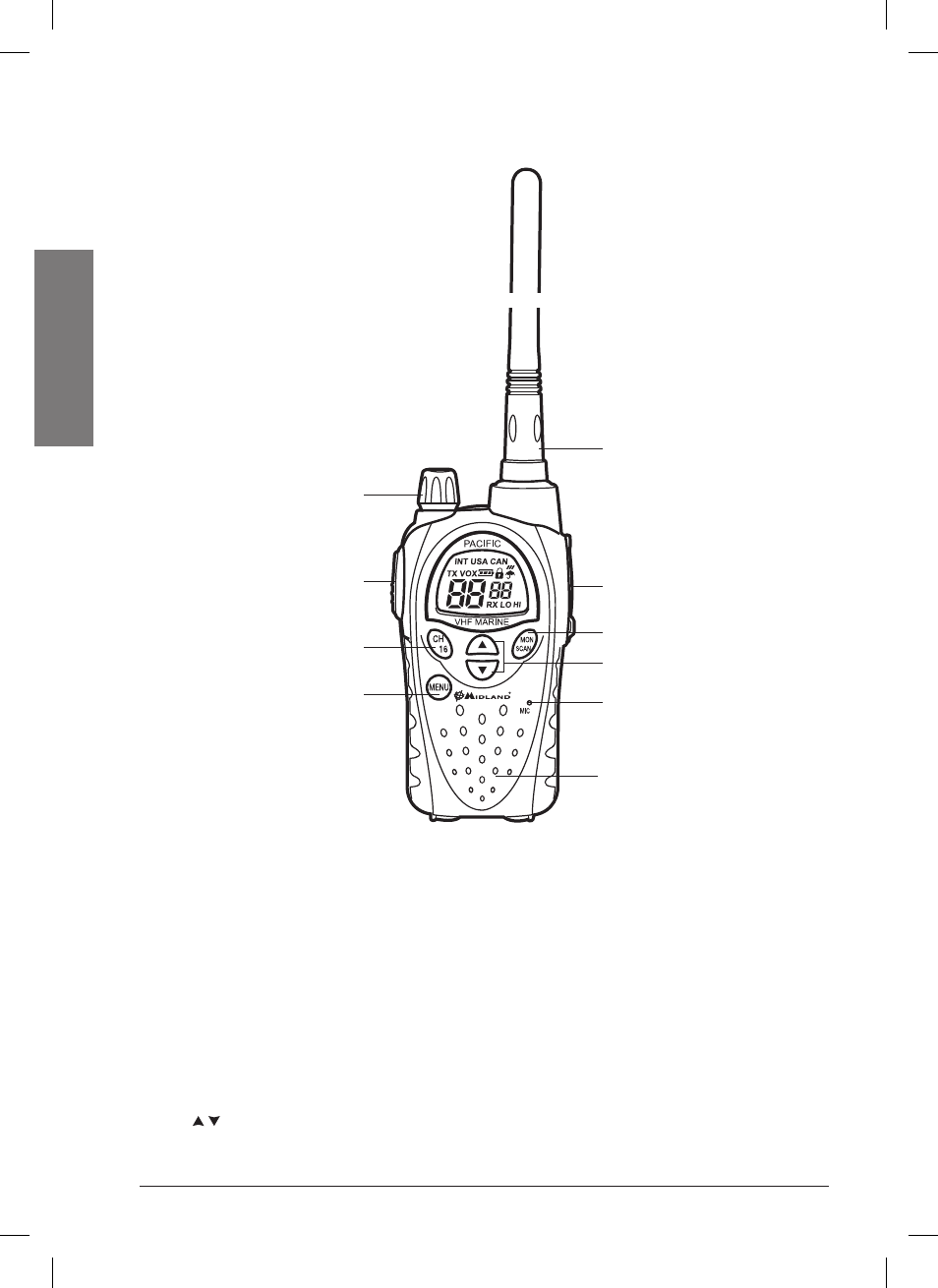

Refer to the following images to identify the various parts of the device:
1. VOLUME control - On/off switch for the device and adjusts VOLUME of reception.
2. PTT (press to talk) - Press this button to switch to transmission
3. Button ‘16’ - Press this button to instantly recall channel 16.
4. Built-in MICROPHONE - Here is where sound is picked up by the microphone.
5. Built-in SPEAKER - Here is where the speaker is housed.
6. ANTENNA - Receives and transmits radio signals.
7. MIC/CHG Socket (under protective cover) - To connect to external audio devices
(headphones, microphone etc.) and to the battery charger.
8. MENU button - Press this button to display the device’s MENU.
9. MONITOR/SCAN button - Press this button once to activate SCAN (scanning of channels).
Keep the same button pressed for about 2 seconds to activate MON function. This function
temporarily cuts off Squelch (for weak signals)
10. / buttons - Press these buttons to select channel number and to change setting within
the MENU.
a
b
c
d
e
f
i
g
e
h
e1
1
2
3
8
9
10
4
6
7
5
a
b
c
d
e
f
i
g
e
h
e1
1
2
3
8
9
10
4
6
7
5
